3.1.13-121 3.1.13-121Electronic Control System - ME7
A. Turn the ignition switch to position "LOCK".
B. Disconnect the battery negative cable.
C. Disconnect the intake pressure temperature sensor
wiring harness connector E12.
D. Disconnect the ECM wiring harness connector E01.
E. Measure the resistance between terminal 3 of
intake pressure temperature sensor connector E12
and terminal 33 of ECM wring harness connector
E01.
Standard Resistance Value: less than 5 Ω
F. Measure the resistance between the terminal 3 of
intake pressure temperature sensor wiring harness
connector E12 and reliable grounding.
Standard Resistance Value: 10 MΩ or more
G. Measure the voltage between the terminal 3 of
intake pressure temperature sensor wiring harness
connector E12 and the reliable grounding.
Standard Voltage Value: 0 V
Are the resistance and voltage above normal?
Y
Go to step 5.
N
Repair the fault circuit, inspect the system for nor-
mal working.

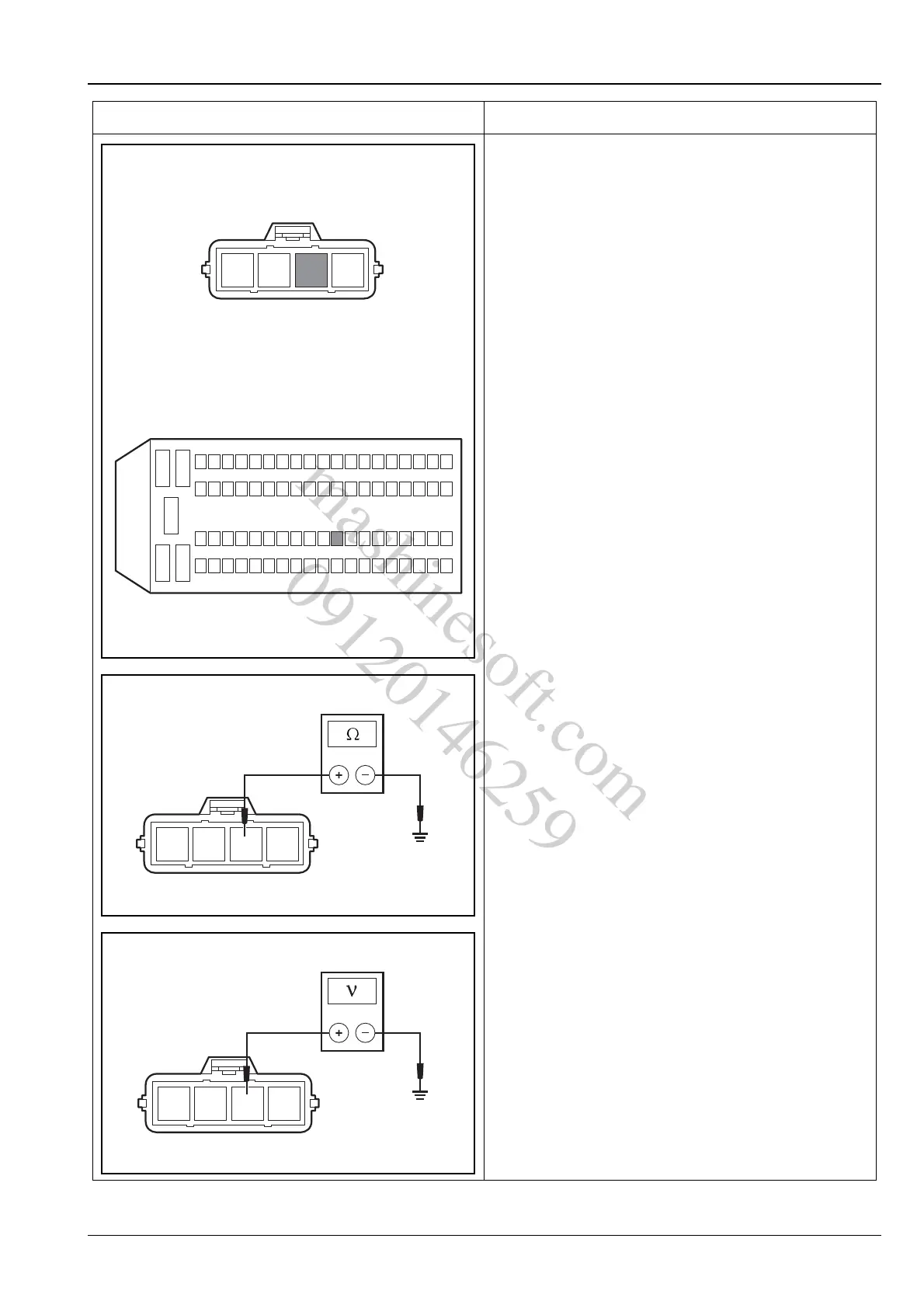

Test Conditions Details/Results/Actions
E01
123 4
E12
12
3
45
624
25
33
43
4462
6381
A3113052
123 4
E12
A3113053
123 4
E12
A3113051
