Fan High Speed Relay, Low Speed
Relay
Fan high speed, low speed operation are con-
trolled by the two relays ER01 and ER02, ECM
controls the work of the two relays to achieve the
high speed, and low speed operation.
A/C Compressor Relay
A/C compressor relay is located in the engine
compartment electric center. ECM controls the
relay operation and realizes A/C compressor
operation control according to A/C opening sig-
nal, refrigerant pressure switch and engine condi-
tion.

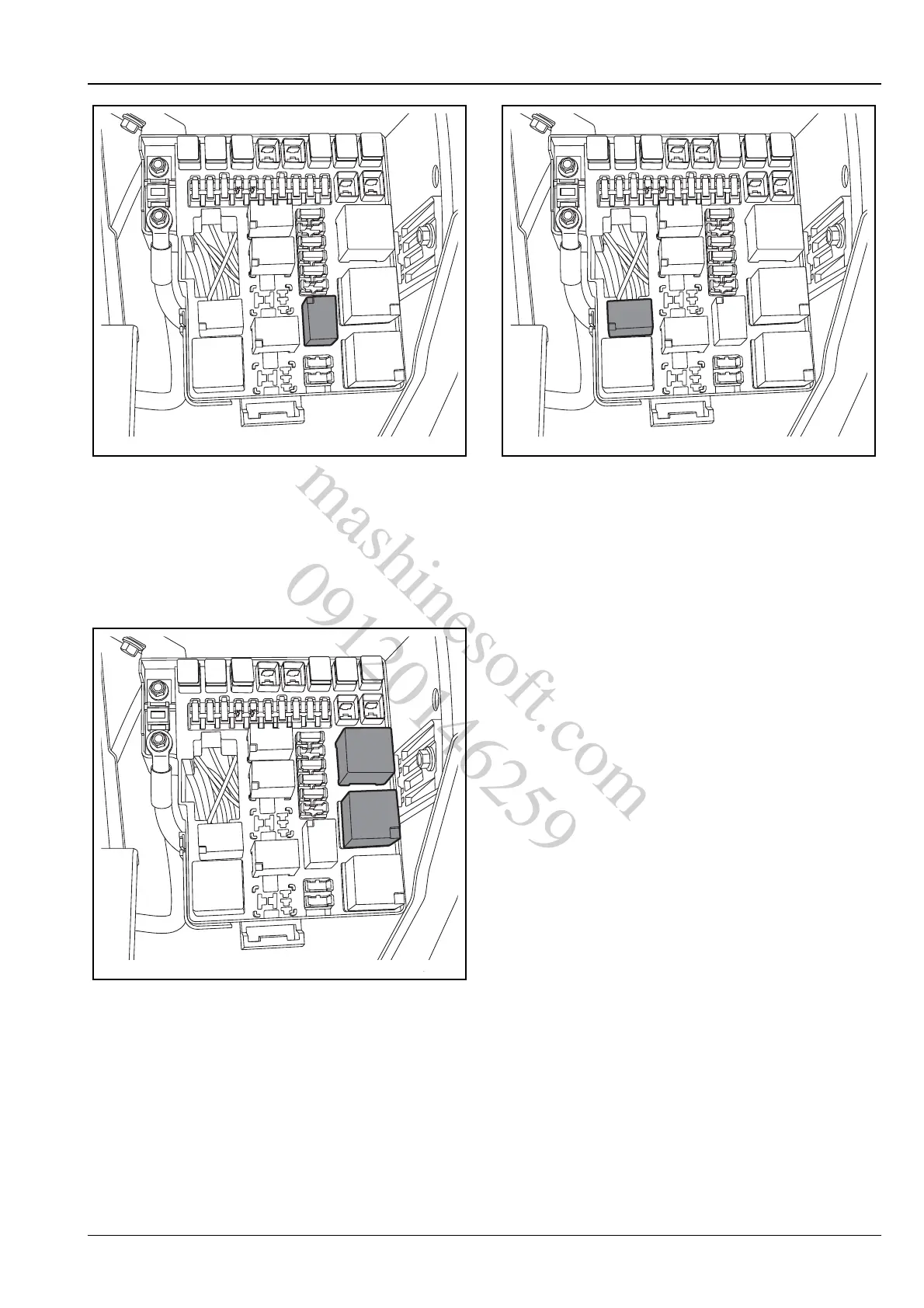

A3113019
