Changan CS35 User Manual

3.1.13-112
CS35 2013.04
3.1.13-112Electronic Control System - ME7

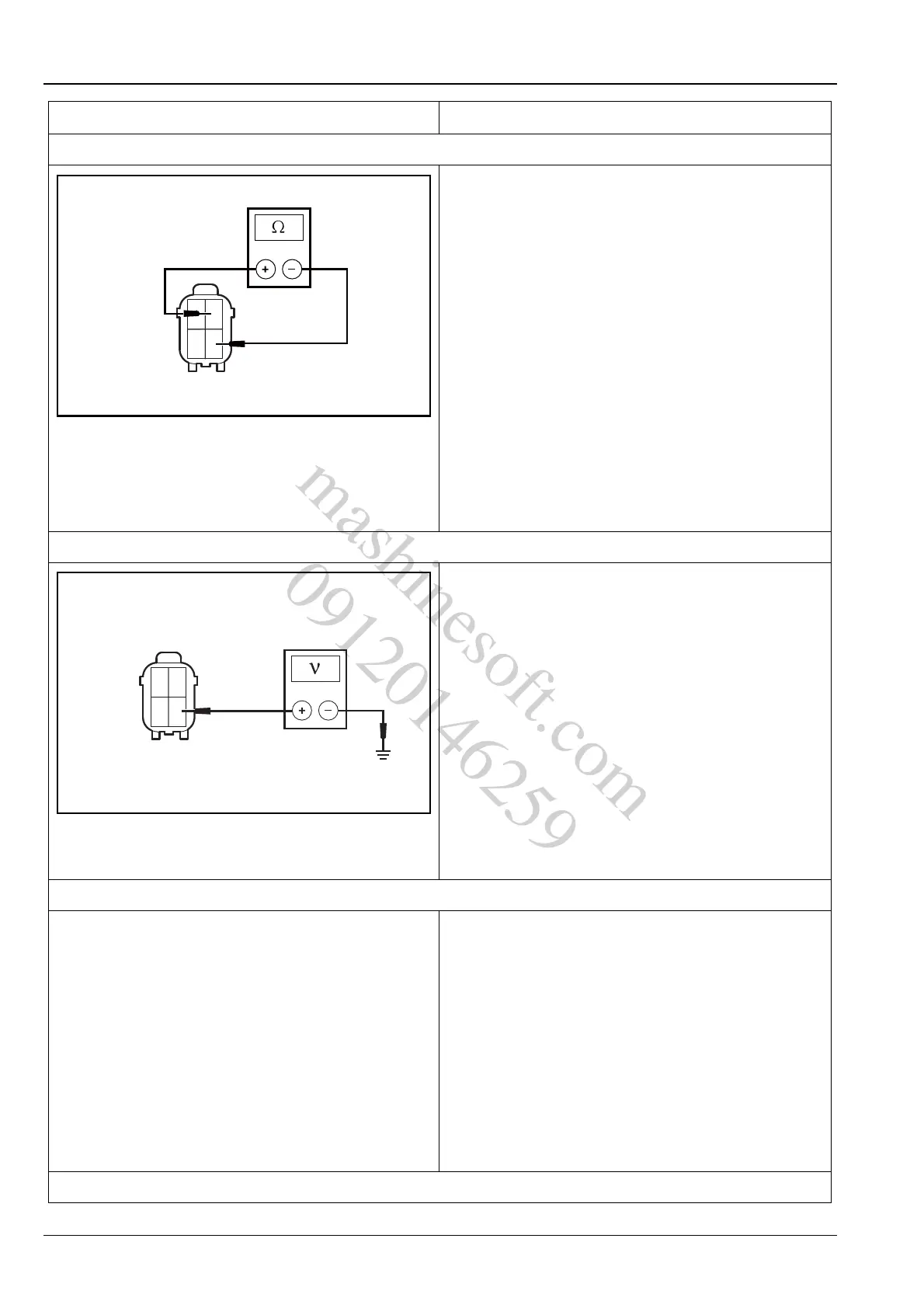

2. Inspect the pre - catalytic oxygen sensor heater resistance value
A. Turn the ignition switch to position "LOCK".
B. Disconnect the pre - catalytic oxygen sensor wiring
harness connector E05.
C. Measure the resistance of the heater that between
terminal 2 and terminal 4 of pre - catalytic oxygen
sensor wiring harness connector E05.
Standard Resistance Value: 20 ℃ (68ºF) 1 ~ 6 Ω
Is the resistance value normal?
Y
Go to step 3.
N
Replace the pre - catalytic oxygen sensor.
Refer to: Pre - Catalytic Oxygen Sensor
(3.1.13 Electronic Control System - ME7,
Removal and Installation).
3. Inspect the heater working voltage
A. Turn the ignition switch to "LOCK" position.
B. Disconnect the pre - catalytic oxygen sensor wiring
harness connector E05.
C. Turn the ignition switch to position "ON".
D. Measure the voltage between the terminal 4 of post
- catalytic oxygen sensor wiring harness connector
E05 and the reliable grounding.
Standard Voltage Value: 11 ~ 14 V
Is voltage normal?
Y
Go to step 5.
N
Go to step 4.
4. Inspect the the heater power supply circuit
A. Remove the fuse EF23 of the eengine compartment
fuse and relay box C01.
B. Inspect the fuse.
Is the fuse normal?
Y
Repair the circuit from terminal 4 of pre - catalytic
oxygen sensor wiring harness connector E05 to ter-
minal 45 of the engine compartment electric center
C01 fuse EF23.
N
Replace the fuse.
5. Inspect the heater control signal circuit
Test Conditions Details/Results/Actions
12
34
E05
A3113041
12
34
E05
A3113042
