3.1.13-113 3.1.13-113Electronic Control System - ME7
A. Turn the ignition switch to position "LOCK".
B. Disconnect the ECM wiring harness connector E01.
C. Disconnect the pre - catalytic oxygen sensor wiring
harness connector E05.
D. Measure the resistance between the terminal 2 of
pre - catalytic oxygen sensor wiring harness
connector E05 and the terminal 26 of ECM wiring
harness connector E01.
Standard Resistance Value: less than 5 Ω
E. Measure the voltage between the terminal 2 of pre -
catalytic oxygen sensor wiring harness connector
E05 and the reliable power supply.
Standard Voltage Value: 0 V
F. Measure the resistance between the terminal 2 of
pre - catalytic oxygen sensor wiring harness
connector E05 and the reliable grounding.
Standard Resistance Value: 10 MΩ or more
Is it normal?
Y
Go to step 6.
N
Repair the circuit faults between the terminal 2 of
pre - catalytic oxygen sensor wiring harness con-
nector E05 and the terminal 26 of ECM wiring har-
ness connector E01.

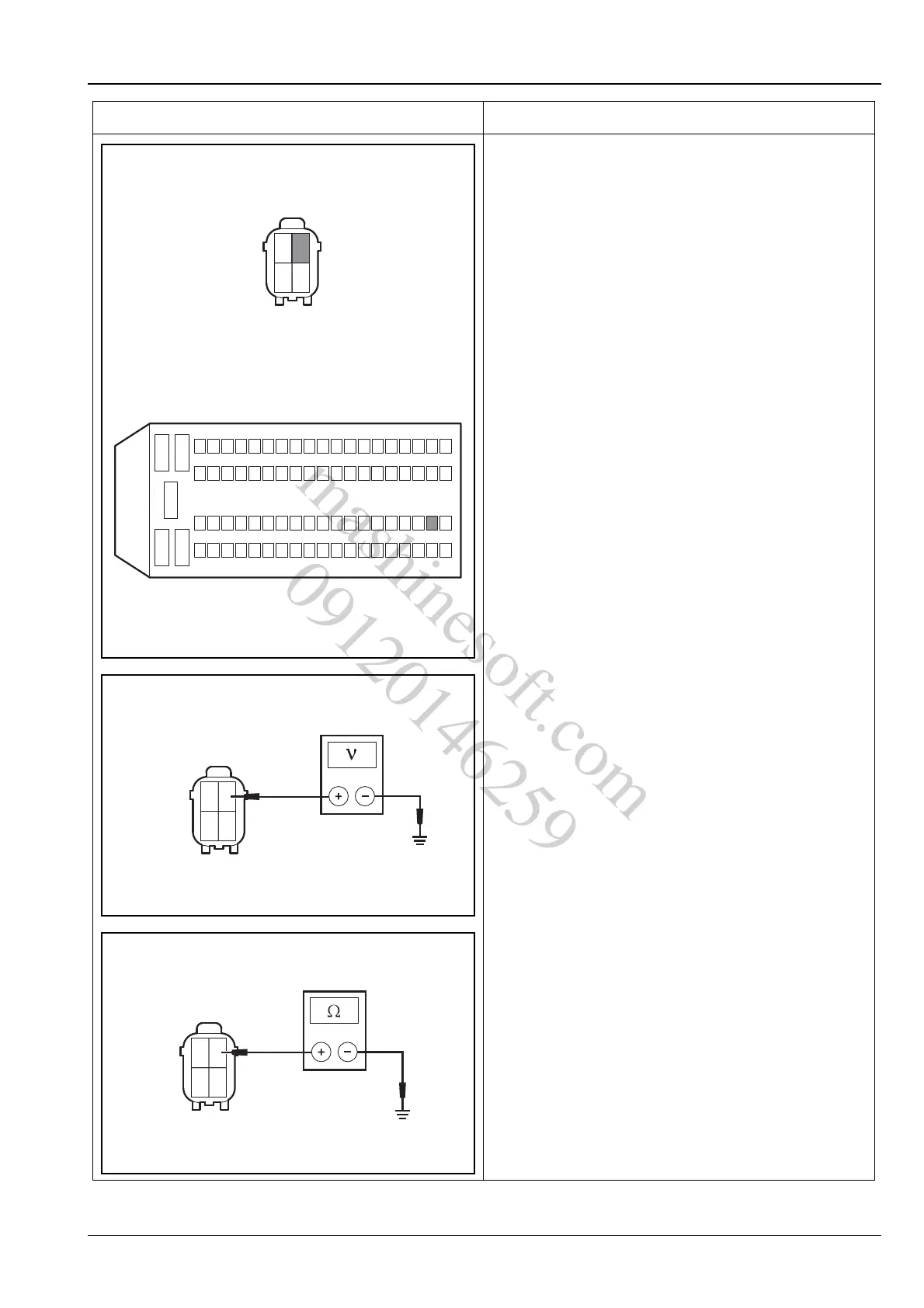

Test Conditions Details/Results/Actions
E01
12
34
E05
12
3
45
624
25
26
43
4462
6381
A3113043
12
34
E05
A3113044
12
34
E05
A3113045
