6. Inspect the ECM ground circuit
A. Turn the ignition switch to position "LOCK".
B. Measure from the back of ECM wiring harness
connector E01.
C. Measure the resistance between the ECM wiring
harness connector E01 terminal 3, 51, 53, 61 and
80 and the reliable grounding with a multimeter.
Standard Resistance Value: less than 5 Ω
Is the resistance value normal?
Y
Replace the engine control module.
Refer to: Engine Control Module (3.1.13
Electronic Control System - ME7, Removal
and Installation).
N
Inspect and repair the ECM ground circuit.
Test Conditions Details/Results/Actions
12
3
45
6
51
53
61
80
24
2543
4462
6381

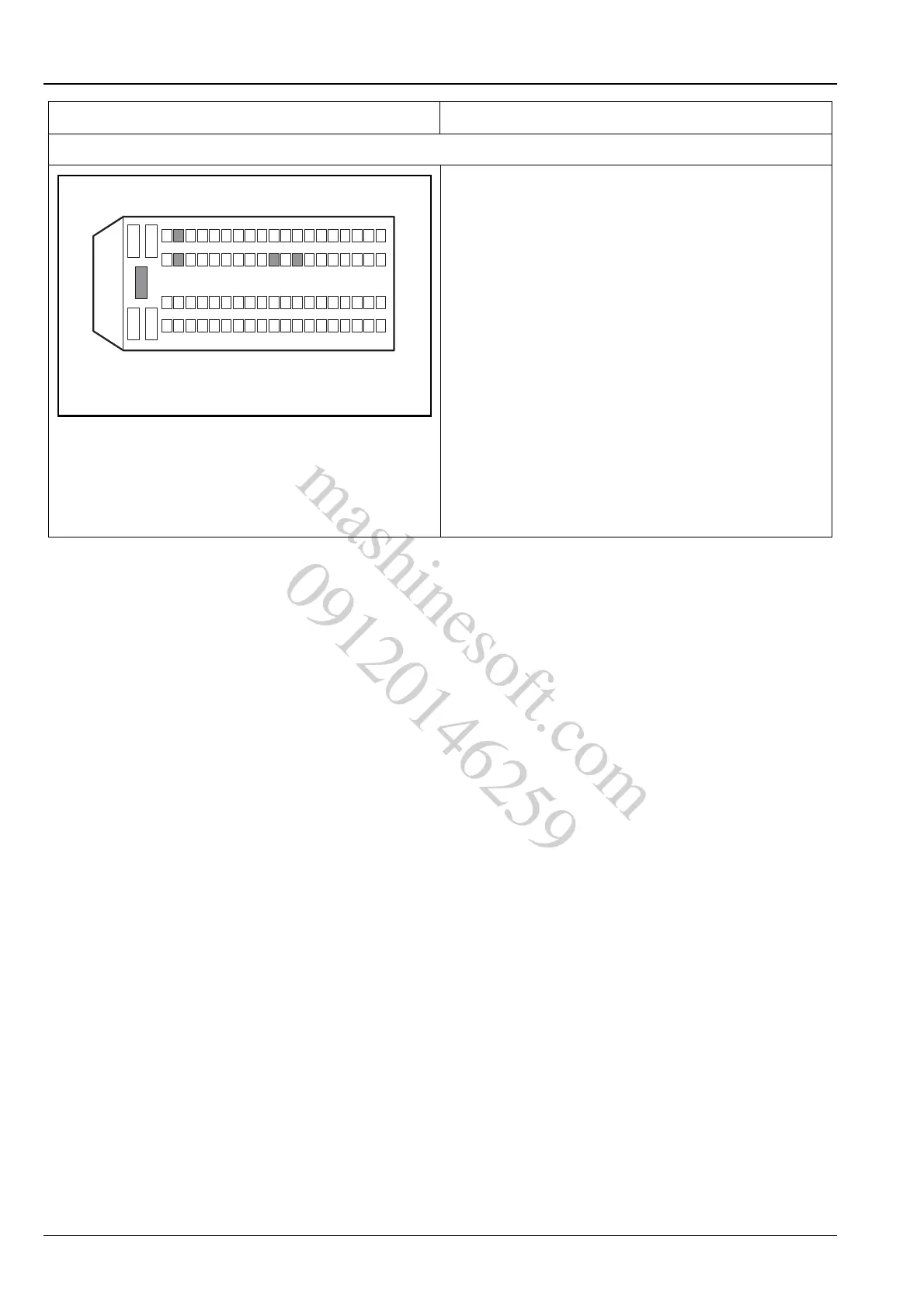

E01
A3113032
