CS35 2013.04
3.1.13-117 3.1.13-117Electronic Control System - ME7
A. Turn the ignition switch to position "LOCK".
B. Disconnect the ECM wiring harness connector E01.
C. Disconnect the post - catalytic oxygen sensor wiring
harness connector E08.
D. Measure the resistance between the terminal 2 of
post - catalytic oxygen sensor wiring harness
connector E08 and the terminal 25 of ECM wiring
harness connector E01.
Standard Resistance Value: less than 5
E. Measure the voltage between the terminal 2 of post
- catalytic oxygen sensor wiring harness connector
E08 and the reliable power supply.
Standard Voltage Value: 0 V
F. Measure the resistance between the terminal 2 of
post - catalytic oxygen sensor wiring harness
connector E08 and the reliable grounding.
Standard Resistance Value: 10 M or more
Is it normal?
Y
Go to step 6.
N
Repair the circuit faults between the terminal 2 of
post - catalytic oxygen sensor wiring harness con-
nector E08 and the terminal 25 of ECM wiring har-
ness connector E01.

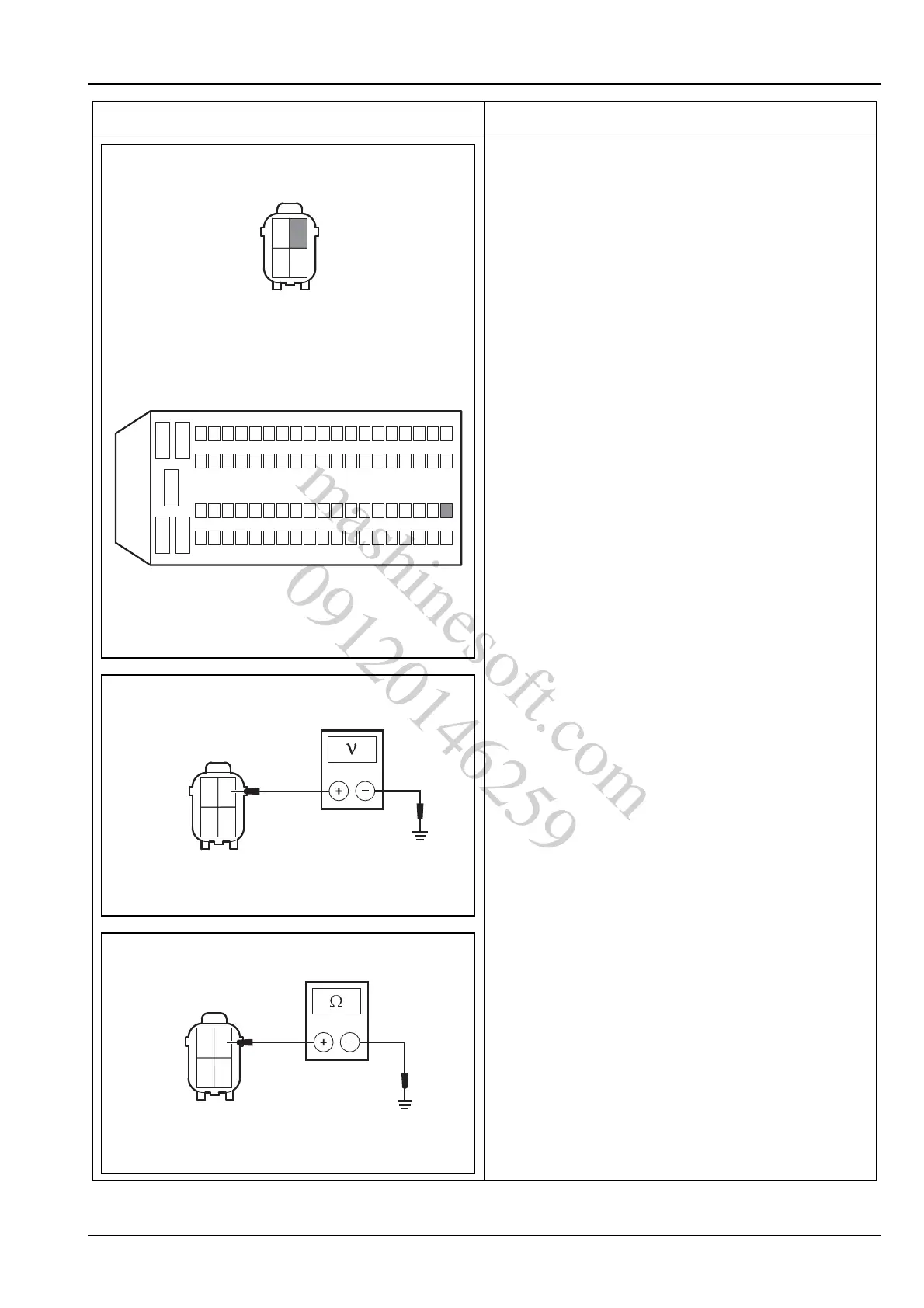

Test Conditions Details/Results/Actions
E01
12
34
E08
12
3
45
624
2543
4462
6381
A3113048
12
34
E08
A3113049
12
34
E08
A3113050
