3.1.13-130
CS35 2013.04
3.1.13-130Electronic Control System - ME7

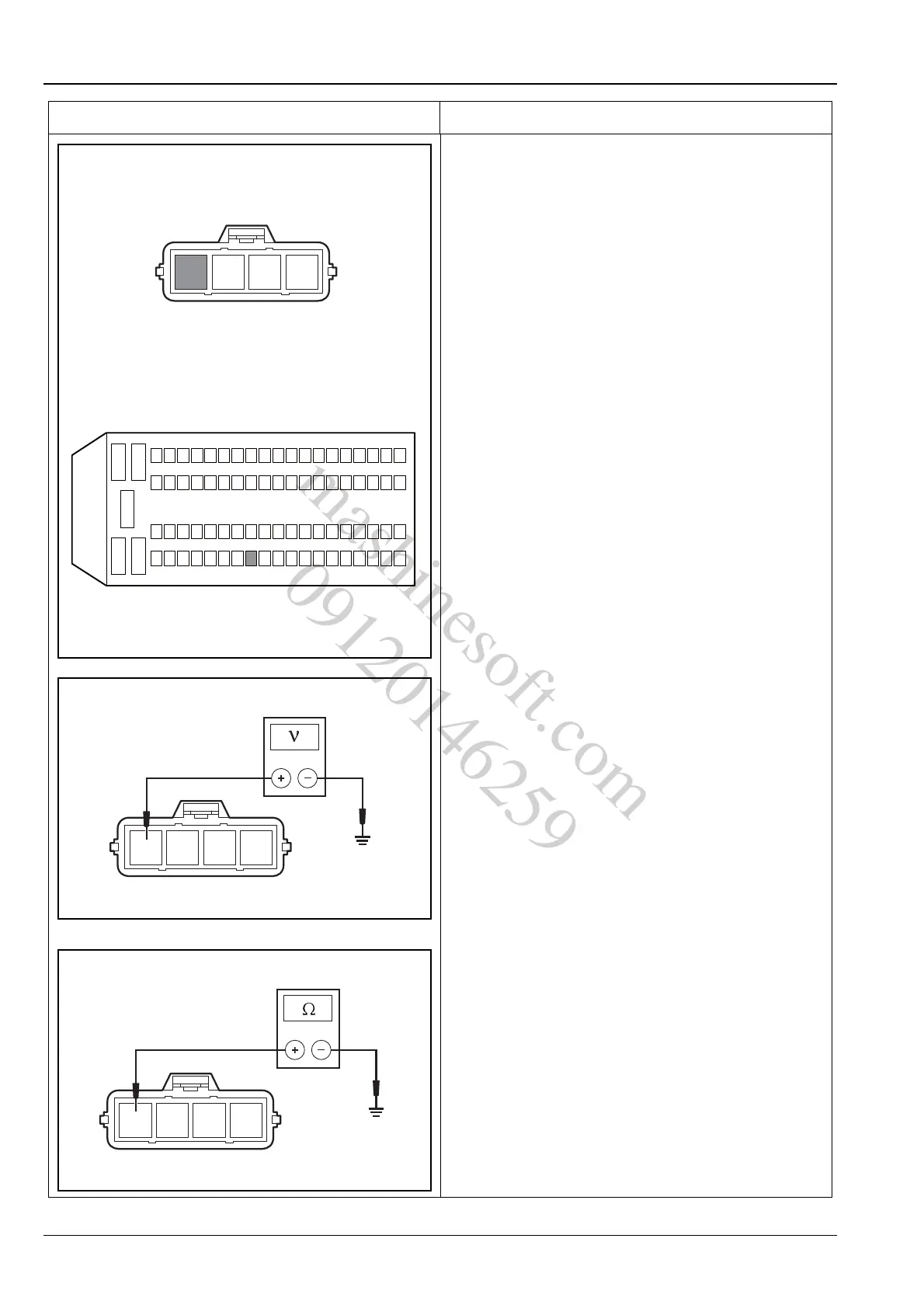

A. Turn the ignition switch to position "LOCK".
B. Disconnect the battery negative cable.
C. Disconnect the intake pressure temperature sensor
wiring harness connector E12.
D. Disconnect the ECM wiring harness connector E01.
E. Measure the resistance between terminal 1 of
intake pressure temperature sensor wiring harness
connector E12 and terminal 17 of ECM wiring
harness connector E01.
Standard Resistance Value: less than 5
F. Measure the voltage between the terminal 1 of
intake pressure temperature sensor wiring harness
connector E12 and the reliable grounding.
Standard Voltage Value: 0 V
G. Measure the resistance value between the terminal
1 of intake pressure temperature sensor wiring
harness connector E12 and reliable grounding.
Standard Resistance Value: less than 5
Are the resistance and voltage normal?
Y
Go to step 5.
N
Repair the fault circuit.
Test Conditions Details/Results/Actions
E01
12
3
45
624
2543
4462
63
17
81
123 4
E12
A3113133
123 4
E12
A3113056
123 4
E12
A3113054
