Changan CS35 User Manual

3.1.13-138
CS35 2013.04
3.1.13-138Electronic Control System - ME7
3. Diagnosis Procedures
Test Conditions Details/Results/Actions
1. General inspection
A. Inspect the sensor wiring harness connector for
loose signs.
B. Inspect the sensor appearance for damage.
Is it normal?
Y
Go to step 2.
N
Repair the fault.
2. Inspect the throttle position sensor signal voltage
A. Turn the ignition switch to position "ON".
B. Measure the voltage value at terminal 6 of throttle
position sensor wiring harness connector E23 from
the back, it should be a continuously changing
analog signal.
Standard Voltage Value:
Do not depress the accelerator pedal 0.74 V
Step on the accelerator pepal in the end 4.62 V
Is the voltage value normal?
Y
Go to step 3.
N
Replace the throttle position sensor.
3. Inspect the throttle position sensor power supply circuit
A. Turn the ignition switch to position "LOCK".
B. Disconnect the throttle position sensor wiring
harness connector E23.
C. The ignition switch is set to position "ON".
D. Measure the voltage between the terminal 3 of
throttle position sensor wiring harness connector
E23 and reliable grounding.
Standard Voltage Value: 4.5 ~ 5.5 V
Is the voltage value normal?
Y
Go to step 4.
N
Repair the fault circuit between terminal 3 of throttle
position sensor wiring harness connector E23 and
terminal 32 of ECM wiring harness connector E01.
1
4
3
6

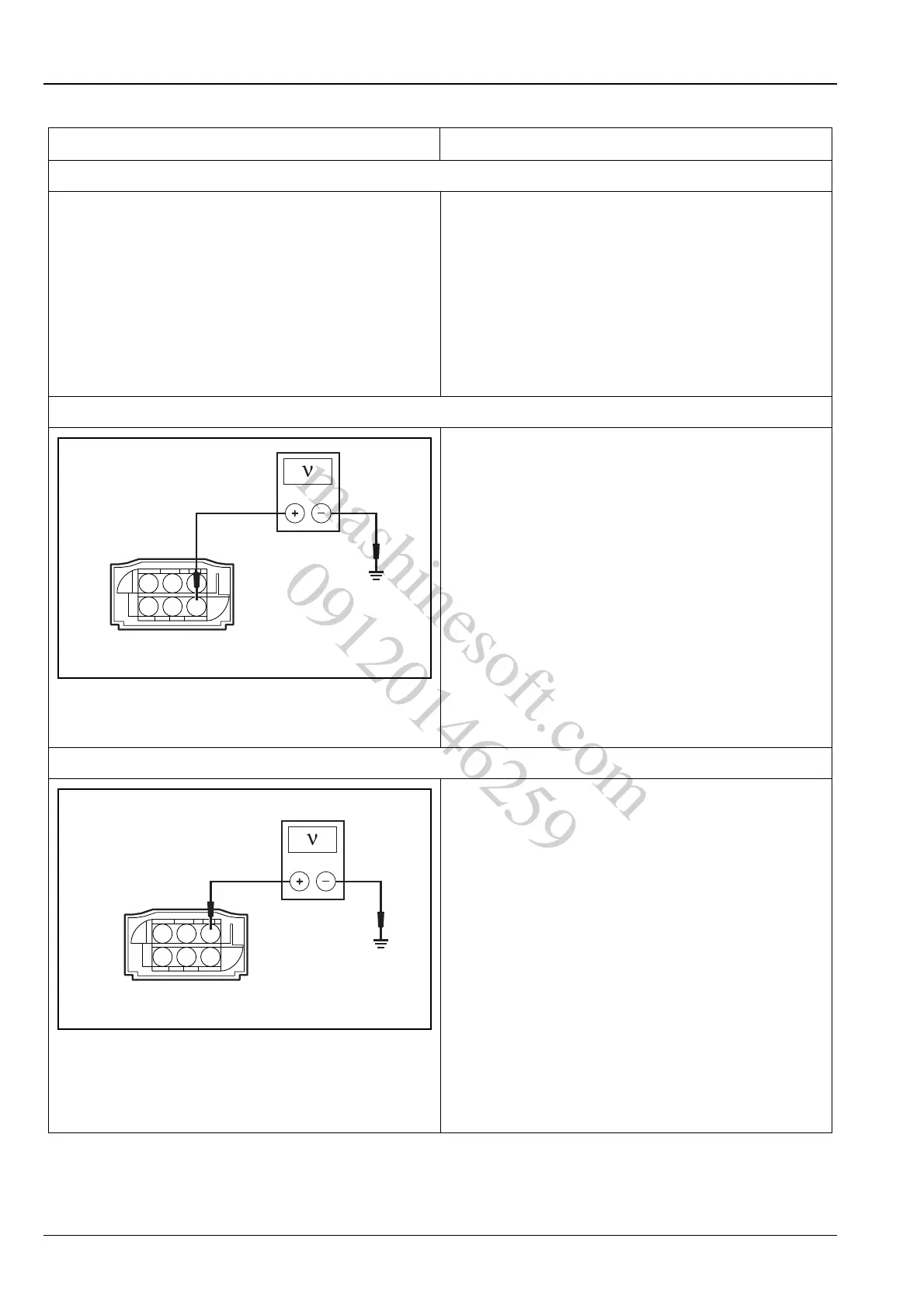

E23
A3113067
1
4
3
6
E23
A3113068
