3.1.13-149 3.1.13-149Electronic Control System - ME7
A. Turn the ignition switch to position "LOCK".
B. Disconnect the pre - catalytic oxygen sensor wiring
harness connector E05.
C. Disconnect the ECM wiring harness connector E01.
D. Measure the resistance between the terminal 1 of
pre - catalytic oxygen sensor wiring harness
connector E05 and the terminal 18 of ECM wiring
harness connector E01.
Standard Resistance Value: less than 5 Ω
E. Measure the resistance between the terminal 1 of
pre - catalytic oxygen sensor wiring harness
connector E05 and the reliable grounding.
Standard Resistance Value: less than 5 Ω
F. Measure the voltage between the terminal 1 of pre -
catalytic oxygen sensor wiring harness connector
E05 and the reliable grounding.
Standard Voltage Value: 0 V
Is it normal?
Y
Go to step 5.
N
Repair the circuit faults between the terminal 1 of
pre - catalytic oxygen sensor wiring harness con-
nector E05 and the terminal 18 of ECM wiring har-
ness connector E01.

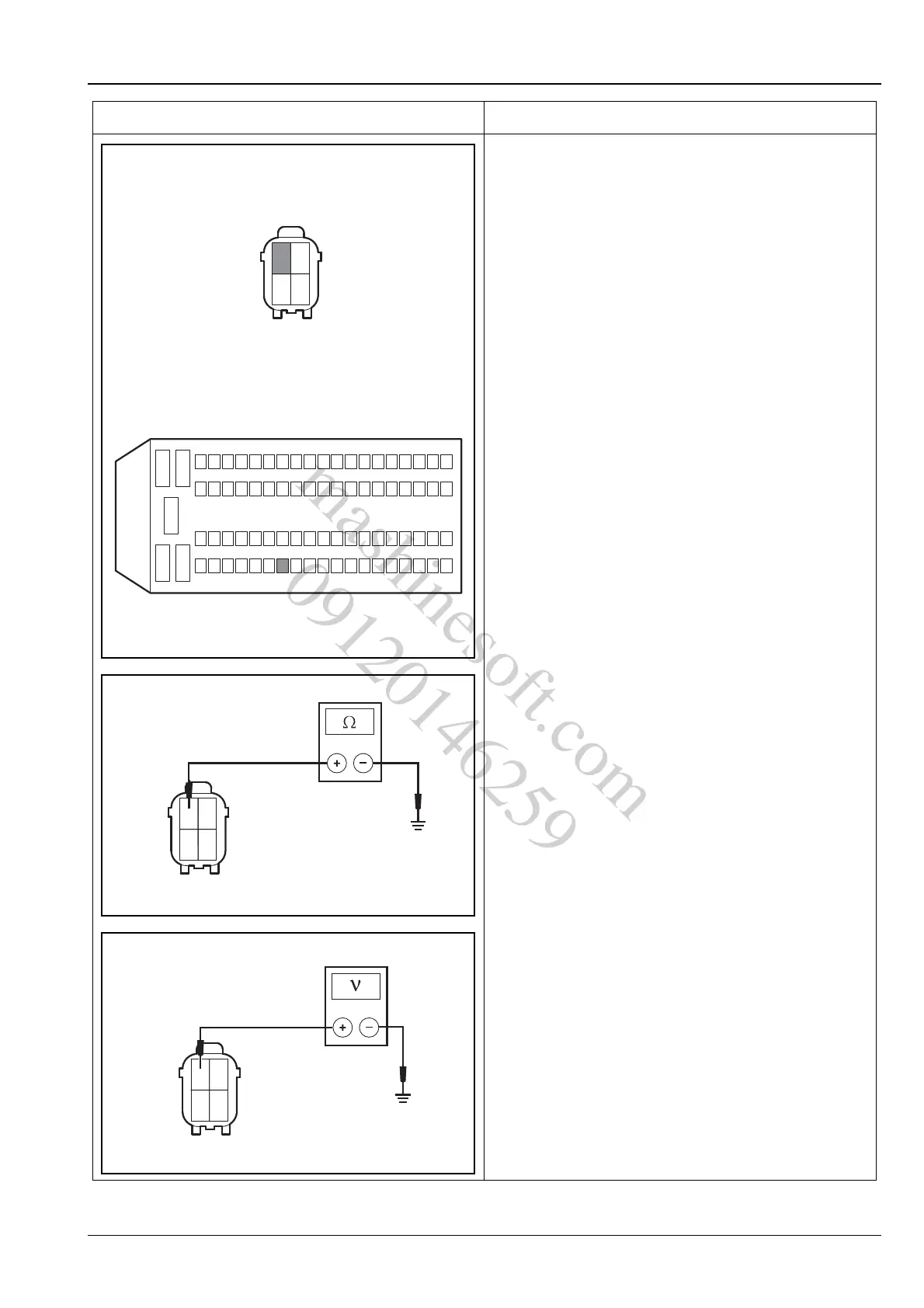

Test Conditions Details/Results/Actions
E01
E05
12
34
18
12
3
45
624
2543
4462
6381
A3113073
E05
12
34
A3113074
E05
12
34
A3113075
