3.1.13-155 3.1.13-155Electronic Control System - ME7
A. Turn the ignition switch to position "LOCK".
B. Disconnect the post - catalytic oxygen sensor wiring
harness connector E08.
C. Disconnect the ECM wiring harness connector E01.
D. Measure the resistance between the terminal 1 of
post - catalytic oxygen sensor wiring harness
connector E08 and the terminal 55 of ECM wiring
harness connector E01.
Standard Resistance Value: less than 5 Ω
E. Measure the resistance between the terminal 1 of
post - catalytic oxygen sensor wiring harness
connector E08 and the reliable grounding.
Standard Resistance Value: 10 MΩ or more
F. Measure the voltage between the terminal 1 of post
- catalytic oxygen sensor wiring harness connector
E08 and the reliable grounding.
Standard Voltage Value: 0 V
Is it normal?
Y
Go to step 5.
N
Repair the circuit faults between the terminal 1 of
post - catalytic oxygen sensor wiring harness con-
nector E08 and the terminal 55 of ECM wiring har-
ness connector E01.

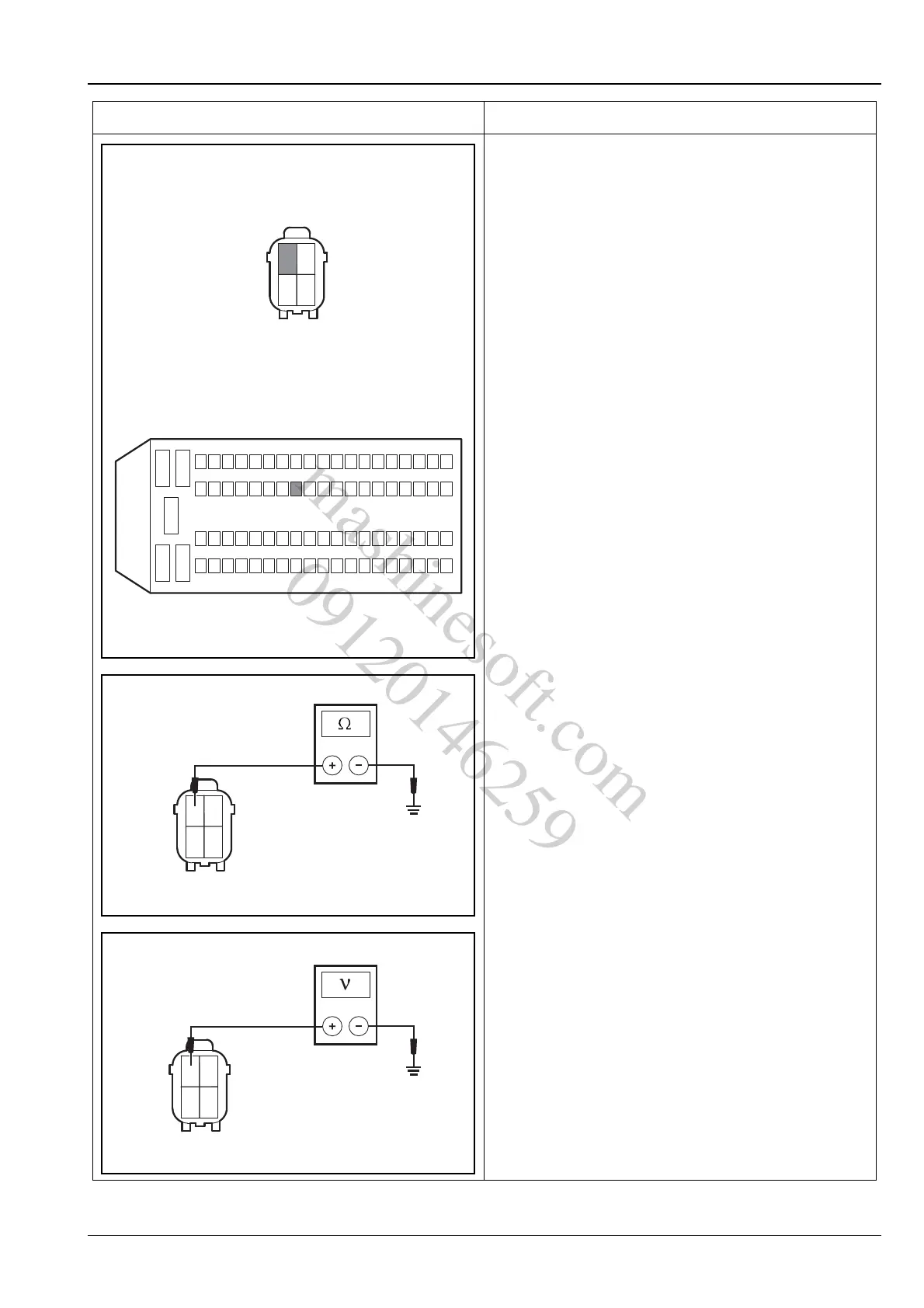

Test Conditions Details/Results/Actions
E01
E08
12
34
12
3
45
624
2543
44
55
62
6381
A3113037
E08
12
34
A3113078
E08
12
34
A3113079
