3.1.13-162Electronic Control System - ME7
A. Turn the ignition switch to position "LOCK".
B. Disconnect the pre - catalytic oxygen sensor wiring
harness connector E05.
C. Disconnect the ECM wiring harness connector E01.
D. Measure the resistance value between the pre -
catalytic oxygen sensor wiring harness connector
E05 terminal 1 and the ECM wiring harness
connector E01 terminal 18. Inspect the circuit for
open circuit.
Standard Resistance Value: less than 5 Ω
E. Measure the resistance value between the pre -
catalytic oxygen sensor wiring harness connector
E05 terminal 1 and the reliable grounding. Inspect
the circuit for short circuit to ground.
Standard Resistance Value: 10 MΩ or more
F. Measure the voltage value between the pre -
catalytic oxygen sensor wiring harness connector
E05 terminal 1 and the reliable grounding. Inspect
the circuit for supply short circuit to power.
Standard Voltage Value: 0 V
Is it normal?
Y
Go to step 7.
N
Repair the circuit faults between the terminal 1 of
pre - catalytic oxygen sensor wiring harness con-
nector E05 and the terminal 18 of ECM wiring har-
ness connector E01.

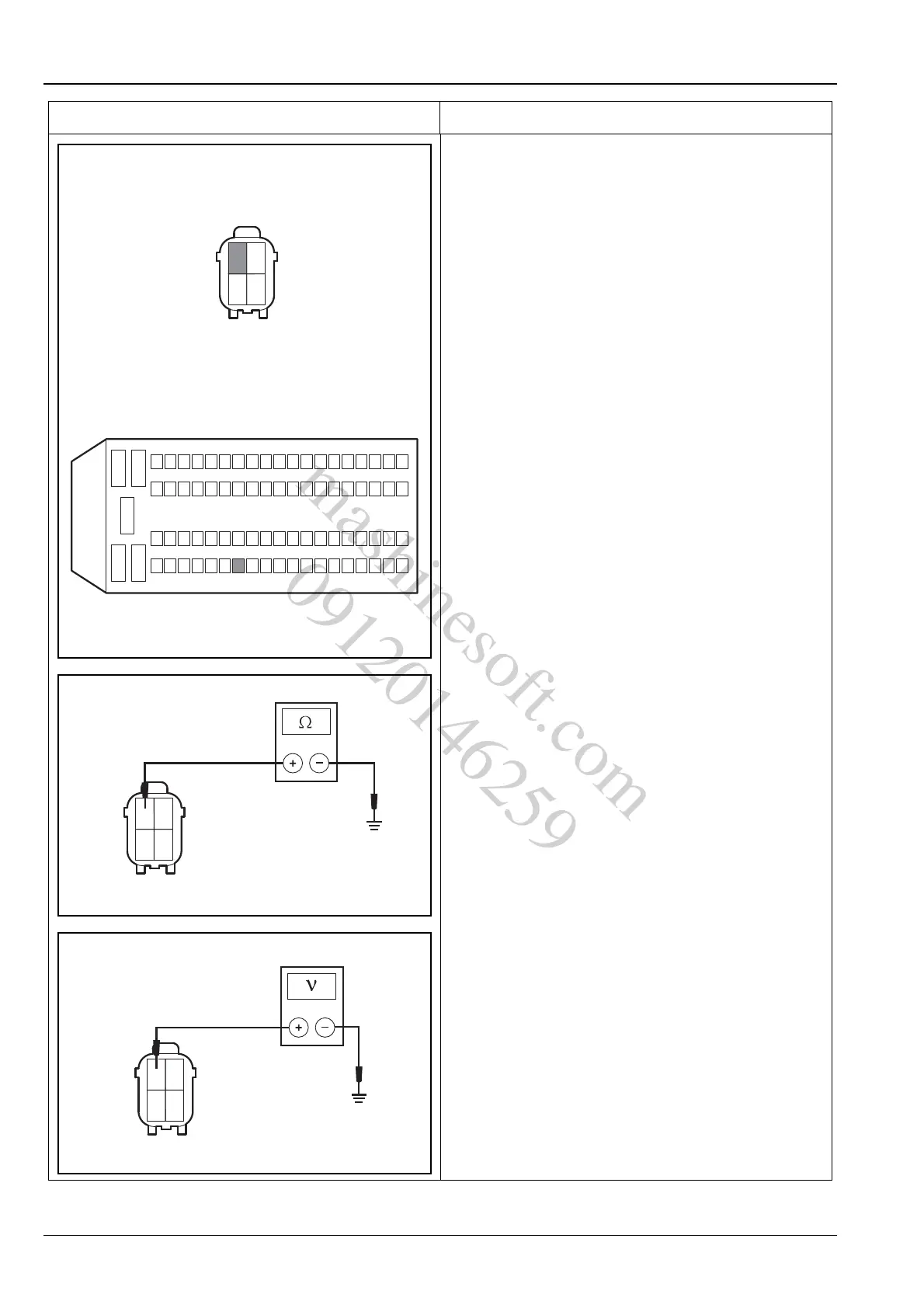

Test Conditions Details/Results/Actions
E01
E05
12
34
18
12
3
45
624
2543
4462
6381
