3.1.13-169 3.1.13-169Electronic Control System - ME7
6. Inspect the fuel injector control signal circuit
A. Turn the ignition switch to position "LOCK".
B. Disconnect the cylinder 1 injector wiring harness
connector E14.
C. Measure the voltage between terminal 2 of E14 and
the reliable grounding.
Standard Voltage Value: 0 V
D. Disconnect the battery negative cable.
E. Disconnect the ECM wiring harness connector E01.
F. Measure the resistance between terminal 2 of
cylinder 1 fuel injector wiring harness connector
E14 and terminal 27 of ECM wiring harness
connector E01.
Standard Resistance Value: less than 5 Ω
Is it normal?
Y
Go to step 7.
N
Repair the circuit faults between the terminal 2 of
E14 and the terminal 27 of ECM wiring harness
connector E01.

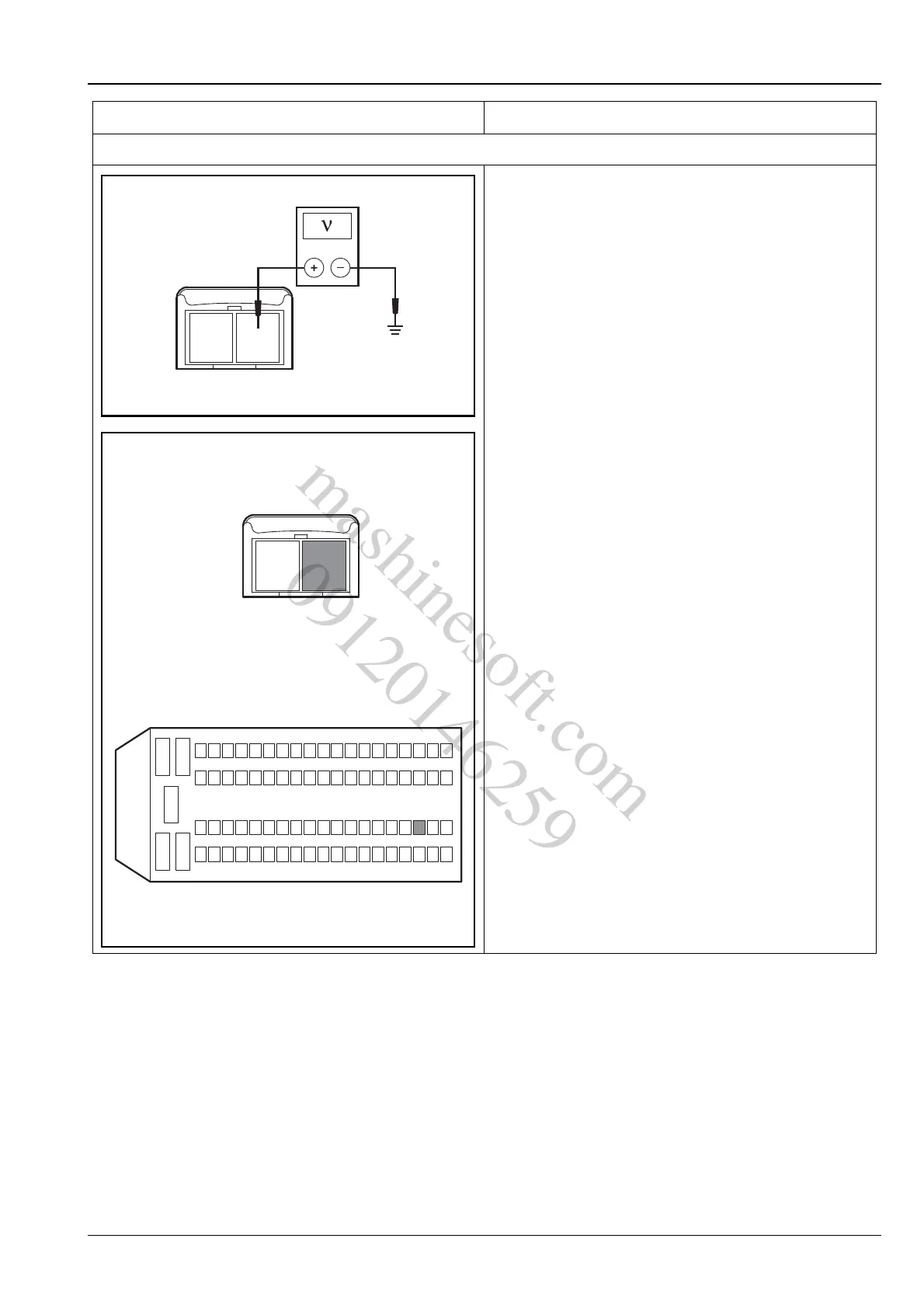

Test Conditions Details/Results/Actions
12
E14
A3113084
E01
12
E14
12
3
45
624
25
27
43
4462
6381
A3113085
