Changan CS35 User Manual

3.1.13-200
CS35 2013.04
3.1.13-200Electronic Control System - ME7
A. Turn the ignition switch to position "LOCK".
B. Disconnect the carbon canister solenoid valve
wiring harness connector E21.
C. Disconnect the engine control module wiring
harness connector E01.

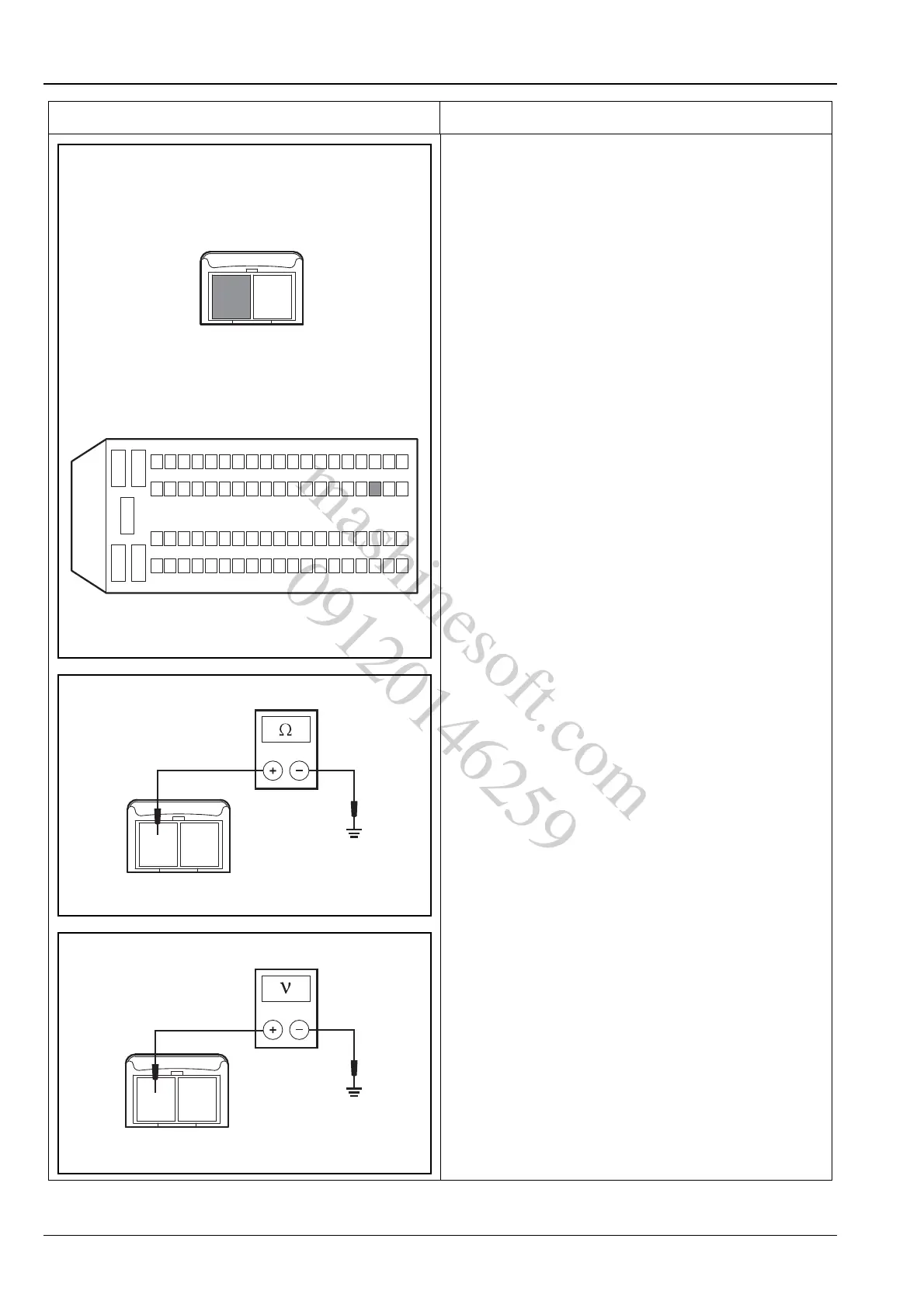

D. Measure the resistance between terminal 1 of
active carbon canister solenoid valve wiring harness
connector E21 and terminal 46 of ECM wiring
harness connector E01. Inspect for open circuit.
Standard Resistance Value: less than 5 Ω
E. Measure the resistance between terminal 1 of
carbon canister solenoid valve wiring harness
connector E21 and reliable grounding. Inspect for
short circuit to ground.
Standard Resistance Value: 10 MΩ or more
F. Measure the voltage between terminal 1 of carbon
canister solenoid valve wiring harness connector
E21 and reliable grounding. Inspect for short circuit
to power supply.
Standard Voltage Value: 0 V
Is the circuit normal?
Y
Go to step 4.
N
Repair the fault circuit between the terminal 1 of
carbon canister solenoid valve wiring harness con-
nector E21 and the terminal 46 of ECM wiring har-
ness connector E01.
Test Conditions Details/Results/Actions
E01
E21
12
12
3
45
624
25
46
43
4462
6381
A3113101
E21
12
A3113102
E21
12
A3113103
