3.1.13-212Electronic Control System - ME7
Test Conditions Details/Results/Actions

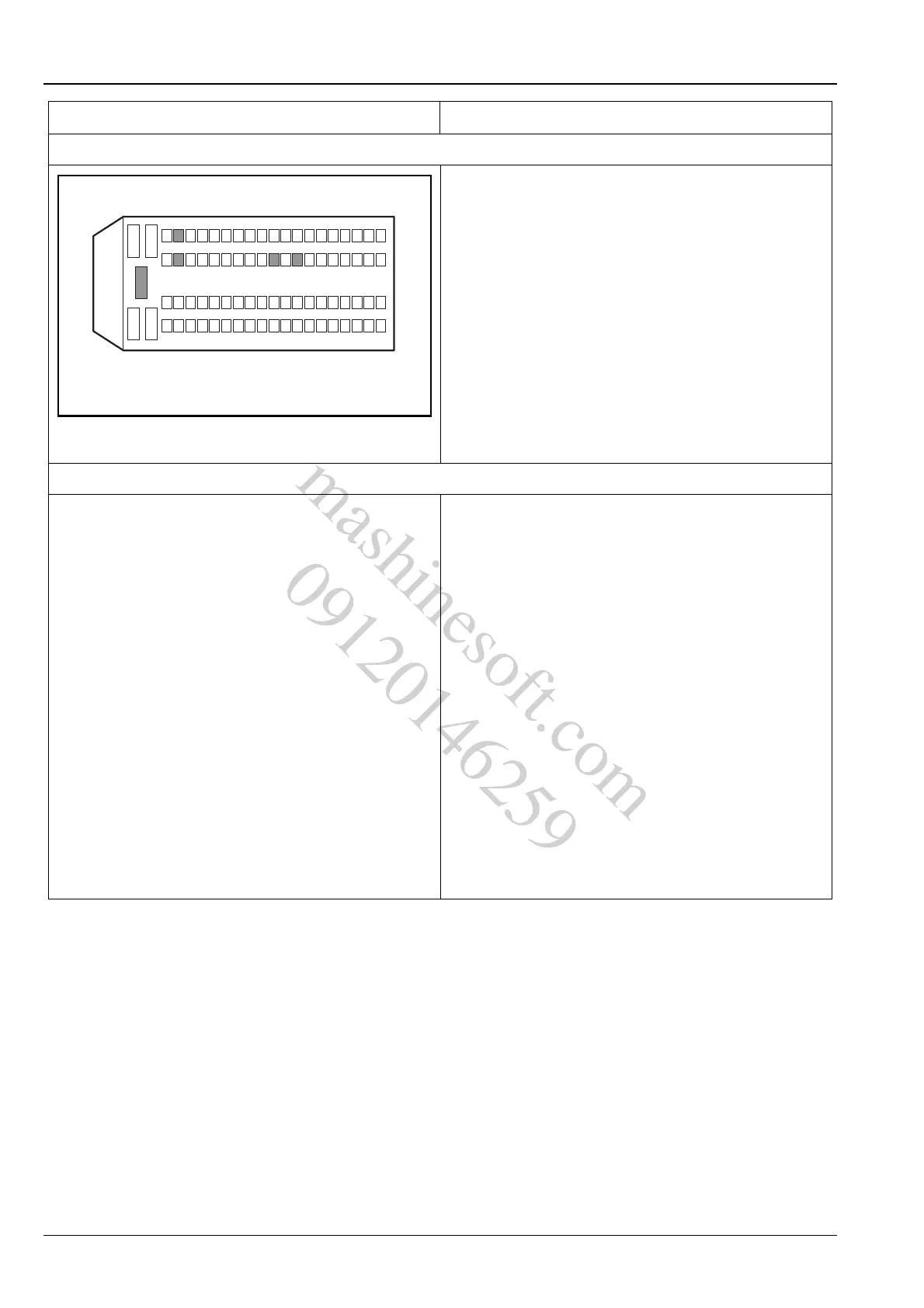

4. Inspect the ECM ground circuit
A. Turn the ignition switch to position "LOCK".
B. Disconnect the battery negative cable.
C. Disconnect the ECM wiring harness connector E01.
D. Measure the resistance value between terminal 3,
51, 53, 61, 80 of ECM wiring harness connector
E01 and reliable grounding.
Standard Resistance Value: less than 5 ā¦
Is the resistance normal?
Y
Go to step 5.
N
Repair the fault circuit.
5. Inspect the charging system
A. Turn the ignition switch to position "LOCK".
B. Inspect the battery voltage.
Standard Voltage Value: 11 ~ 14 V
C. Start the engine to normal temperature, shut down
all the equipments, change the engine speed from
idle speed to 4,000 rpm.
D. Inspect the engine charging voltage.
Standard Voltage Value: 11 ~ 16 V
Is the voltage normal?
Y
Intermittent fault.
Refer to: Intermittent Fault Diagnosis
(3.1.13 Electrical Control System - ME7,
Symptom Diagnosis and Testing).
N
Repair the battery or charging system fault.
