3.1.13-244Electronic Control System - ME7
2. Inspect the electronic accelerator pedal position sensor 2 power supply circuit
A.Turn the ignition switch to position "LOCK".
B. Disconnect electronic accelerator pedal position
sensor wiring harness connector C16.
C. Turn the ignition switch to position "ON".

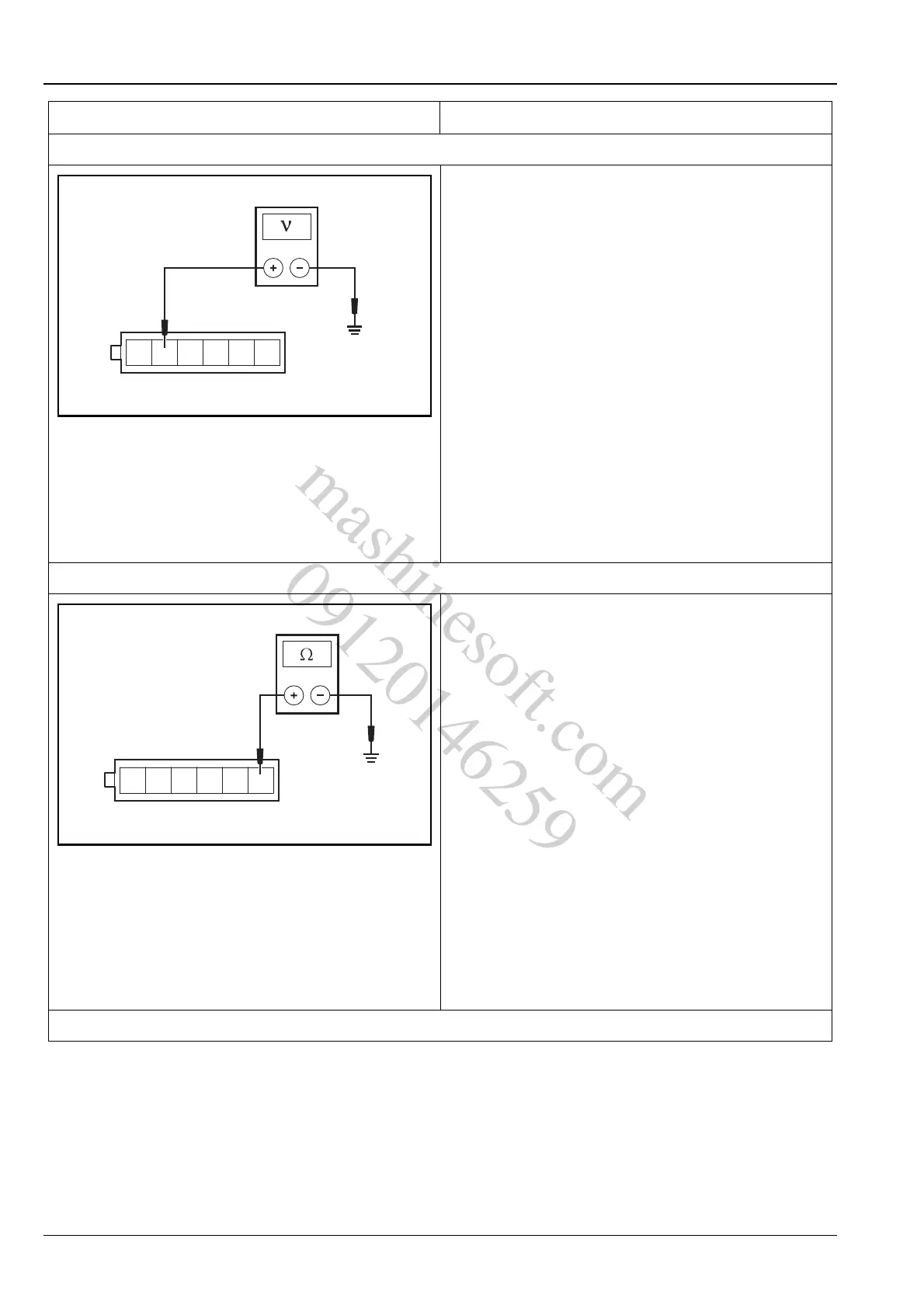

D. Measure the voltage between the terminal 2 of
electronic accelerator pedal position sensor wiring
harness connector C16 and reliable grounding.
Standard Voltage Value: 4.5 ~ 5.5 V
E. Connect electronic accelerator pedal position
sensor wiring harness connector C16.
Is the voltage normal?
Y
Go to step 3.
N
Repair the fault circuit between terminal 2 of elec-
tronic accelerator pedal position sensor wiring har-
ness connector C16 and terminal 32 of ECM E01.
3. Inspect the electronic accelerator pedal position sensor 2 ground circuit
A. Turn the ignition switch to position "LOCK".
B. Disconnect electronic accelerator pedal position
sensor wiring harness connector C16.
C. Turn the ignition switch to position "ON".
D. Measure the resistance between the terminal 6 of
electronic accelerator pedal position sensor wiring
harness connector C16 and reliable grounding.
Standard Resistance Value: less than 5 ā¦
E. Connect electronic accelerator pedal position
sensor wiring harness connector C16.
Is the resistance value normal?
Y
Go to step 4.
N
Repair the fault circuit between terminal 6 of elec-
tronic accelerator pedal position sensor wiring har-
ness connector C16 and terminal 35 of the ECM
E01.
4. Inspect the electronic accelerator pedal position sensor 2 signal circuit
Test Conditions Details/Results/Actions
