CS35 2013.04
3.1.13-53 3.1.13-53Electronic Control System - ME7

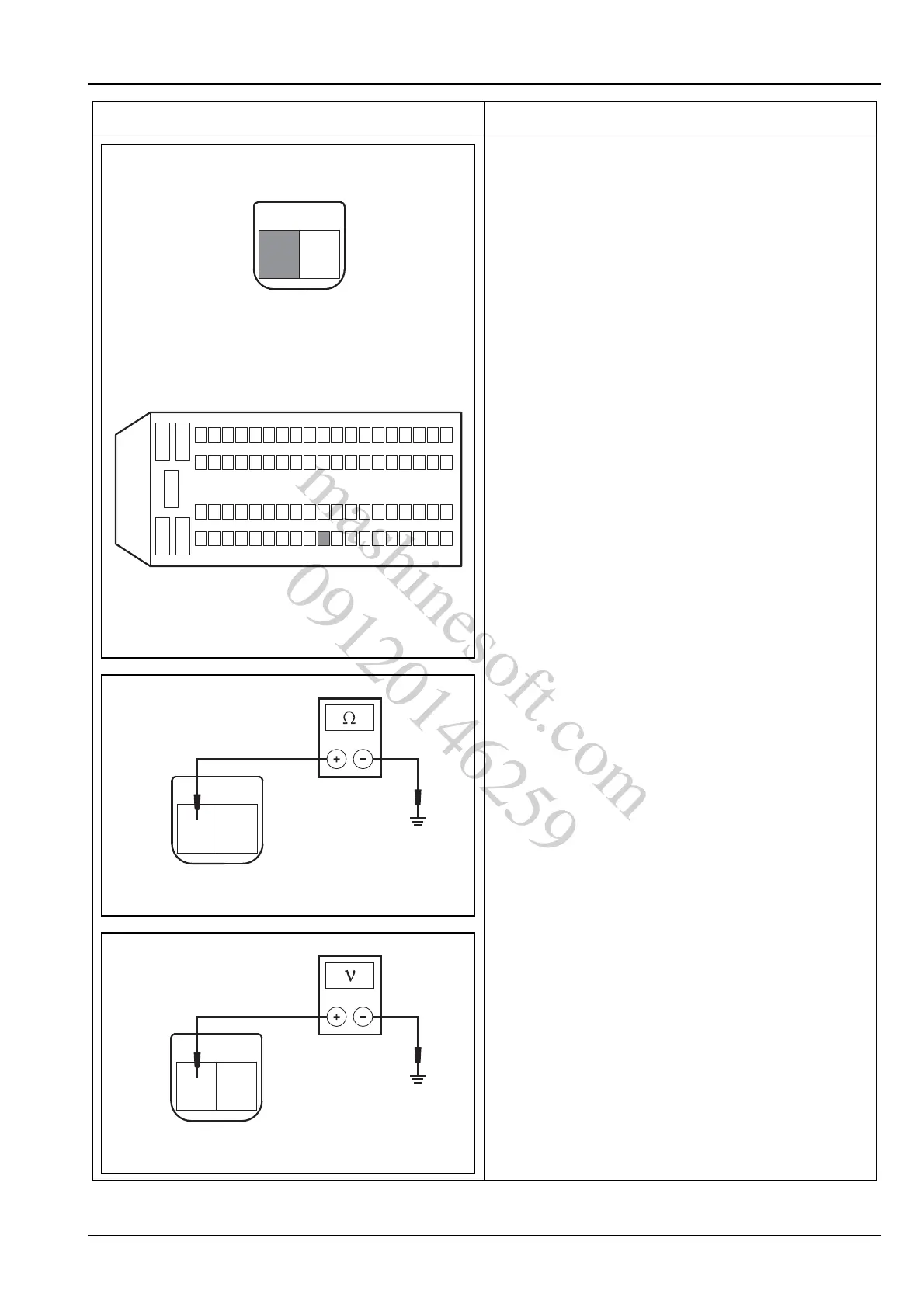

A. Turn the ignition switch to "LOCK" position.
B. Disconnect the crankshaft position sensor wiring
harness connector E07.
C. Disconnect the ECM wiring harness connector E01.
D. Measure the resistance value between the terminal
1 of crankshaft position sensor wiring harness
connector E07 and the terminal 15 of ECM wiring
harness connector E01. Inspect for open circuit.
Standard Resistance Value: less than 5Ω
E. Measure the resistance value between the terminal
1 of crankshaft position sensor wiring harness
connector E07 and the reliable grounding. Inspect
for short circuit to ground.
Standard Resistance Value: 10 MΩ or more
F. Measure the voltage between the terminal 1 of
crankshaft position sensor wiring harness connector
E07 and the reliable grounding. Inspect for short
circuit to power supply.
Standard Voltage Value: 0 V
Is the circuit normal?
Y
Go to step 5.
N
Repair the circuit between the terminal 1 of crank-
shaft position sensor wiring harness connector E07
and the terminal 15 of engine control module wiring
harness connector E01.
Test Conditions Details/Results/Actions
E01
E07
12
12
3
45
624
25
15
43
4462
6381
A3113034
