Step 5:
Click the ’OK’ button shown in figure 5.2.8 to proceed.
All tools for managing the Miro are shown on the ‘Miro Operations’ window.
Note that the ‘Online Monitor’ button in figure 5.2.7 is inactive and that the ‘Logging status’ is
‘Off’. This is because the Miro is in ‘USB Mode’.

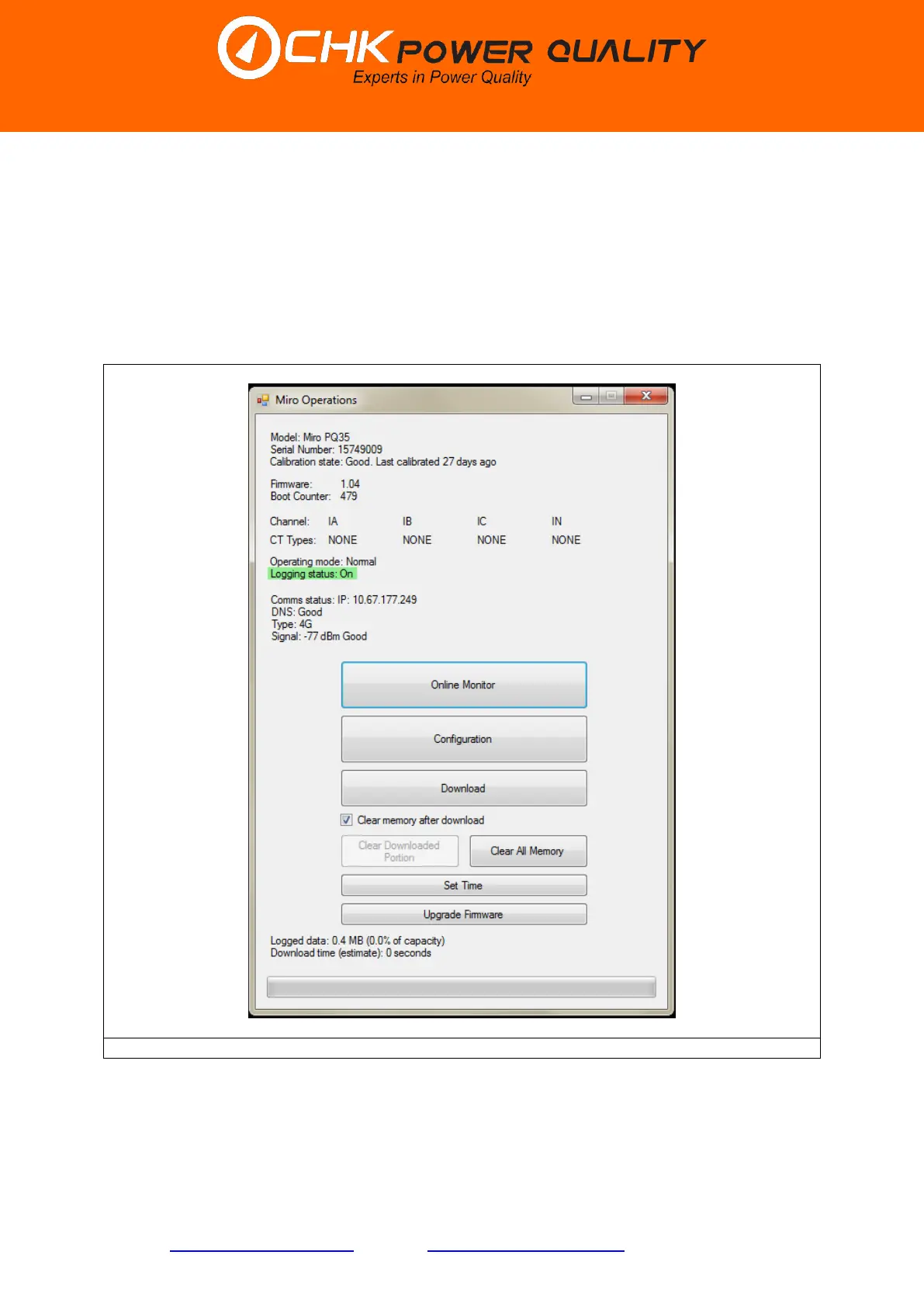

As shown in figure 5.2.9, the ‘Online Monitor’ button is active and the ‘Logging status’ is ‘On’
when the Miro is out of ‘USB Mode’.
Figure 5.2.9
Note that if the Miro is not in USB mode and all power is removed, the backup battery will
sustain the current mode for 5 minutes; after which time the Miro will enter USB mode.
Also note that cellular communications is disabled whilst in USB mode and shown in figures
5.2.7 and 5.2.9.
