The set zoom feature allows the user to set the minimum and maximum values for both the
voltage and current scales.
Assuming the user wishes to change the scales for the graphs shown in figure 5.9.2.3.1.

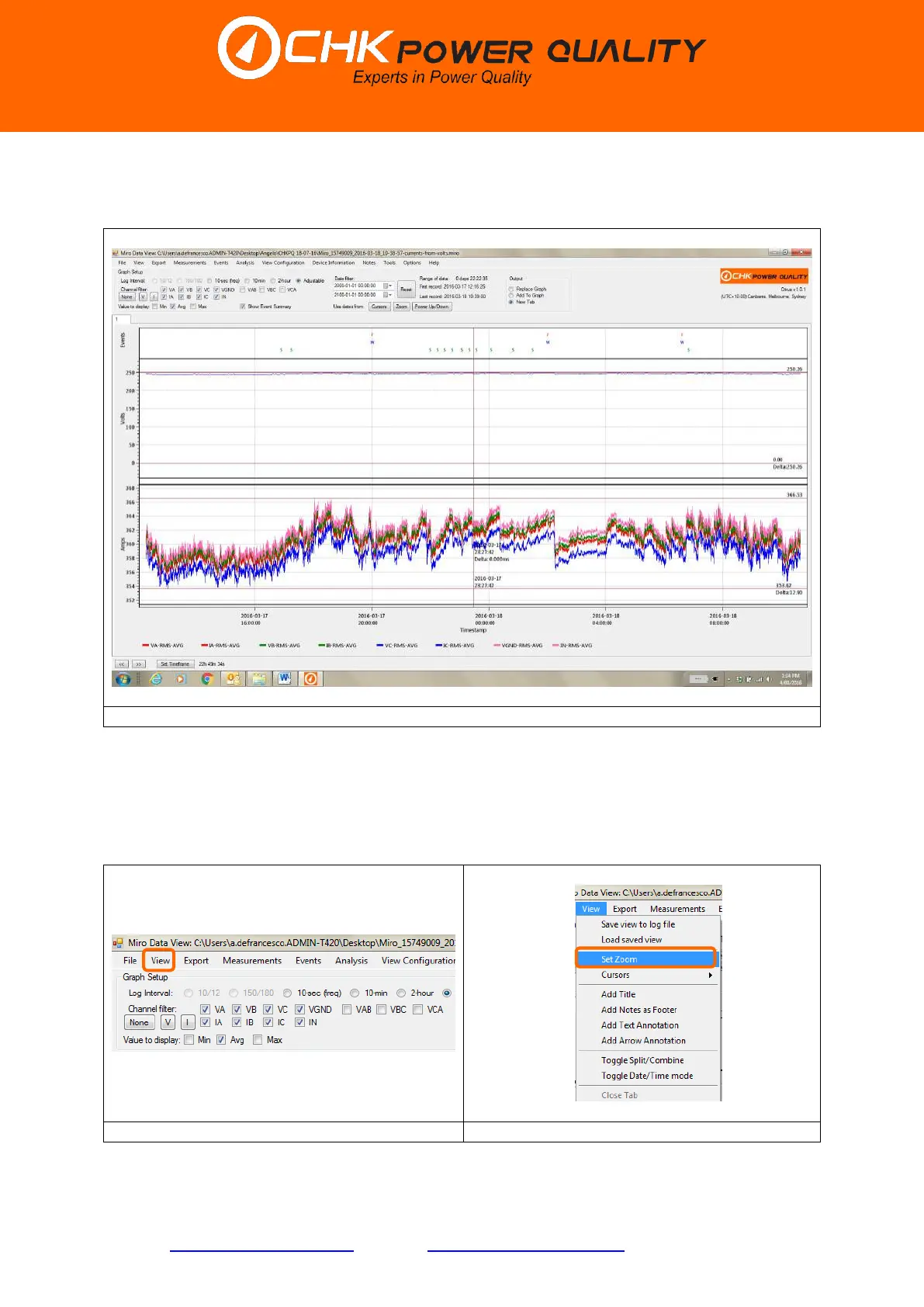

Figure 5.9.2.3.1
Step 1: Click the ’View’ menu shown in figure 5.9.2.3.1. A drop down box appears as shown
in figure 5.9.2.3.2.
Step 2: Hover and click on ’Set Zoom’. A list box appears as shown in figure 5.9.2.3.3
allowing the user to select ‘VOLTS’ or ‘AMPS’.
Figure 5.9.2.3.1
Figure 5.9.2.3.2
