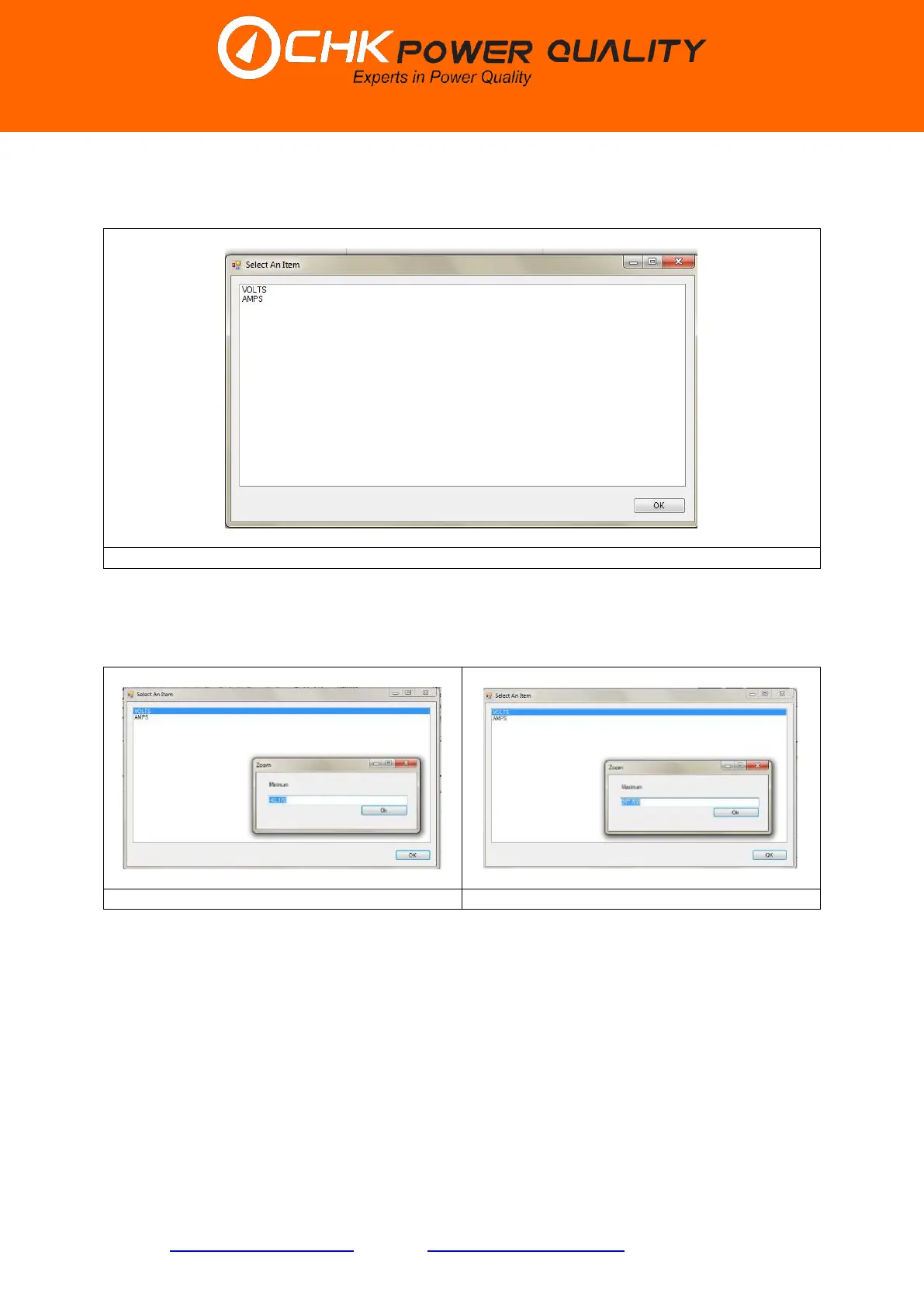

Step 3: Click on ’VOLTS’. An input box appears as shown in figure 5.9.2.3.4. The predefined
level in the input box is the value that the minimum is currently set to. The user can alter this
level.
Figure 5.9.2.3.3
Step 4: In this case, set the level to 240 and click ’OK’. An input box apears as shown in
figure 5.9.2.3.5. The predefined level in the input box is the value that the maximum is
currently set to. The user can alter this level.
Figure 5.9.2.3.4
Figure 5.9.2.3.5
Step 5: In this case, set the level to 260 and click ’OK’. The scale for the voltage graph
shown in figure 5.9.2.3.1 has now been changed to that shown in figure 5.9.2.3.6.
