Circutor CVM-C11 - KEYBOARD AND INDICATORS

The device calculates the current power of the installation using the formula:
P = V*I*cos(φ)
Where the voltage and the cos(φ) are the installation’s current values.
The current is referenced in its full scale. (100% is the full scale of the device and a value above
100% indicates that it is out of range).
4.3.- KEYBOARD FUNCTIONS
The CVM-C11 has 3 keys that allow you to browse between the various screens and program the device.
Keyboard

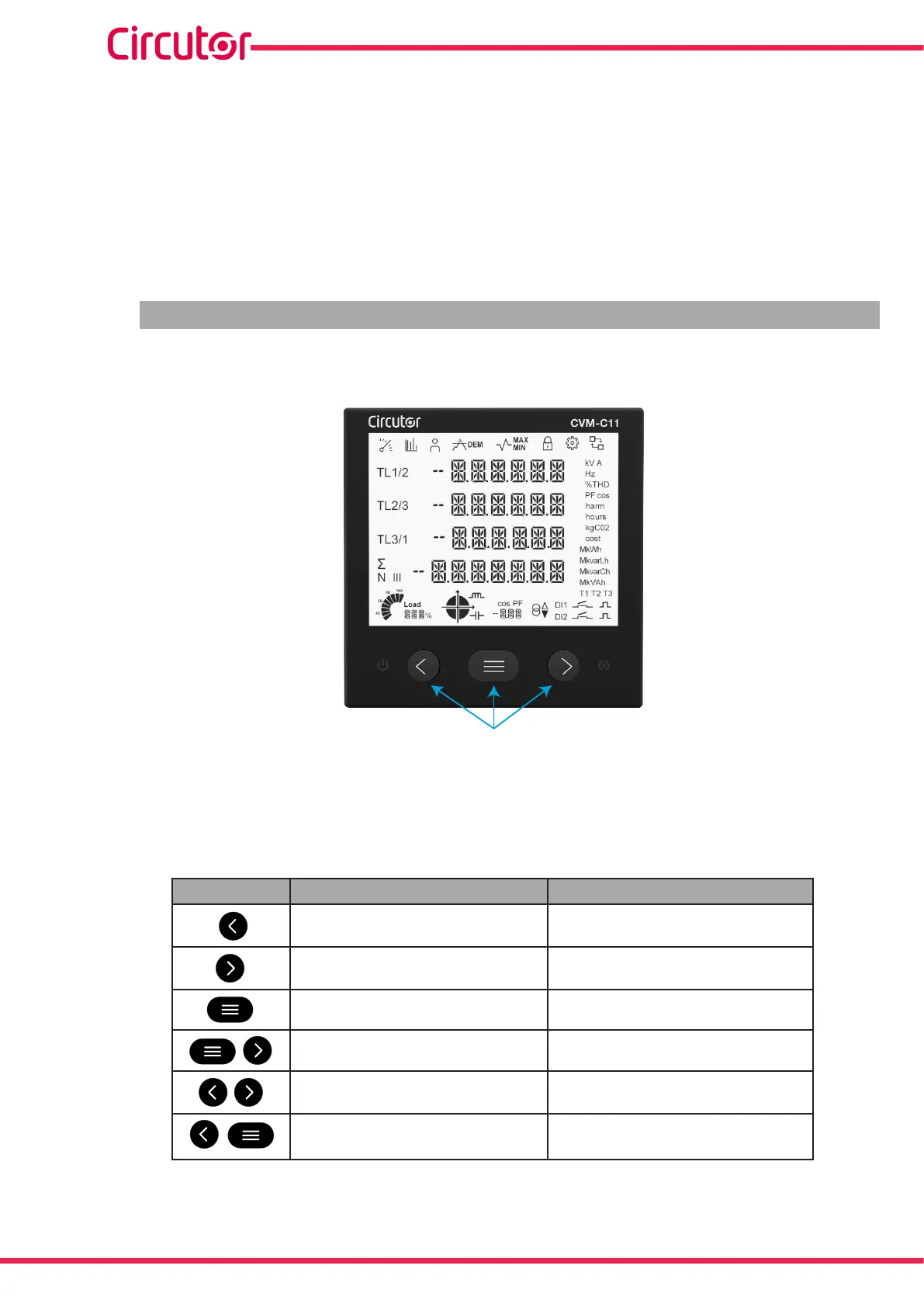

Figure 33: CVM-C11 keyboard.
Key functions on measuring screens (Table 16):
Table 16: Key functions on measuring screens.
Key Short keystroke Long keystroke (3 s)
Previous screen. Display of minimum value.
Next screen. Display of maximum value.
Browsing the different profiles. Accessing the programming menu.
- Display of the Maximum Demand.
- Unlocks the active alarm.
-
Access to the Ethernet communica-
tions configuration menu.
(1)
(1)
Available in model CVM-C11-ITF-IN-ETH-ICT2.
