1. VERIFICATION UPON RECEPTION
Check the following points when you receive the device:
a) The device meets the specifications described in your order.
b) The device has not suffered any damage during transport.
c) Perform an external visual inspection of the device prior to switching it on.
d) Check that it has been delivered with the following:
- An installation guide,
If any problem is noticed upon reception, immediately contact the transport com-
pany and/or CIRCUTOR's after-sales service.

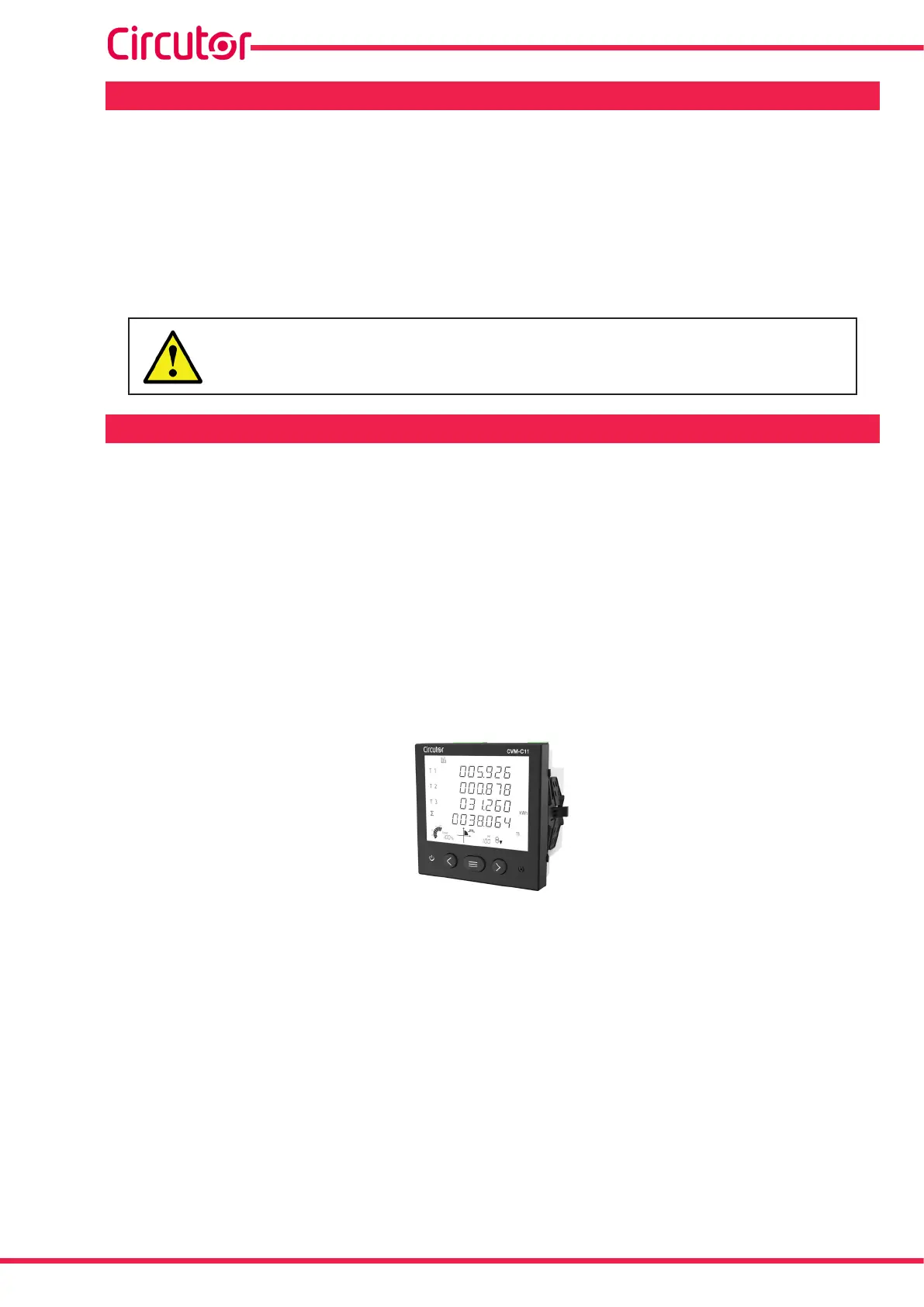

2. PRODUCT DESCRIPTION
The CVM-C11 device measures, calculates and displays the main electrical parameters of the following
networks: single-phase, two-phase, with and without neutral, balanced three-phase, with ARON meas-
urements or unbalanced. The measurement will be taken in RMS with the three AC voltage inputs and
four current inputs.
There are 4 versions of the device, depending on the type of current input:
CVM-C11-ITF-IN-485-ICT2 and CVM-C11-ITF-IN-ETH-ICT2 model measures current through /5A
or /1A transformers.
CVM-C11-FLEX-IN-485-ICT2 current measurement through Rogowski sensors.
CVM-C11-MC-IN-485-ICT2 indirect current measurement with efficient transformers of the MC1
and MC3 series.
The device features:
- 3 keys that allow you to browse between the various screens and program the device.
- 2 indicator LEDs.
- LCD display, displays all parameters.
- 2 digital inputs, used to select the tariff, detect the logic state of external signals or to gen-
erate a synchronism pulse to calculate the maximum demand.
- 2 digital outputs, fully programmable.
- 2 alarm relays, fully programmable.
- RS-485 Communications, with two serial protocols: MODBUS RTU© and BACnet.
- Ethernet Communications (CVM-C11-ITF-IN-ETH-ICT2 Model), with two serial protocols:
MODBUS TCP and BACnet IP.
