6.5.- FLEX SENSOR
Note: Display visible on models: CVM-E3-MINI-FLEX and CVM-E3-MINI-FLEX-WiEth.

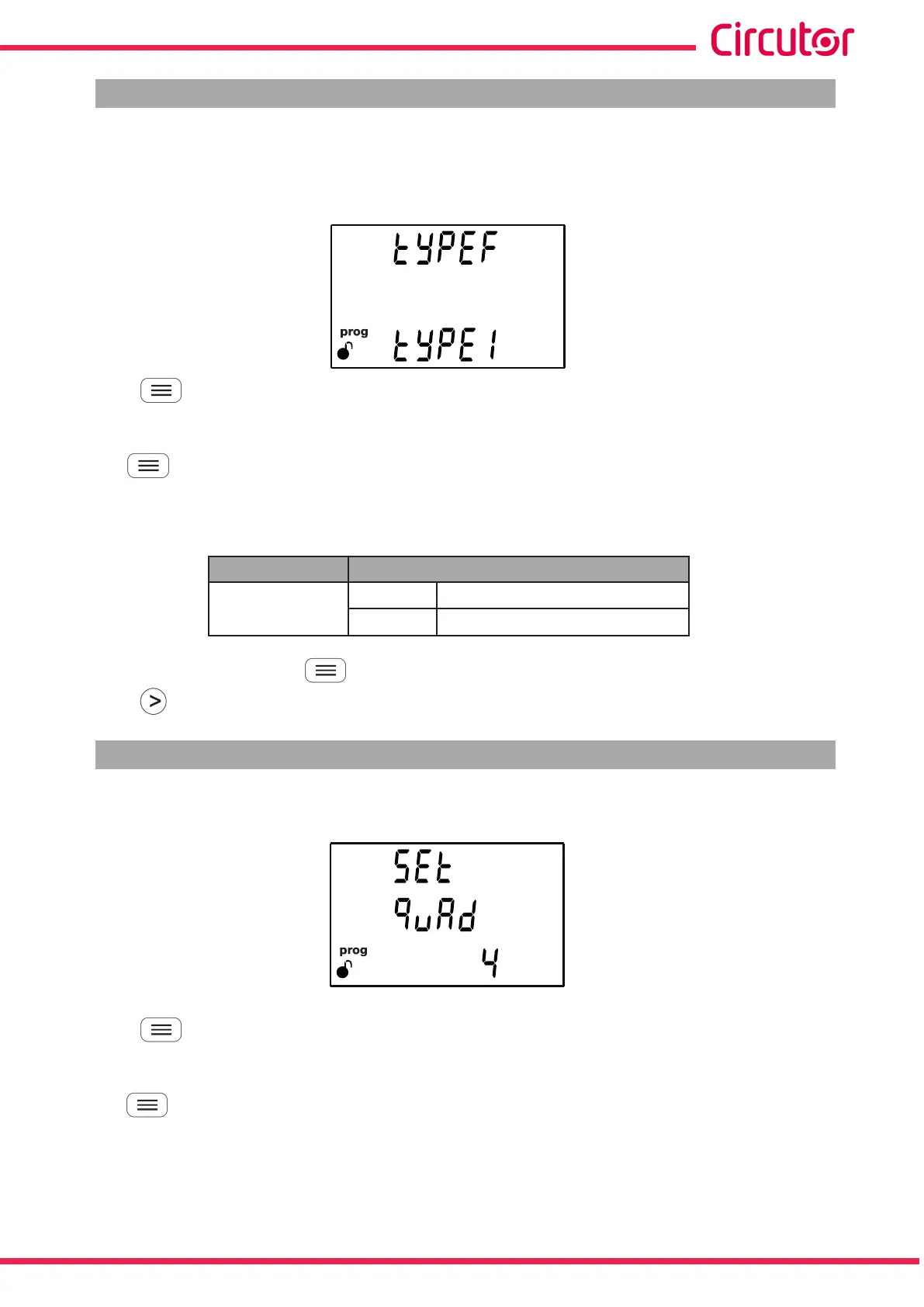

On this screen, you can select the Rogowski flexible sensor, which will be used to measure the current.
Press the key for 3 seconds to enter the edit mode. The prog icon will flash on the left of the
screen.
The key is used to browse the different options.
 Configuration values
Table 25:Configuration values: Flex Sensor.
Flex Sensor
Possible values
TYPE1
Rogowski sensor 100uV/A.
TYPE2
Rogowski sensor 76uV/A.
To validate the value, press the key for 3 seconds; the prog icon will stop flashing.
Press key to access the next programming step.
6.6.- NUMBER OF QUADRANTS
The quadrant number on which the device takes the measurement is selected on this screen.
Press the key for 3 seconds to enter the edit mode. The prog icon will flash on the left of the
screen.
Use the key to browse the available options.
59
Instruction Manual
CVM-E3-MINI
