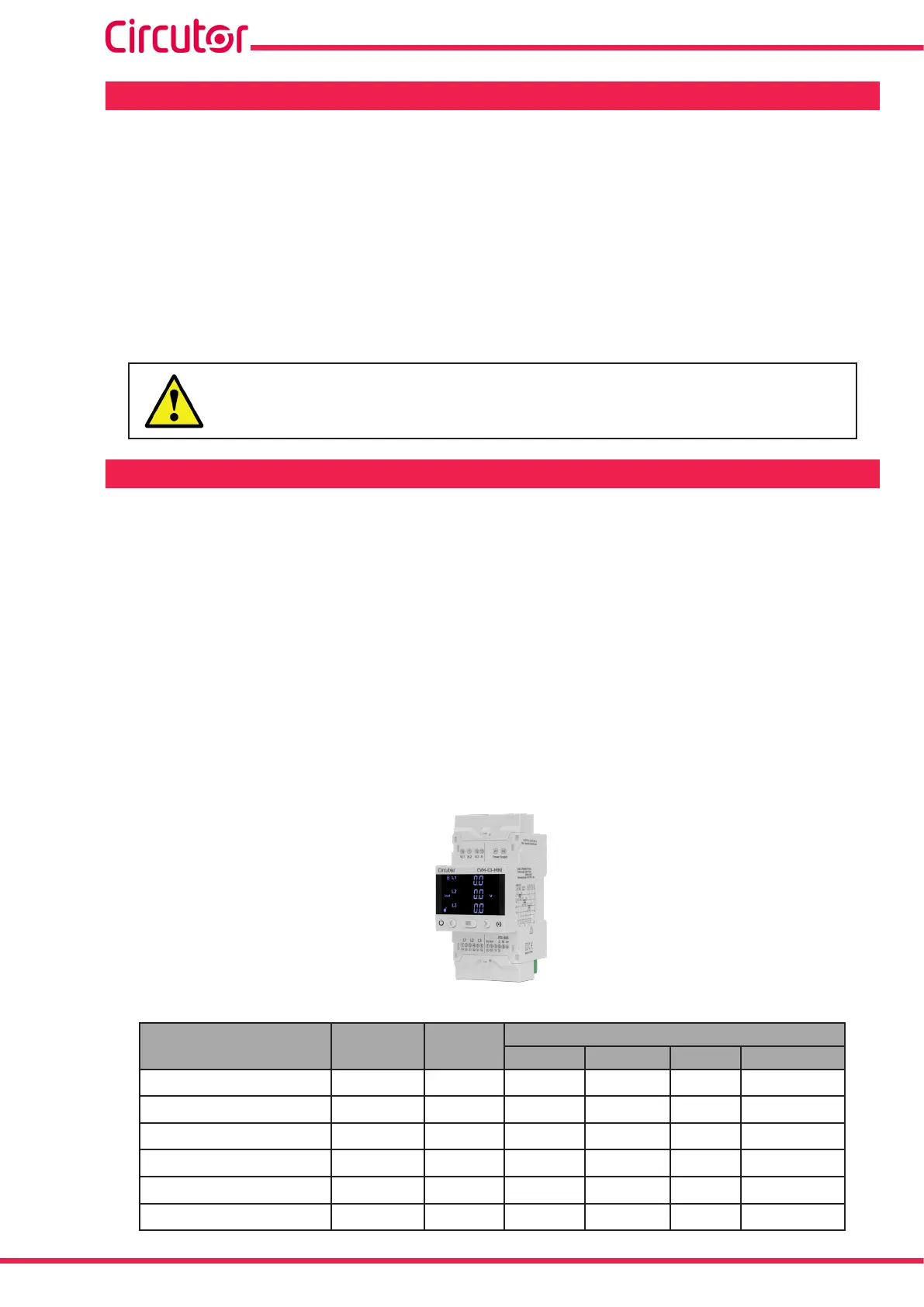

Circutor CVM-E3-MINI - 1�- Verification Upon Reception; 2�- Product Description

1. VERIFICATION UPON RECEPTION
Check the following points when you receive the device:
a) The device meets the specifications described in your order.
b) The device has not suffered any damage during transport.
c) Perform an external visual inspection of the device prior to switching it on.
d) Check that it has been delivered with the following:
- An installation guide,
- 1 retainer to secure the device to the DIN rail,
- 4 connectors.
- 2 terminal covers.
If any problem is noticed upon reception, immediately contact the transport com-
pany and/or CIRCUTOR's after-sales service.
2. PRODUCT DESCRIPTION
The CVM-E3-MINI device measures, calculates and displays the main electrical parameters of the
following networks: single-phase, two-phase, with and without neutral, balanced three-phase, with
ARON measurements or unbalanced. The measurement will be taken in RMS with the three AC voltage
inputs and three current inputs.
There are 6 versions of the device, in accordance with current input:
 CVM-E3-MINI-ITF and CVM-E3-MINI-ITF-WiEth, indirect current measurement with /5A or
/1A transformers.
 CVM-E3-MINI-MC and CVM-E3-MINI-MC-WiEth, indirect current measurement with effi-
cient MC1 and MC3 series transformers.
 CVM-E3-MINI-FLEX and CVM-E3-MINI-FLEX-WiEth, current measurement through Ro-
gowski sensors.
Table 3: Models.
Models
Pulse
outputs
Digital
input
Communications
RS-485 Ethernet Wi-Fi Bluetooth
®
CVM-E3-MINI-ITF
  
CVM-E3-MINI-ITF-WiEth
  
CVM-E3-MINI-MC
  
CVM-E3-MINI-MC-WiEth
  
CVM-E3-MINI-FLEX
  
CVM-E3-MINI-FLEX-WiEth
  
