Cisco 7800 Series Administrator's Guide

Non-Lockable Wall Mount Components for 7811

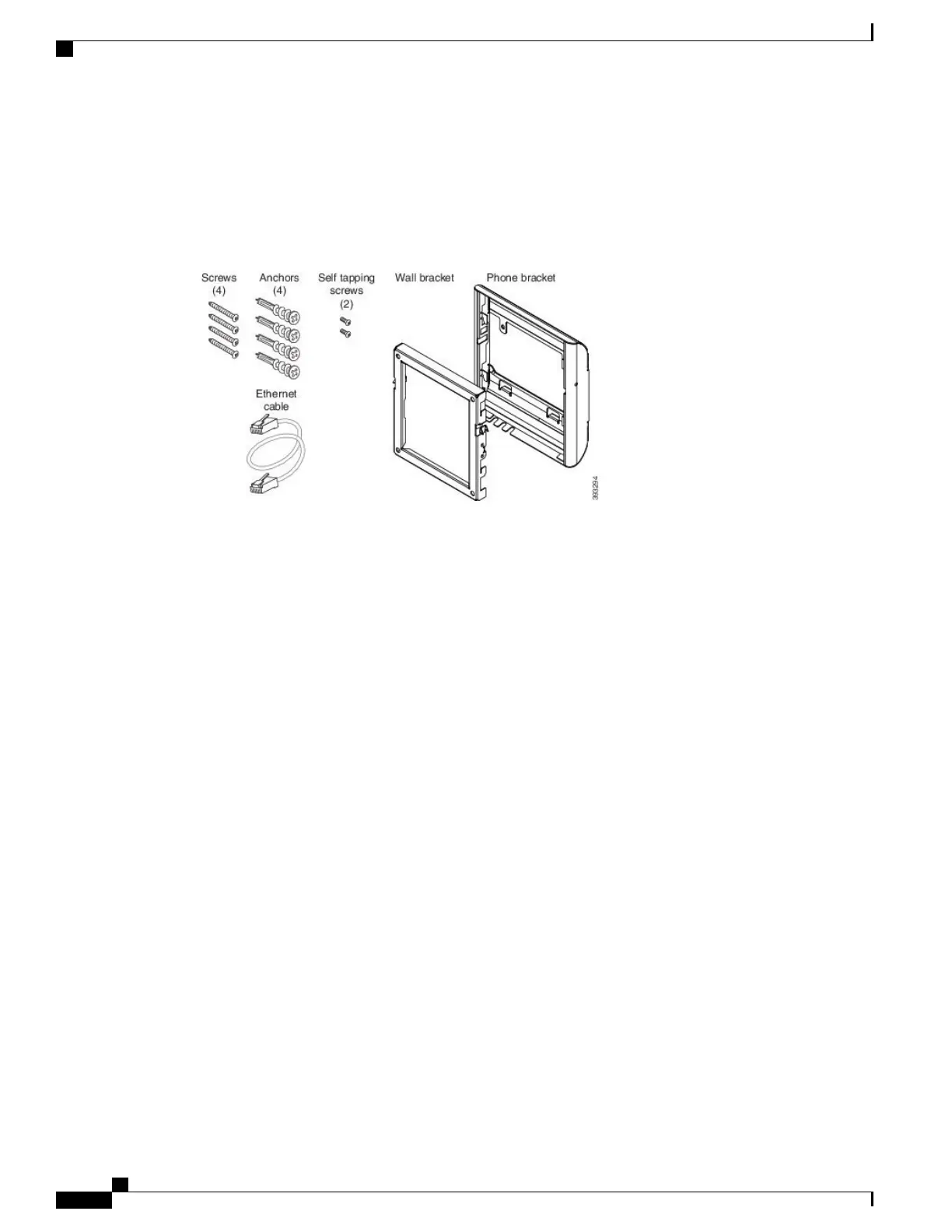

The following figure shows the components of the Cisco IP Phone 7811 Wall Mount Kit.
Figure 2: Wall Mount Kit Components for 7811
The package includes these items:
•
One phone bracket
•
One wall bracket
•
Four M4 x 25-mm Phillips-head screws with four anchors
•
Two M3 x 7-mm Self-tapping screws
•
One 200-mm Ethernet cable
Cisco IP Phone 7800 Series Administration Guide for Cisco Unified Communications Manager
64
Non-Lockable Wall Mount Components for 7811

Cisco 7800 Series Specifications

General

Wireless	No
Video Support	No
PoE	Yes, 802.3af/at
Audio Codec Support	G.711, G.722, G.729, iLBC
Network Protocols	SIP, SDP, IPv4, IPv6, UDP, TCP, DNS, TFTP, HTTP, HTTPS, DHCP
Security Features	802.1X, TLS, SRTP
Power Options	PoE
Headset Port	3.5mm
Buttons	Line keys, navigation cluster, softkeys, mute, speakerphone, headset, volume control
Bluetooth	No
Ethernet Switch	Yes, 2-port 10/100/1000
USB Port	Yes, for headset (7875)
