Cisco 7800 Series

Procedure
Step 1
Push the screwdrivers into the left and right holes in the phone mounting plate approximately 1 in. (2.5 cm).
Step 2
Lift the screwdriver handles up to push down on the tabs.

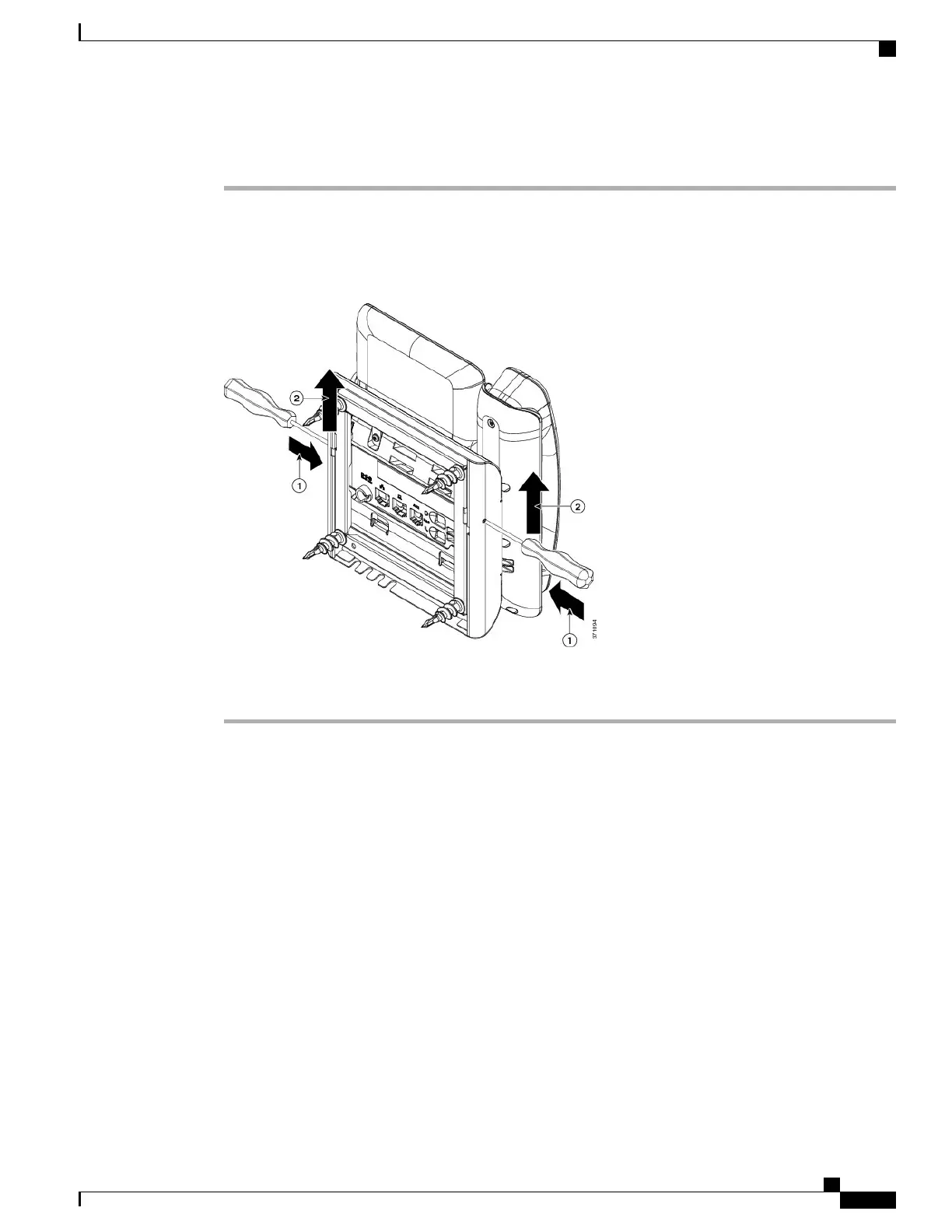

Figure 19: Disengage Tabs
Step 3
Press firmly to disengage the tabs and move the phone up at the same time to release the phone from the wall
bracket.
Cisco IP Phone 7800 Series Administration Guide for Cisco Unified Communications Manager
81
Non-Lockable Wall Mount Components
