Cisco RVS4000 - Gigabit Security Router Administration Guide

Gateway-to-Gateway VPN Tunnel
Configuration When Both Gateways Use Dynamic IP Addresses
Cisco RVS4000 Security Router with VPN Administrator Guide 181
D

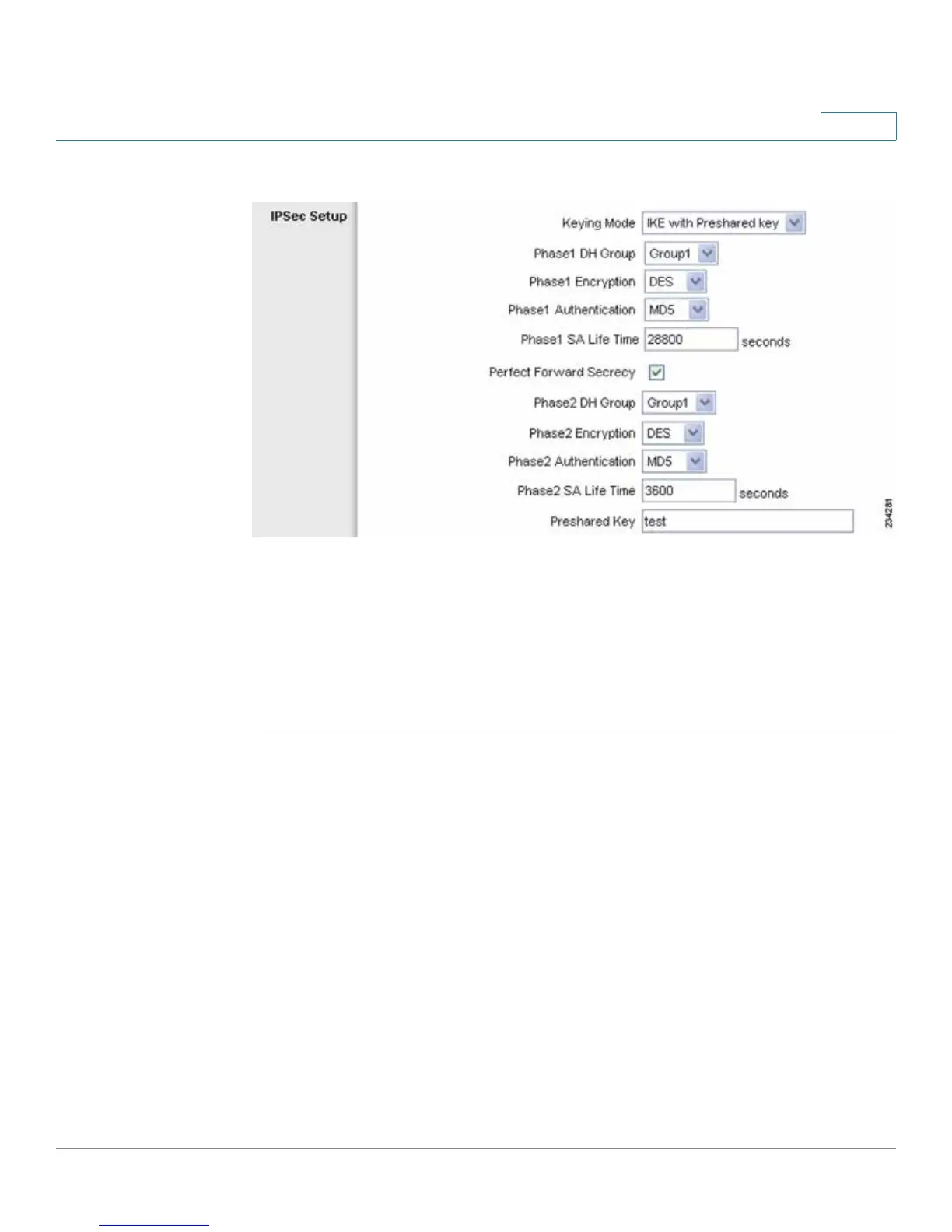

RV082 IPSec Setup Settings
l. If you need more detailed settings, click Advanced Settings. Otherwise, click
Save.
STEP 3 Configuration of PC 1 and PC 2.
Verify that PC 1 and PC 2 can ping each other (refer to Windows Help for more
information). If the computers can ping each other, then you know the VPN tunnel is
configured correctly.

Cisco RVS4000 - Gigabit Security Router Specifications

General

WAN Ports	1 x 10/100/1000 Mbps
LAN Ports	4 x 10/100/1000 Mbps
VPN Support	IPSec, PPTP
Wireless	No
QoS	Yes
Power Supply	12V DC, 1.5A
Humidity	10% to 85% non-condensing
Firewall	SPI Firewall
VPN Throughput	30 Mbps
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-4°F to 158°F (-20°C to 70°C)
Management	Web-based
