Cisco RVS4000 - Gigabit Security Router Administration Guide

Setting Up and Configuring the Router
VPN
Cisco RVS4000 Security Router with VPN Administrator Guide 58
5
VPN

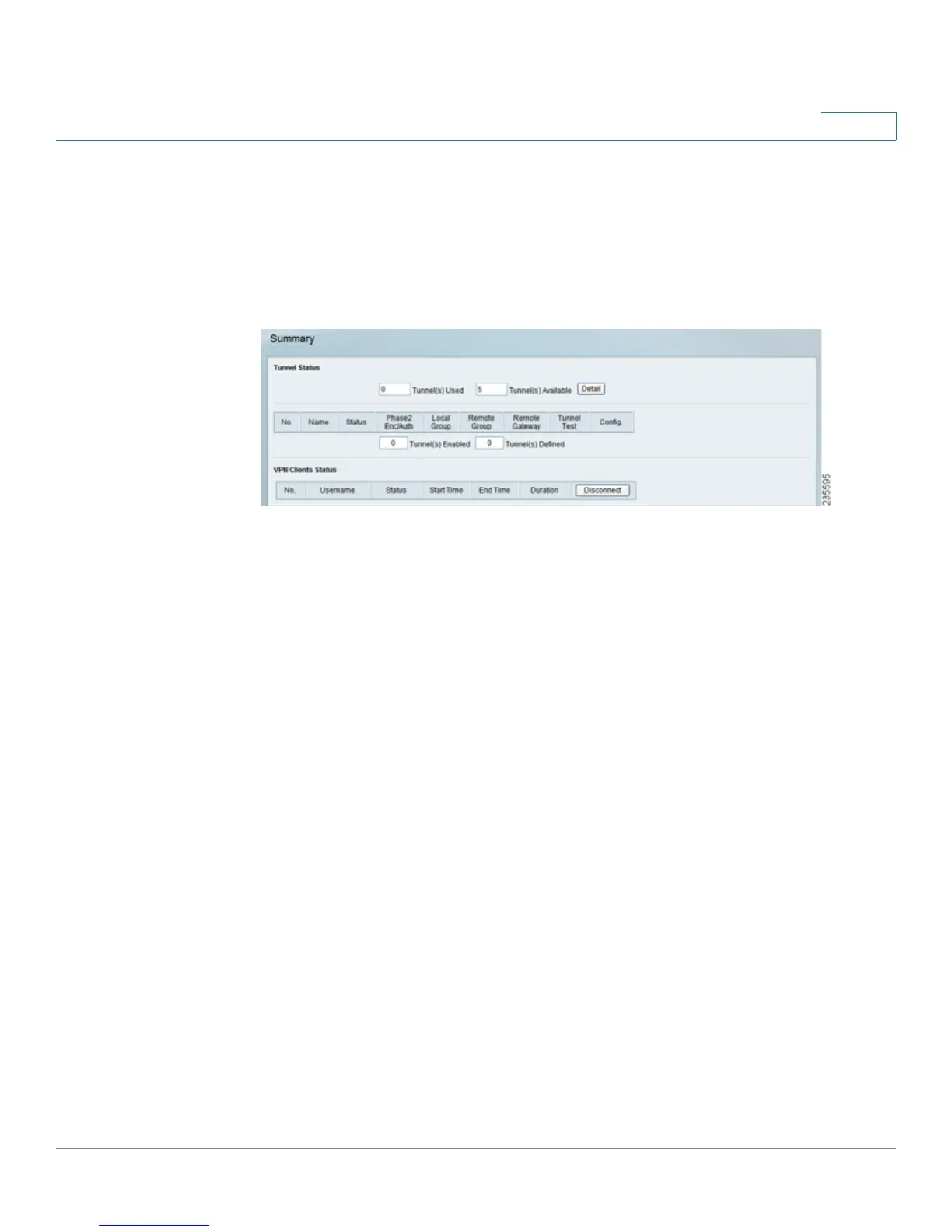

VPN > Summary
VPN > Summary
Tunnels Used Displays the number of tunnels used.
Tunnel(s) Available Displays the number of available tunnels.
Detail button Click Detail to display more tunnel information.
Tunnel Status
No. Displays the number of the tunnel.
Name Displays the name of the tunnel, as defined by the Tunnel Name field on the
VPN > IPSec VPN window.
Status Displays the tunnel’s status: Connected, Hostname Resolution Failed,
Resolving Hostname, or Waiting for Connection.
Phase2 Enc/Auth. Displays the Phase 2 Encryption type (3DES), Authentication
type (MD5 or SHA1), and Group (768-bit, 1024-bit, or 1536-bit) that you chose in
the VPN > IPSec VPN window.
Local Group Displays the IP address and subnet of the local group.
Remote Group Displays the IP address and subnet of the remote group.
Remote Gateway Displays the IP address of the remote gateway.
Tunnel Test Click Connect to verify the tunnel status; the test result is updated in
the Status column. If the tunnel is connected, you can disconnect the IPSec VPN
connection by clicking Disconnect.

Cisco RVS4000 - Gigabit Security Router Specifications

General

WAN Ports	1 x 10/100/1000 Mbps
LAN Ports	4 x 10/100/1000 Mbps
VPN Support	IPSec, PPTP
Wireless	No
QoS	Yes
Power Supply	12V DC, 1.5A
Humidity	10% to 85% non-condensing
Firewall	SPI Firewall
VPN Throughput	30 Mbps
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-4°F to 158°F (-20°C to 70°C)
Management	Web-based
