Getting Started with the RVS4000 Router
Back Panel
Cisco RVS4000 Security Router with VPN Administrator Guide 19
4

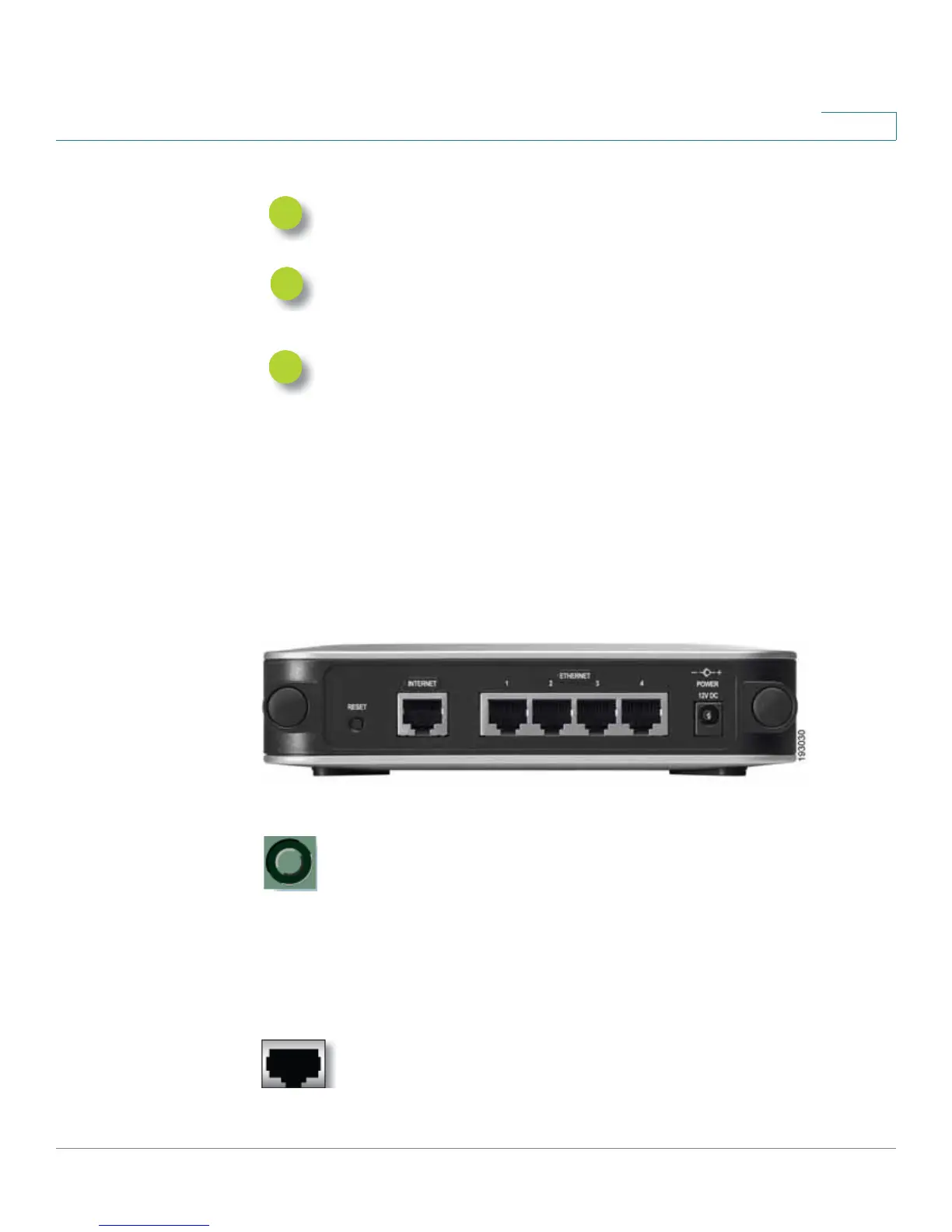

Back Panel
The Ethernet ports, Internet port, Reset button, and Power port are on the back panel of
the router.
Back Panel
IPS LED: Steady green when the Intrusion Prevention System (IPS) function is
enabled. Unlit when IPS functions are disabled. Flashes green when an
external attack is detected. Flashes red when an internal attack is detected.
Ethernet Port LEDs 1-4: For each LAN port, there are three LEDs. Steady
green when the router is connected to a device at the speed indicated through
the corresponding port (1, 2, 3, or 4). Flashes green when a router is actively
sending or receiving data on the port.
INTERNET LED: Steady green to indicate the line speed of the device
attached to the Internet port. Flashes to indicates activity. If the router is
connected to a cable or DSL modem, typically the 100 LED is the only LED lit
up, indicating 100 Mbps.
RESET Button: You can use the Reset button in two ways:
• If the router has problems connecting to the Internet, press the
Reset button for just a second with a paper clip or a pencil tip.
This is similar to pressing the reset button on your PC to reboot it.
• If you experience extreme problems with the router and have
tried all other troubleshooting measures, press and hold the
Reset button for 10 seconds. This action restores the factory
defaults and clear all of the router settings, such as port
forwarding or a new password.
INTERNET Port: Provides a WAN connection to a cable modem or DSL
modem.
