Setting Up and Configuring the Router
L2 Switch
Cisco RVS4000 Security Router with VPN Administrator Guide 93
5

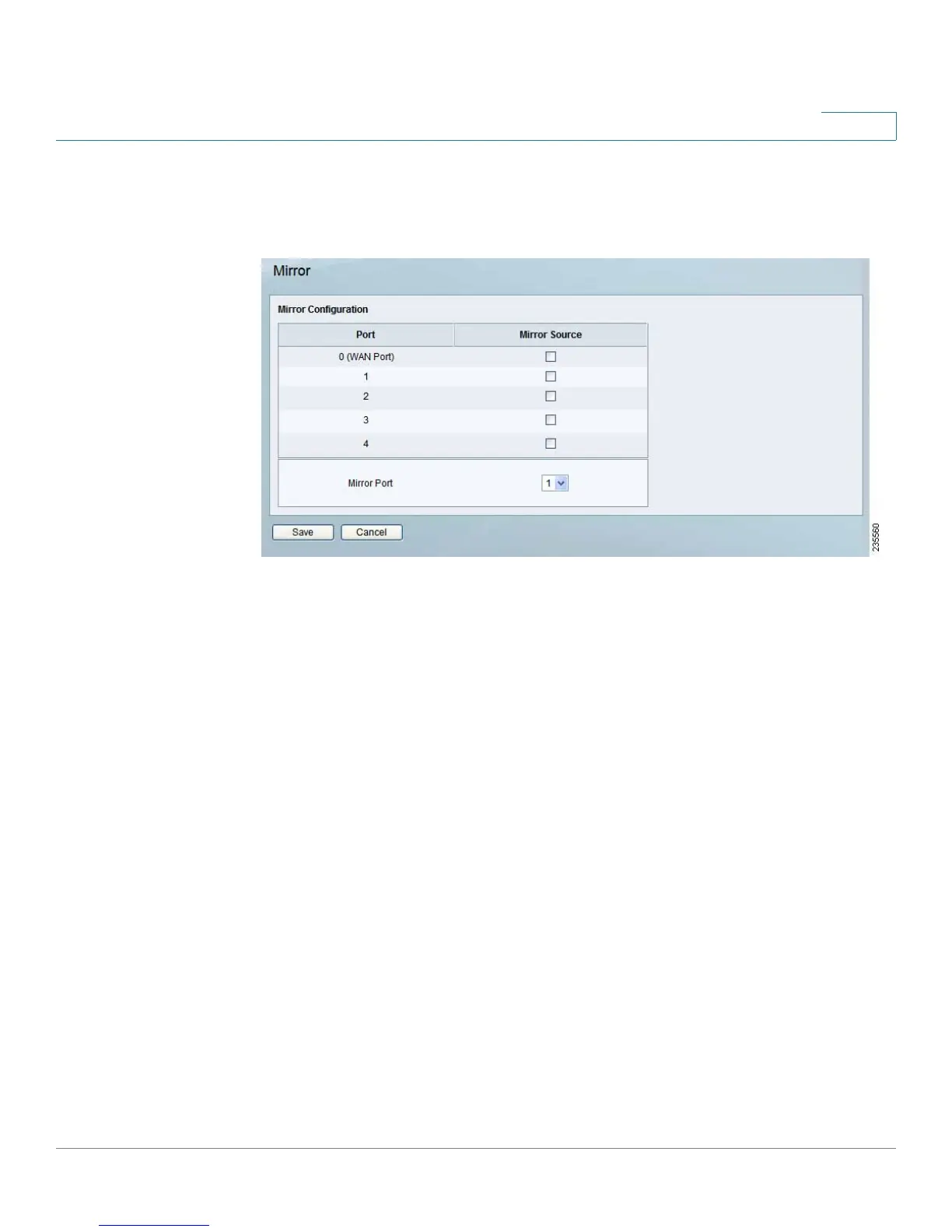

L2 Switch > Port Mirroring
L2 Switch > Port Mirroring
Mirror Source Use this to enable or disable source port mirroring for each port on
the router. To enable source port mirroring on a port, check the box next to that
port. To disable source port mirroring on a port, leave the box unchecked. The
default is disabled.
Mirror Port Select the mirror destination port from the drop-down menu.
