Setting Up and Configuring the Router
Firewall
Cisco RVS4000 Security Router with VPN Administrator Guide 48
5
Firewall > IP Based ACL
The IP-Based ACL window allows you to create an Access Control List (ACL) with
up to 50 rules. Each ACL rule denies or allows access to the network based on
various criteria including priority, service type, interface, source IP address,
destination IP address, day of the week, and time of day.

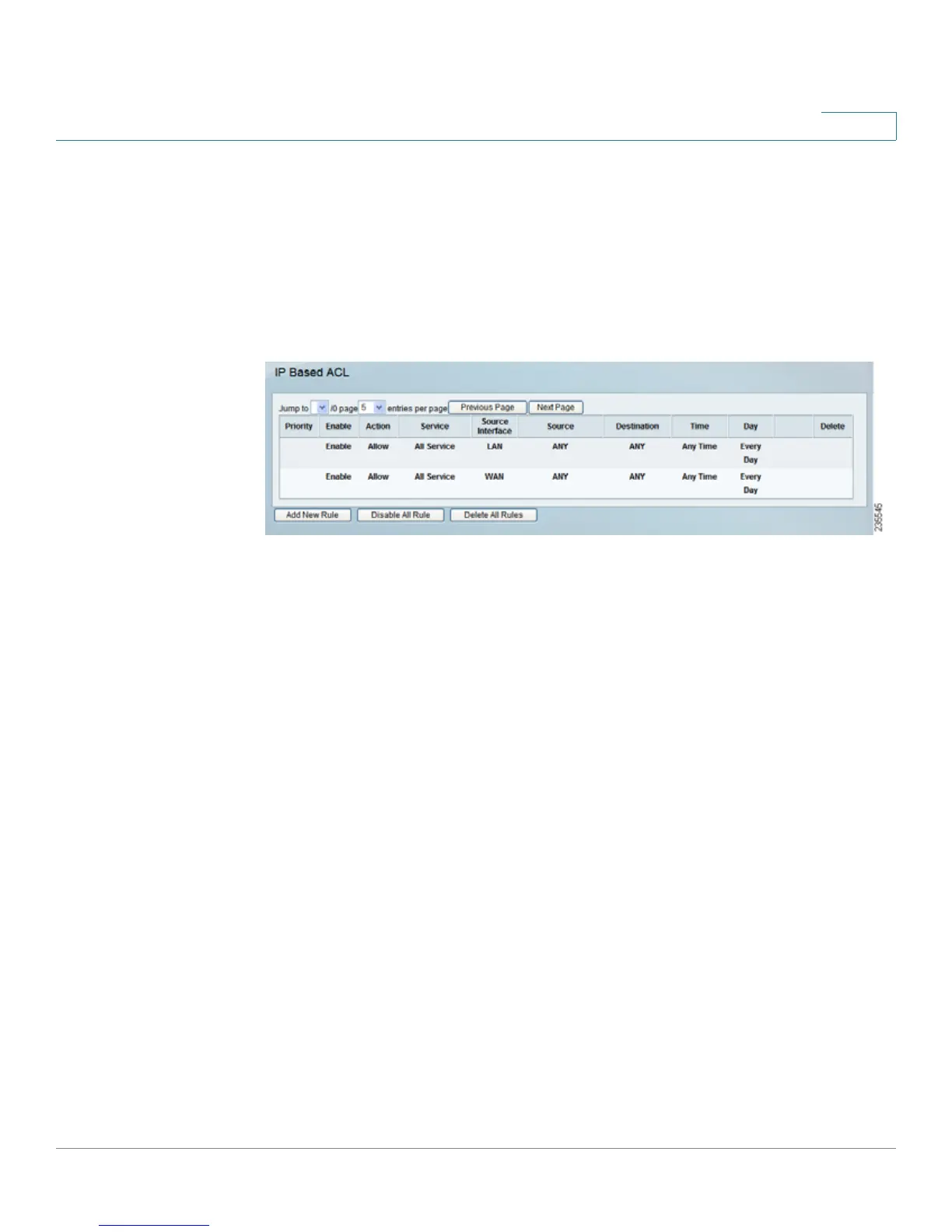

Firewall > IP Based ACL
Priority The rule’s priority.
Enable This indicates whether the rule is enabled or disabled.
Action The rule’s action, either Allow or Deny.
Service The service(s) to which the rule applies.
Source Interface The source interface, either WAN, LAN, or ANY.
Source The source IP address, which can be one specific IP address, ANY (all IP
addresses), a range of IP addresses, or a specific IP subnet.
Destination The destination IP address, which can be one specific IP address,
ANY (all IP addresses), a range of IP addresses, or a specific IP subnet.
Time The time of day when the rule is in effect, either Any Time (24 hours) or a
specific start and end time.
Day The day(s) of the week when the rule is in effect. This may be Any Day or a
user-specified set of days.
Edit button Click Edit at the end of a row to edit the associated rule.
Delete button Click Delete at the end of a row to delete the associated rule.
