Setting Up and Configuring the Router
Firewall
Cisco RVS4000 Security Router with VPN Administrator Guide 49
5
To add a new rule to the ACL rule table, click Add New Rule and the Edit IP ACL
Rule window appears. Follow the instructions in the section below to create a new
ACL rule. To disable all the rules without deleting them, click Disable All Rules. To
delete all the rules from the table, click Delete All Rules.

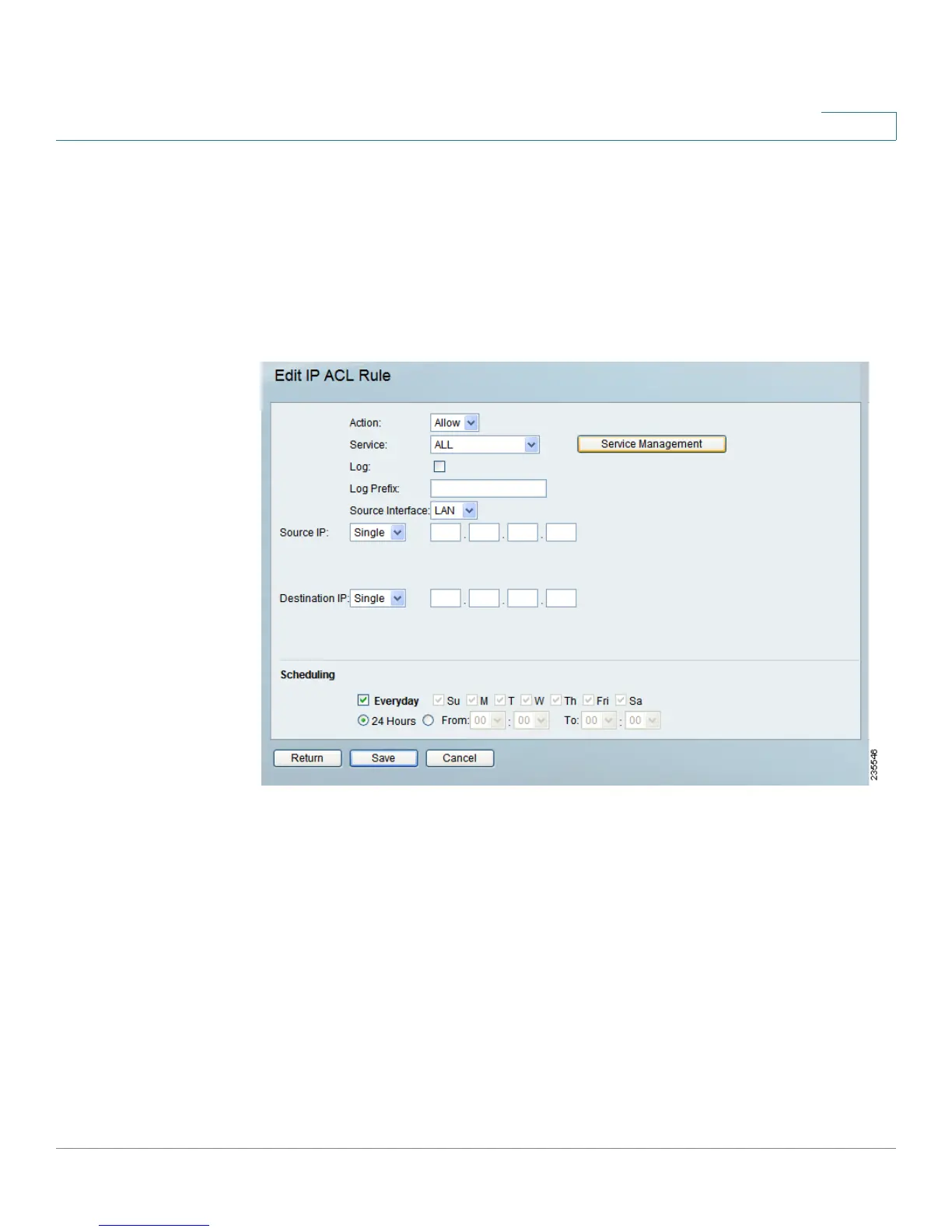

Editing IP ACL Rules
Editing IP ACL Rules
Action Select the desired action, Allow or Deny, from the drop-down menu.
Service Select the service types to which the rule applies. You can either select
one of the predefined services in the drop-down menu; select ALL to allow or
deny all types of IP traffic; or define a new service by clicking Service
Management to bring up the Service Management window, then the new
service’s Name, select the Type (TCP, UDP, or TCP/UDP), enter the Start Port and
Finish Port, then click Save. The new service appears in the drop-down menu on
the Edit IP ACL Rule window.
Log Select this option to log all traffic that is filtered by this rule.
Log Prefix Enter a text string to prepend to each matched event in the log.
