Setting Up and Configuring the Router

L2 Switch

Cisco RVS4000 Security Router with VPN Administrator Guide 94

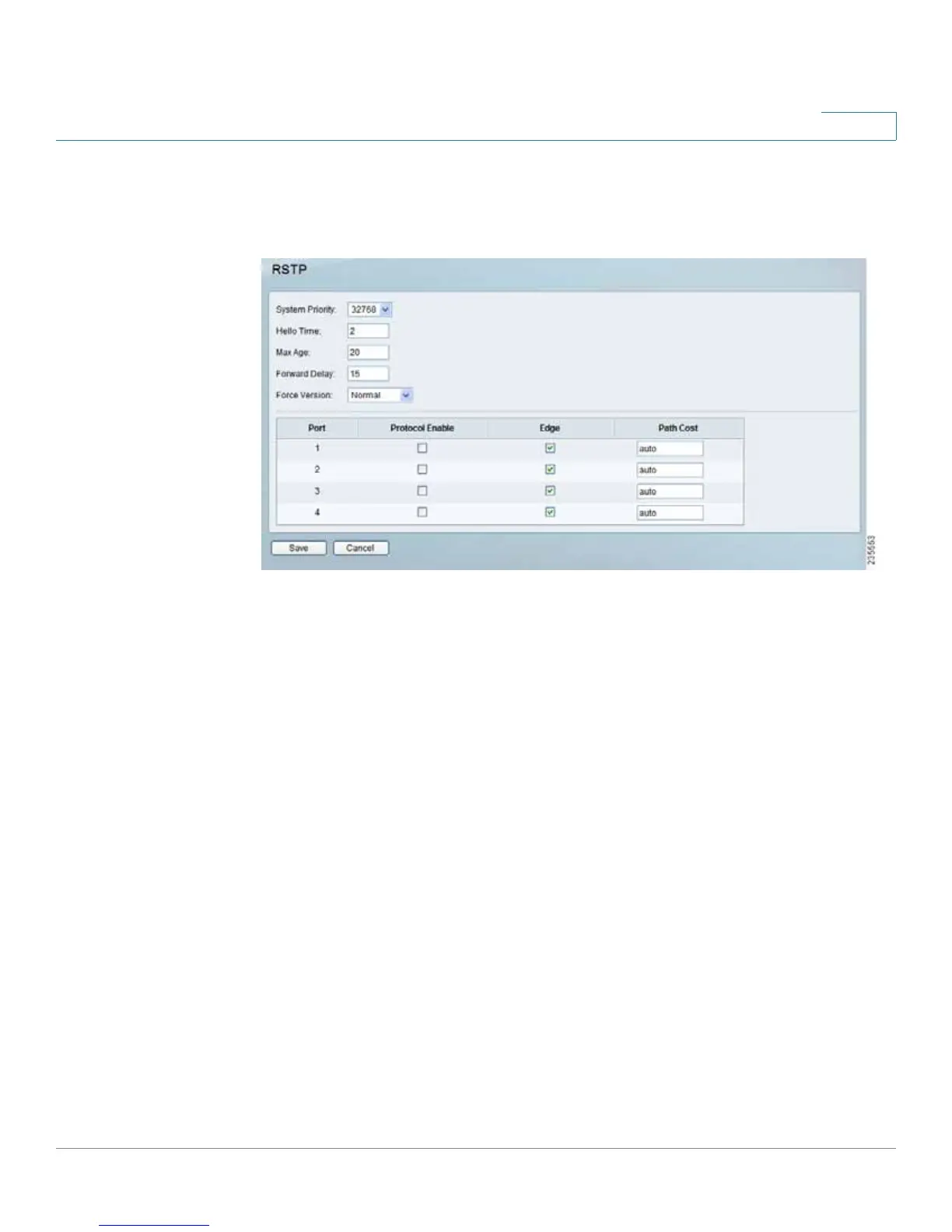

L2 Switch > RSTP

The RSTP (Rapid Spanning Tree Protocol) protocol prevents loops in the network

and dynamically reconfigures which physical links in a switch should forward

frames.

System Priority Enter the system priority from 0 to 61440 in increments of 4096.

Valid values are 0, 4096, 8192, 12288, 16384, 20480, 24576, 28672, 32768,

40960, 45056, 49152, 53248, 57344, and 61440. The lower the system priority,

the more likely the router is to become the root in the Spanning Tree. The default is

32768.

Hello Time Enter a number from 1 to 10. The default is 2.

Max Age Enter a number from 6 to 40. The default is 20.

Forward Delay Enter a number from 4 to 30. The default is 15.

Force Version The default protocol version to use. Select Normal (use RSTP) or

Compatible (compatible with old STP). The default is Normal.

Protocol Enable Check this box to enable RSTP on the associated port. The

default is unchecked (RSTP disabled).

Edge Check this box to specify that the associated port is an edge port (end

station). Uncheck the box to specify that the associated port is a link (bridge) to

another STP device. The default is checked (edge port).
