User Guide| LQ Series 4.0
In this example, LQ #1 will be left as Link-Master (default configuration) and LQ #2
will be linked to it.
4.2.1
How to create a Link-Group

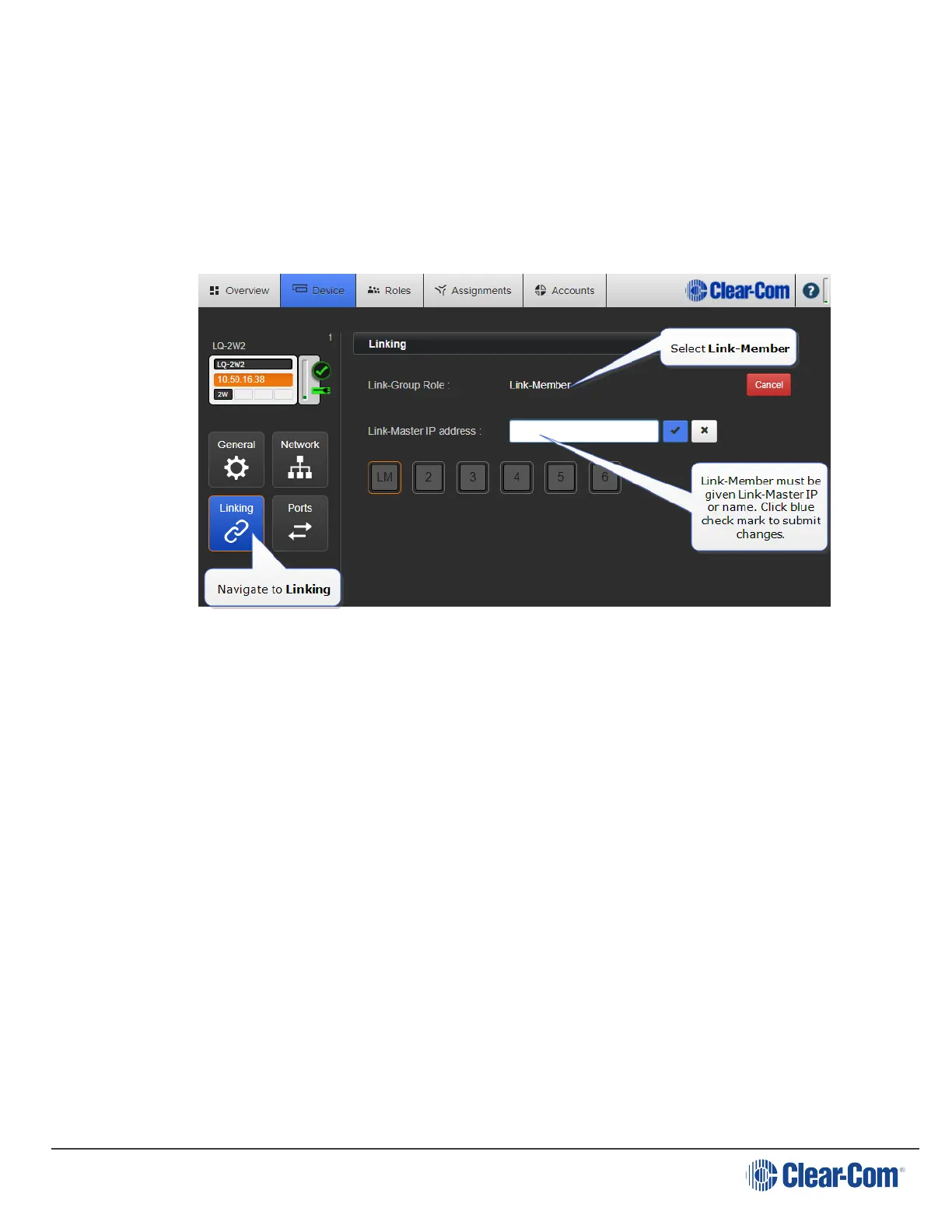

1. Navigate to Device > Linking on the CCM of LQ #2.
2. Click Change Role to Link-Member.
3. Within the Master IP address field, enter the IP address as displayed on the LQ
#1 device. Click on blue check mark or press <ENTER> key to submit.
4. The next available Device ID will be selected by default (highlighted in blue) but
can also be manually selected.
Page 49
