User Guide| LQ Series 4.0
12.6.5
Beltpack to radio on Call button press
1. Connect beltpack as above.
2. In the CCM, navigate to the port where the radio is connected (see Step 2.b of
Example #1 above). Select Channel Call Event on the GPO trigger.
3. The output will fire on any Call event in the Channel.
Note: You can also set the beltpack to do 'call on talk' by setting dip switch 5 on the
beltpack. See RS-701 datasheet available from the Clear-Com website,
www.clearcom.com.

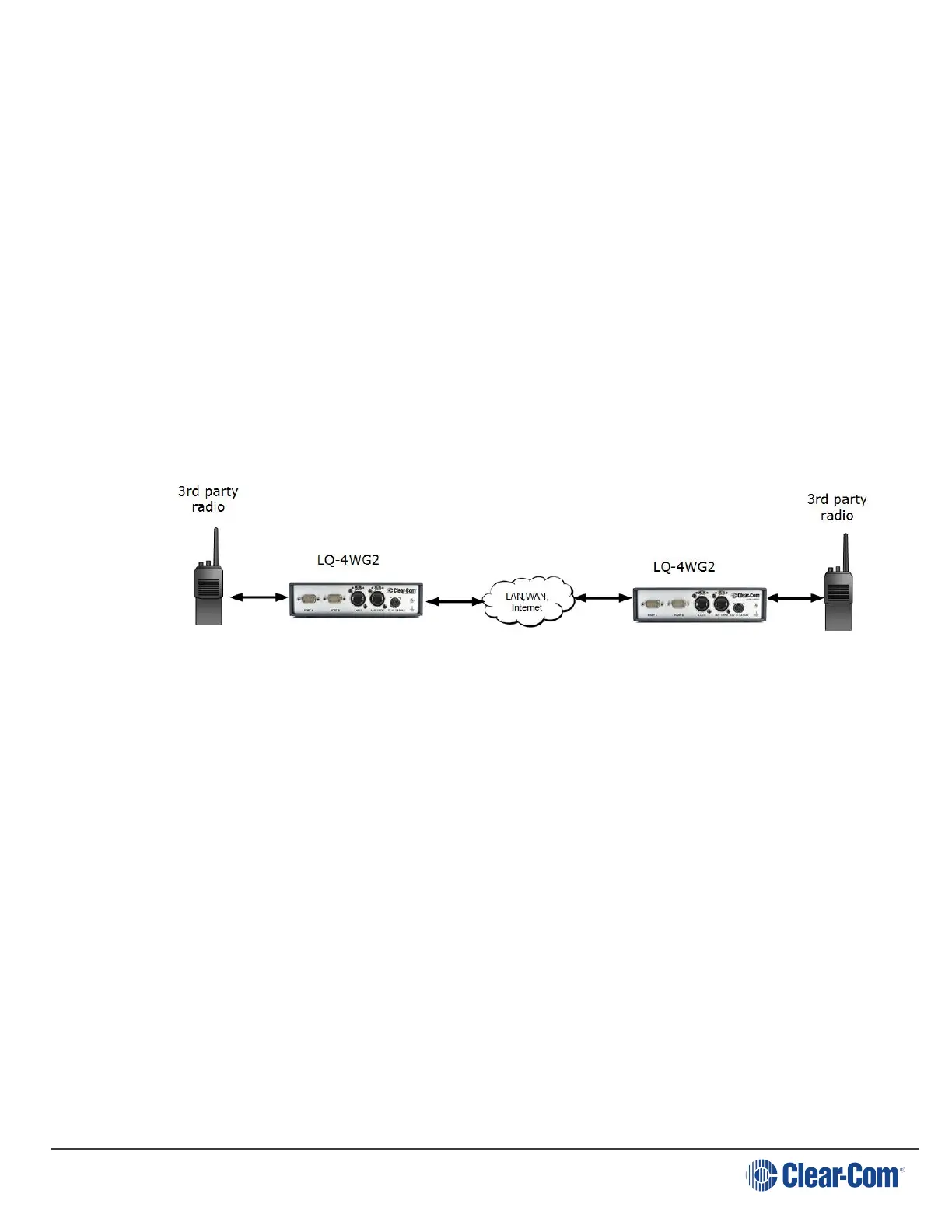

12.6.6 Setting up a 4-Wire radio GPIO over IP (LAN, WAN,
internet)
Show me.
As with the examples above; to program this set up:
1. Configure the GPI and GPO triggers on the ports that the radios are connected
to.
2. Bring both ports together into a Channel.
Page 96
