High power—Overview and specifications
NGT Transceiver System Technical Service Manual 213
Pinouts of the TCVR connector on the power amplifier

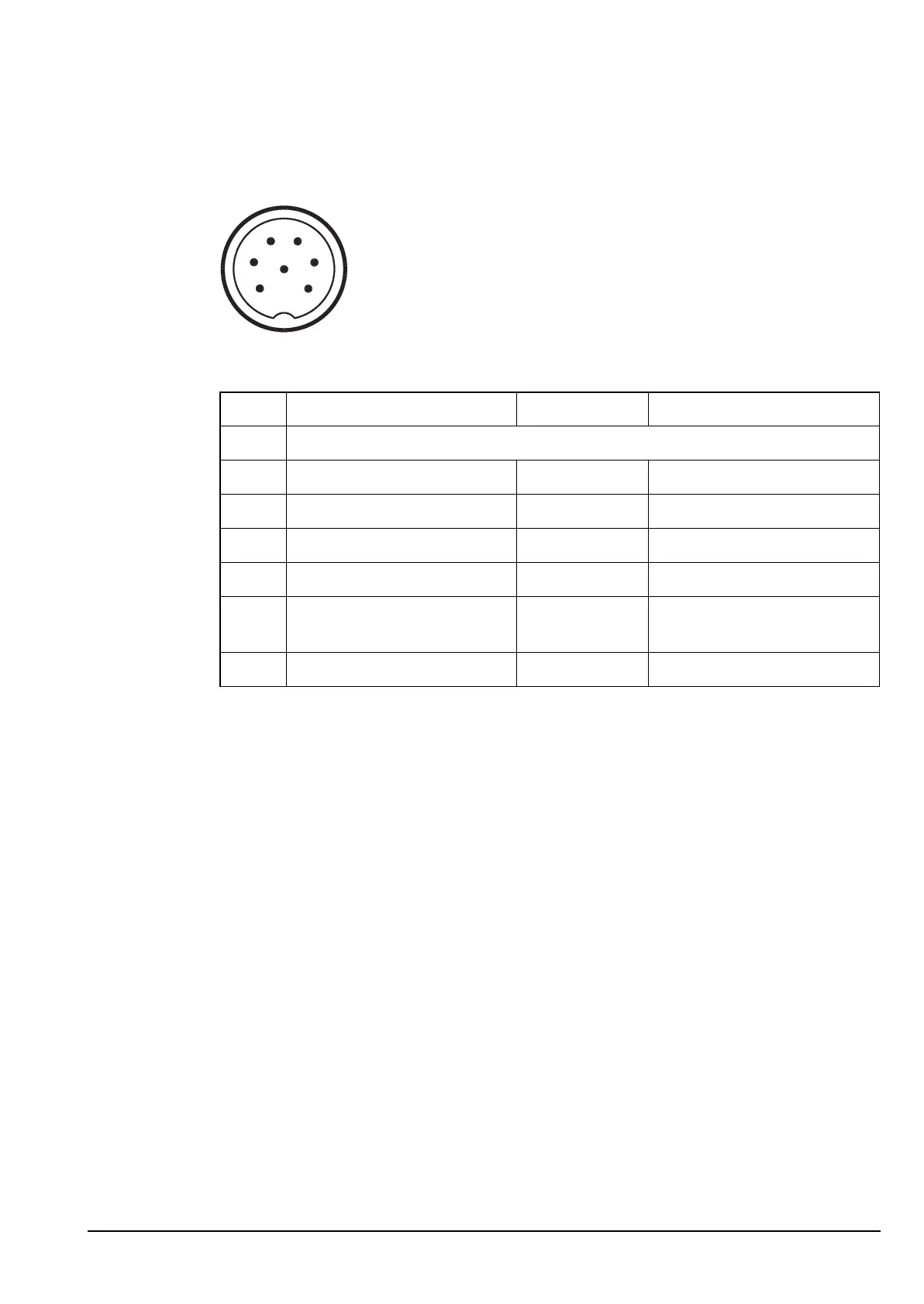

Figure 5: Front view of the TCVR connector on the power amplifier
Table 3: Pinouts of the TCVR connector on the power amplifier
Pin no. Function Input/output Signal level
1N/C
2 Ground 0 V
3 Data Input/output 5 V TTL logic
4 Clock Input 5 V TTL logic
5 PTT Input 5 V TTL logic active low
6 ALC Output 3.6 V when transmitting,
nominally
7 A rail Input 13.6 V nominal
1
2
3
4
5
6
7
