7. Slide the cover toward the bottom of the computer to disengage it (1), lift the cover up about one
inch, slide the cover toward the bottom of the computer until the cover (2) clears the bracket the
stand mounts to, and then lift the metal cover from the computer (3).

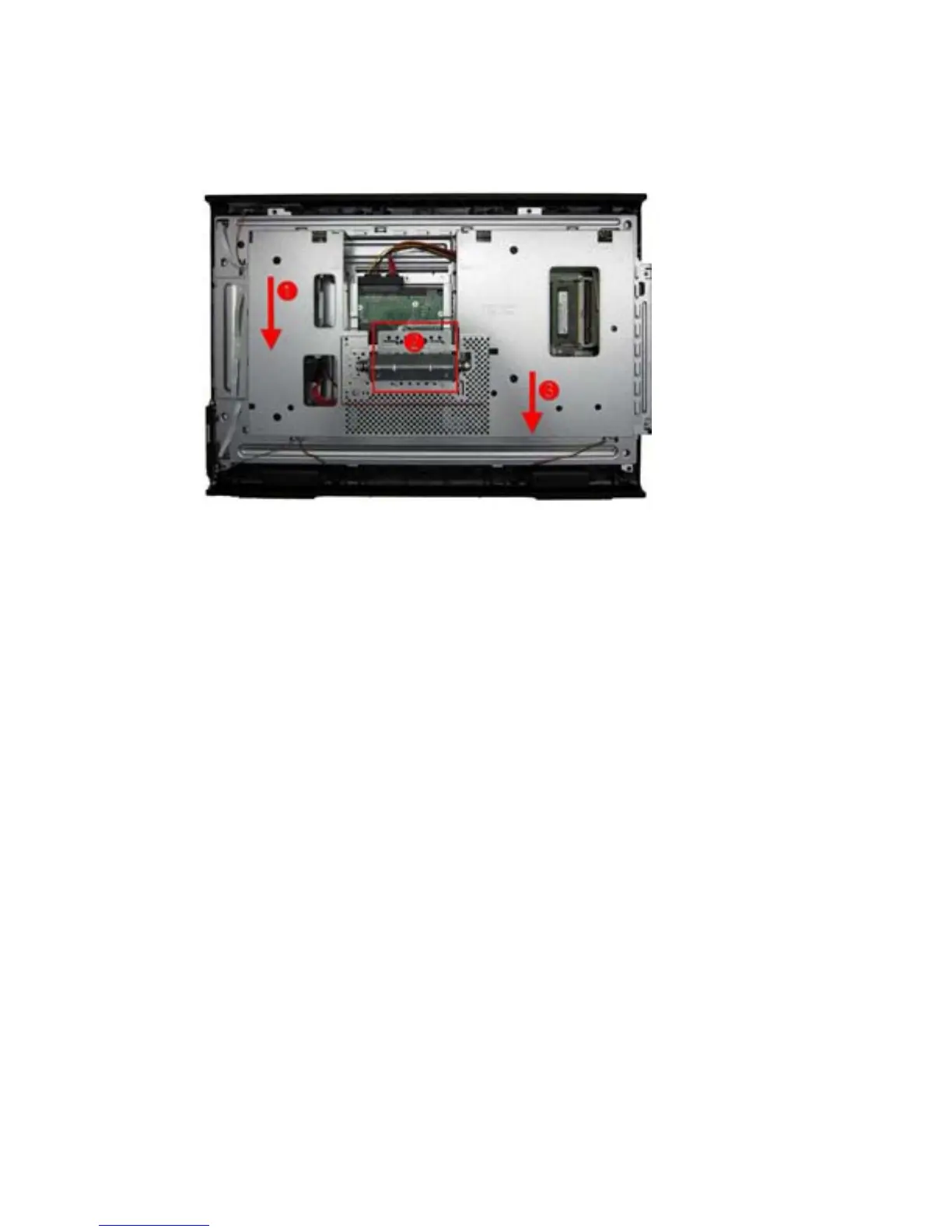

Figure 8-13 Removing the rear metal cover
To replace the rear metal cover, reverse the removal procedures.
Rear Metal Cover
119
