Speakers
Description Spare part number
Speakers 625119-001
There are two separate speakers mounted to the bottom of the computer with four screws, two for
each speaker. The speaker cables are secured by clips and tape on the base of the computer.
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer
on page 106).
2. Remove the stand (see
Stand on page 111).
3. Remove the hinge cover (see
Hinge Cover on page 112).
4. Remove the memory/optical drive cover (see
Memory/Optical Drive Cover on page 107).
5. Remove the rear cover (see
Rear Cover on page 113).
6. Remove the rear metal cover (see
Rear Metal Cover on page 118).
7. Disconnect the cable from the system board connector labeled SPK_CON (1).
8. Remove the four black Phillips PM 3.0x11.0 screws (2) that secure the speakers to the
computer.
9. Remove the speaker cables from the metal clips built into the computer (3).

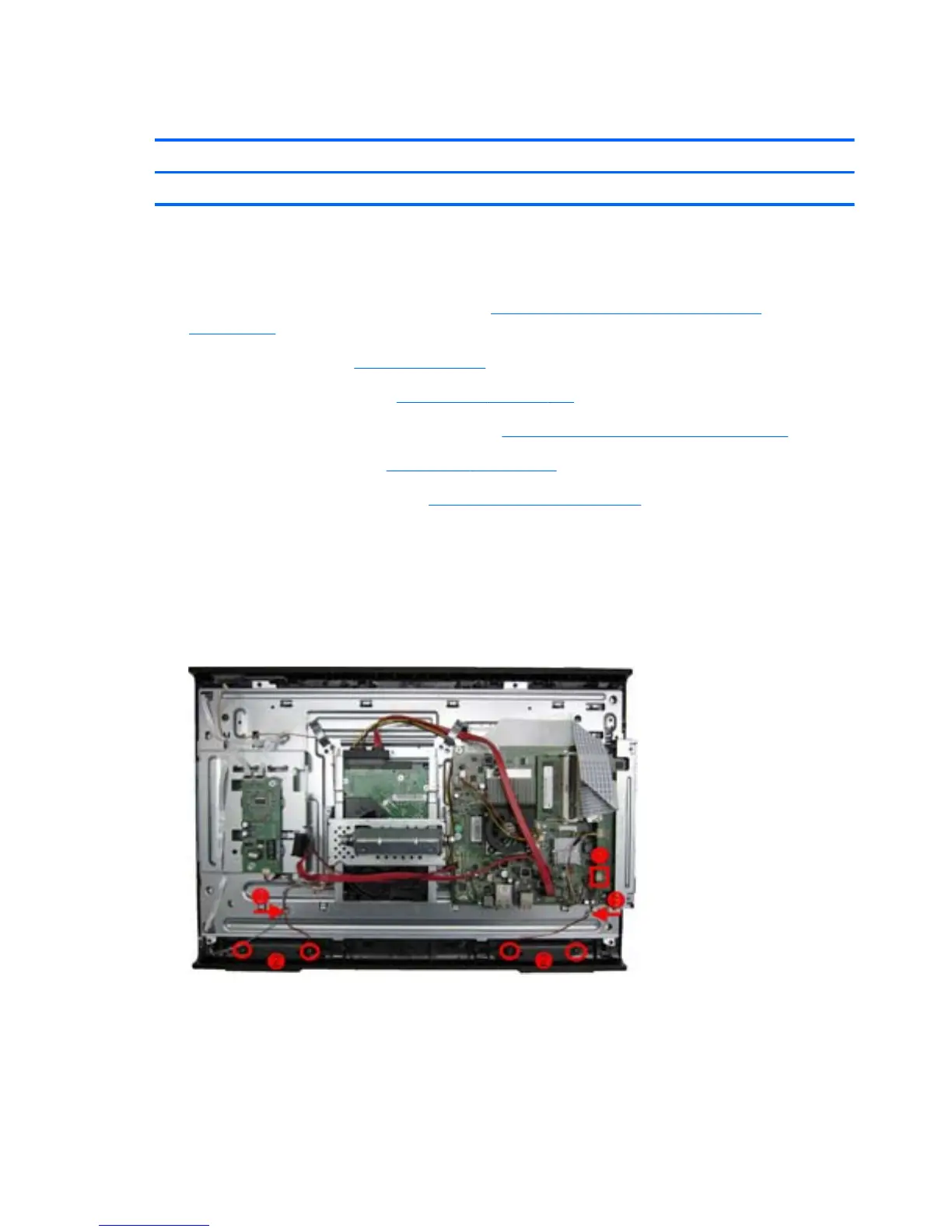

Figure 8-18 Removing the speakers
10. Remove the tape that secures the speaker wires to the computer, and then lift the speaker
assembly from the computer.
To replace the speakers, reverse the removal procedures.
124 Chapter 8 Removal and Replacement Procedures All-in One (AIO) Chassis
