Cable Routing
Description
Spare part number
Driving board cable
623378-001
Power/LED cable
623379-001
LVDS cable (15 inch; 380 mm)
623376-001
FFC cable, 11 inch (280 mm)
623383-001

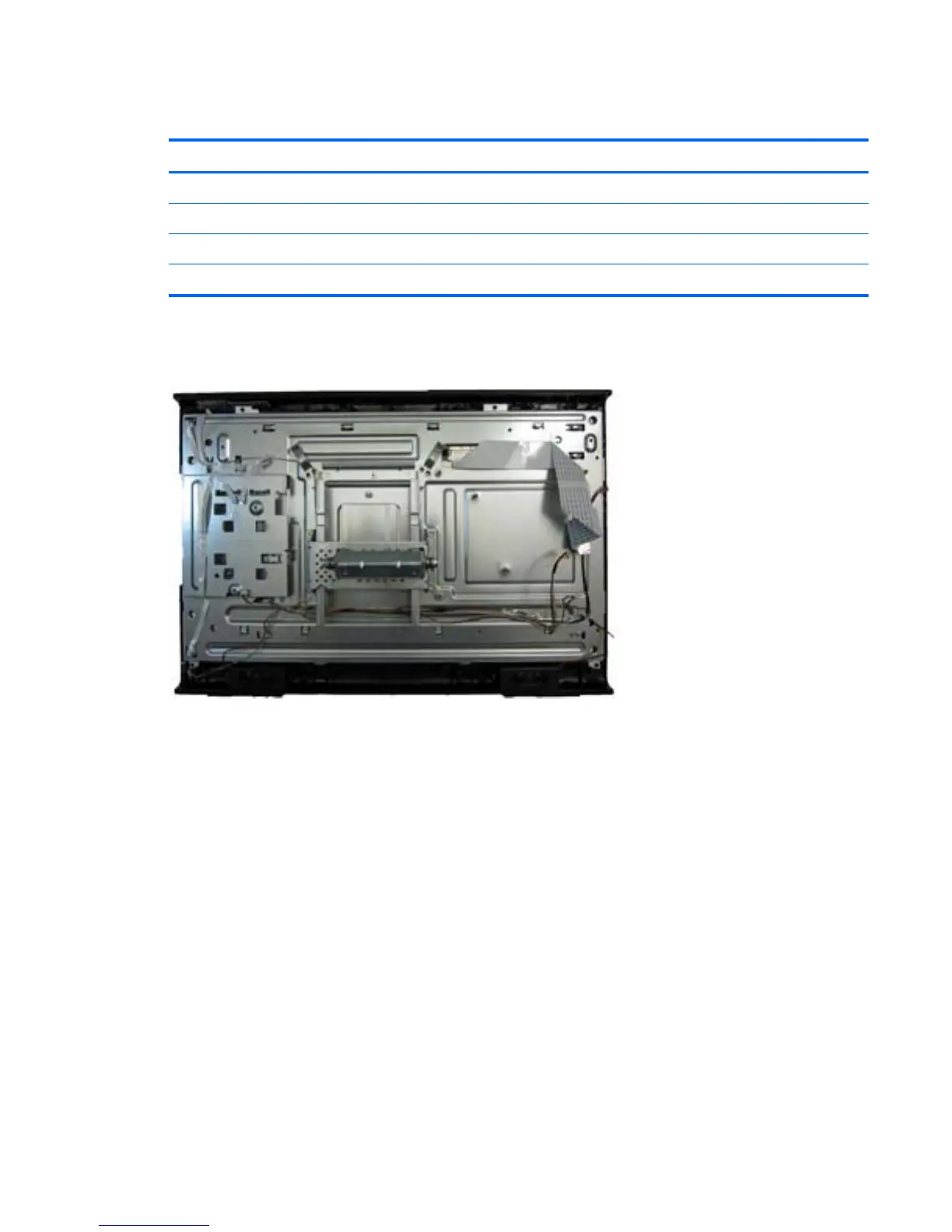

Refer to the following imag
e for proper routing o
f cables when reassemb
ling the computer.
Figure 8
-31
Cable ro
uting
Cable Routing
135
144
146
Table of Contents
Default Chapter
3
About this Book
3
Table of Contents
5
1 Installing and Customizing the Software
11
Installing the Operating System
11
Downloading Microsoft Windows Updates
12
Installing or Upgrading Device Drivers (Windows Systems)
12
Accessing Disk Image (ISO) Files
12
Protecting the Software
13
2 Computer Setup (F10) Utility
14
Compaq 315Eu MT Model - Computer Setup (F10) Utilities
14
Using Computer Setup (F10) Utilities
14
Computer Setup-Main
15
Computer Setup-Advanced
17
Computer Setup-Power
18
Computer Setup-Boot
18
Computer Setup-Exit
19
Compaq 100Eu SFF Model - Computer Setup (F1) Utilities
20
Using Computer Setup (F1) Utilities
20
Computer Setup-Main
21
Computer Setup-Advanced
22
Computer Setup-Power
23
Computer Setup-Boot
23
Computer Setup-Exit
24
Compaq 100Eu All-In-One Model - Computer Setup (F1) Utilities
25
Using Computer Setup (F1) Utilities
25
Computer Setup-Main
26
Computer Setup-Advanced
27
Computer Setup-Power
28
Computer Setup-Boot
28
Computer Setup-Exit
29
3 Serial ATA (SATA) Drive Guidelines and Features
30
SATA Hard Drives
30
SATA Hard Drive Cables
30
SATA Data Cable
30
SMART ATA Drives
31
Hard Drive Capacities
31
4 Identifying the Chassis, Routine Care, and Disassembly Preparation
32
Chassis Designation
33
Microtower
33
Small Form Factor
34
All-In One
34
Electrostatic Discharge Information
35
Generating Static
35
Preventing Electrostatic Damage to Equipment
35
Personal Grounding Methods and Equipment
36
Grounding the Work Area
36
Recommended Materials and Equipment
37
Operating Guidelines
37
Routine Care
38
General Cleaning Safety Precautions
38
Cleaning the Computer Case
38
Cleaning the Keyboard
39
Cleaning the Monitor
39
Cleaning the Mouse
39
Service Considerations
39
Power Supply Fan
40
Tools and Software Requirements
40
Screws
40
Cables and Connectors
40
Hard Drives
41
Lithium Coin Cell Battery
41
5 Illustrated Parts Catalog
42
Microtower Chassis Spare Parts
42
Computer Major Components
42
Sequential Part Number Listing
44
Small Form Factor Chassis Spare Parts
46
Computer Major Components
46
Sequential Part Number Listing
47
All-In One Chassis Spare Parts
49
Computer Major Components
49
Sequential Part Number Listing
51
6 Removal and Replacement Procedures Microtower (MT) Chassis
53
Preparation for Disassembly
53
Access Panel
54
Front Bezel
55
Memory
56
DDR3-SDRAM Dimms
56
Populating DIMM Sockets
57
Installing Memory Modules
58
Expansion Cards
60
Cable Management
64
Cable Connections
65
Drives
66
Drive Positions
66
Installing Additional Drives
67
System Board Drive Connections
68
Removing an Optical Drive
69
Removing the Hard Drive
70
Front I/O Assembly
72
Power Switch/Led Assembly
74
Heat Sink
75
System Fan
78
Processor
79
Power Supply
80
System Board
82
Battery
84
Type 1 Battery Holder
85
Type 2 Battery Holder
85
Type 3 Battery Holder
86
7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
87
Preparation for Disassembly
87
Access Panel
88
Front Bezel
89
Cable Management
90
Cable Connections
91
Memory Module
92
DDR3-SDRAM Dimms
92
Populating DIMM Sockets
93
Installing Sodimms
94
Drives
96
System Board Drive Connections
96
Removing an Optical Drive
97
Removing a Hard Drive
100
Expansion Cards
102
Front USB Panel
106
Card Reader
108
Power Switch/Led Assembly
109
Chassis Fan
112
System Board
113
Replacing the Battery
114
8 Removal and Replacement Procedures All-In One (AIO) Chassis
116
Preparing to Disassemble the Computer
116
Memory/Optical Drive Cover
117
Memory Module
118
Optical Drive
120
Stand
121
Hinge Cover
122
Rear Cover
123
Webcam Module
124
Power Button Board
126
Display Board
127
Rear Metal Cover
128
Hard Drive
130
Driver Board
132
Drive Cable Assembly
133
Speakers
134
Fan Sink
135
Display Cable
136
System Board and I/O Board Assembly
137
WLAN Module
140
Stand Bracket
142
Display Panel
143
Cable Routing
145
9 Restore and Recovery
146
Microsoft System Restore
146
System Recovery
146
System Recovery Options
147
System Recovery from the Windows Start Menu
147
System Recovery at System Startup
148
System Recovery from Recovery Discs
148
Recovery Discs
149
Choosing Recovery Discs
149
Creating Recovery Discs
150
10 Computer Diagnostic Features
151
Hewlett-Packard Vision Diagnostics
151
Accessing HP Vision Diagnostics
151
Survey Tab
152
Test Tab
153
Status Tab
153
History Tab
154
Errors Tab
154
Help Tab
155
Saving and Printing Information in HP Vision Diagnostics
155
Downloading the Latest Version of HP Vision Diagnostics
155
Protecting the Software
156
11 Troubleshooting Without Diagnostics
157
Safety and Comfort
157
Before You Call for Technical Support
157
Helpful Hints
158
Solving General Problems
160
Solving Diskette Problems
164
Solving Hard Drive Problems
166
Solving Media Card Reader Problems
168
Solving Display Problems
170
Solving Audio Problems
173
Solving Printer Problems
175
Solving Keyboard and Mouse Problems
176
Solving Hardware Installation Problems
179
Solving Network Problems
181
Solving Memory Problems
184
Solving CD-ROM and DVD Problems
185
Solving USB Flash Drive Problems
188
Solving Front Panel Component Problems
189
Solving Internet Access Problems
190
Solving Software Problems
193
Contacting Customer Support
194
12 POST Error Messages
195
POST Text Messages
195
Interpreting POST Diagnostic Audible Codes
196
13 Password Security and Resetting CMOS
198
Resetting the Password Jumper
198
Clearing and Resetting the CMOS
199
Appendix A Connector Pin Assignments
201
Ethernet BNC
201
Usb
201
Microphone
201
Headphone
202
Line-In Audio
202
Line-Out Audio
202
4-Pin Power (for CPU)
202
Monitor
203
24-Pin Power
203
PCI Express
204
PCI Express
205
Appendix B Power Cord Set Requirements
206
General Requirements
206
Japanese Power Cord Requirements
206
Country-Specific Requirements
207
Appendix C Specifications
208
Microtower Models
208
Small Form Factor Models
209
All-In One Models
210
Index
211
