Optical Drive
Description Spare part number
DVD±RW drive 623387-001
The optical drive is located on the left side of the computer (view from the rear) under the memory/
optical drive cover. A green lever releases the drive, which slides out the side of the computer. The
drive uses one combination data/power connector.
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer
on page 106).
2. Remove the memory/optical drive cover (see
Memory/Optical Drive Cover on page 107).
3. Disconnect the dual connector from the drive (1).
4. Pull the green release lever downward (2).
5. Slide the drive from the computer (3).

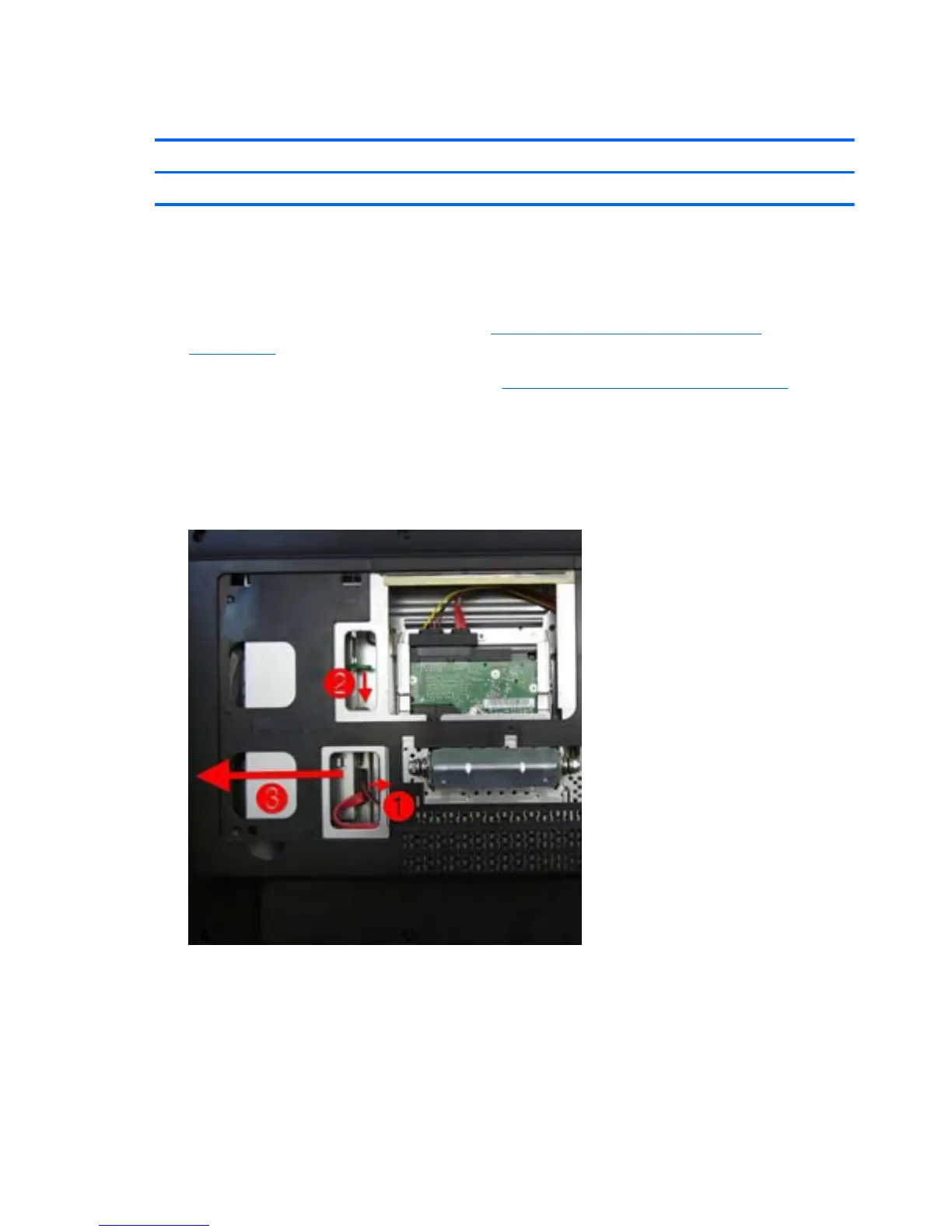

Figure 8-4 Removing the optical drive
To install an optical drive, reverse the removal procedures.
110 Chapter 8 Removal and Replacement Procedures All-in One (AIO) Chassis
