Chassis Fan
Description Spare part number
Fan 622195-001
The chassis fan is mounted to the back inner wall of the computer chassis. The fan is secured with
four screws.
1. Prepare the computer for disassembly (
Preparation for Disassembly on page 77).
2. Remove the access panel (
Access Panel on page 78).
3. Disconnect the fan control cable from the maroon system board connector labeled SP1.
4. From the rear of the unit, remove the four black Phillips screws that secure the fan to the
chassis.

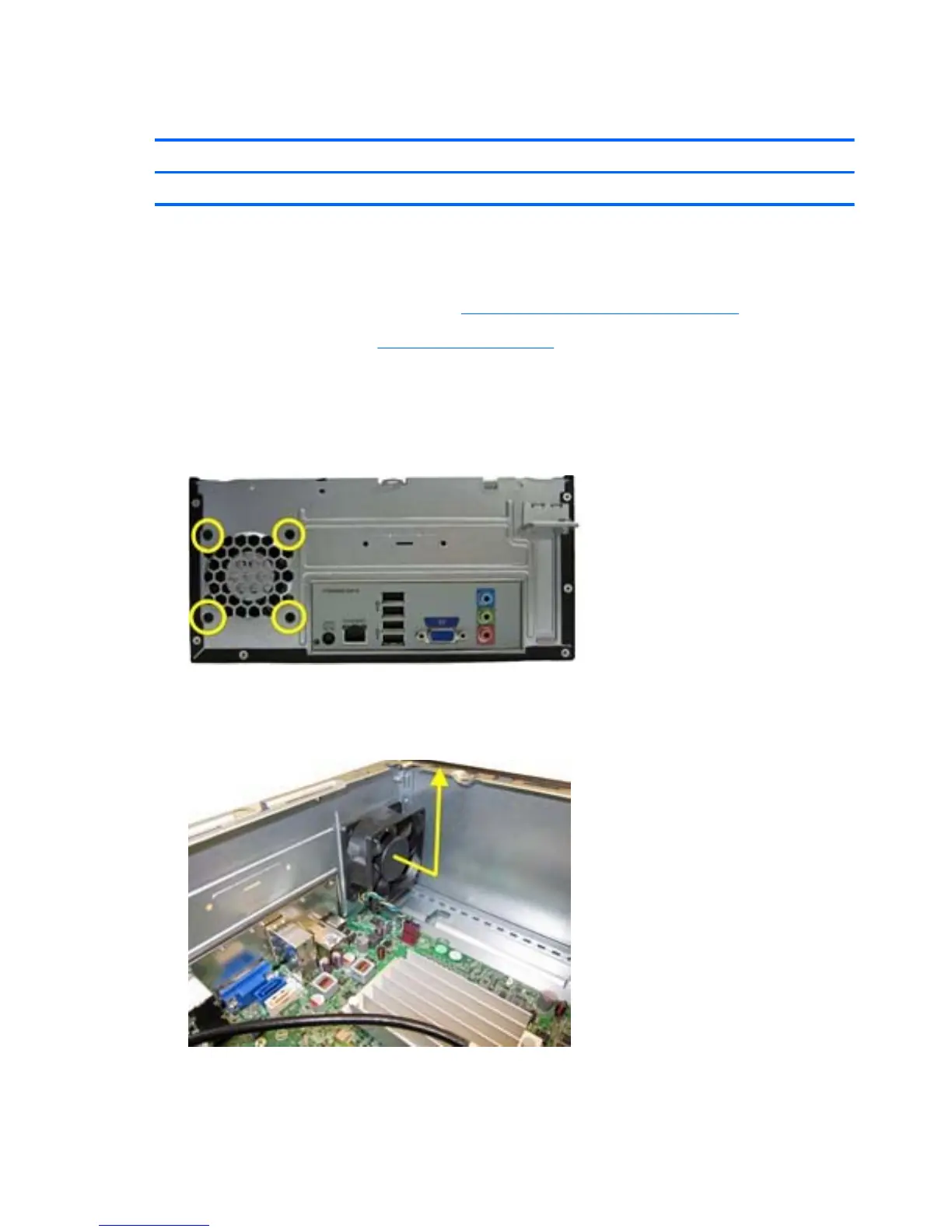

Figure 7-28 Removing the Fan Screws
5. From the inside of the chassis, rotate the fan so it clears the edge of the chassis, and then lift the
fan out of the chassis.
Figure 7-29 Removing the Fan from the Chassis
To install the fan assembly, reverse the removal procedure. Be sure to orient the air flow out of the
unit.
102 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
