Display Board
Description Spare part number
Display board 624579-001
The display board is located on the bottom/left of the computer (viewed from the back). The board is
held in place with two screws.
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer
on page 106).
2. Remove the stand (see
Stand on page 111).
3. Remove the hinge cover (see
Hinge Cover on page 112).
4. Remove the memory/optical drive cover (see
Memory/Optical Drive Cover on page 107).
5. Remove the outer rear cover (see
Rear Cover on page 113).
6. Remove the two silver PM 2.5x5.0 screws that secure the board to the computer (1).
7. Lift the board from the computer as far as the cable will allow (2).
8. Disconnect the cable from the board (3).
NOTE: Be careful not to damage the cable when disconnecting it from the board. Do not pull
on the wires.

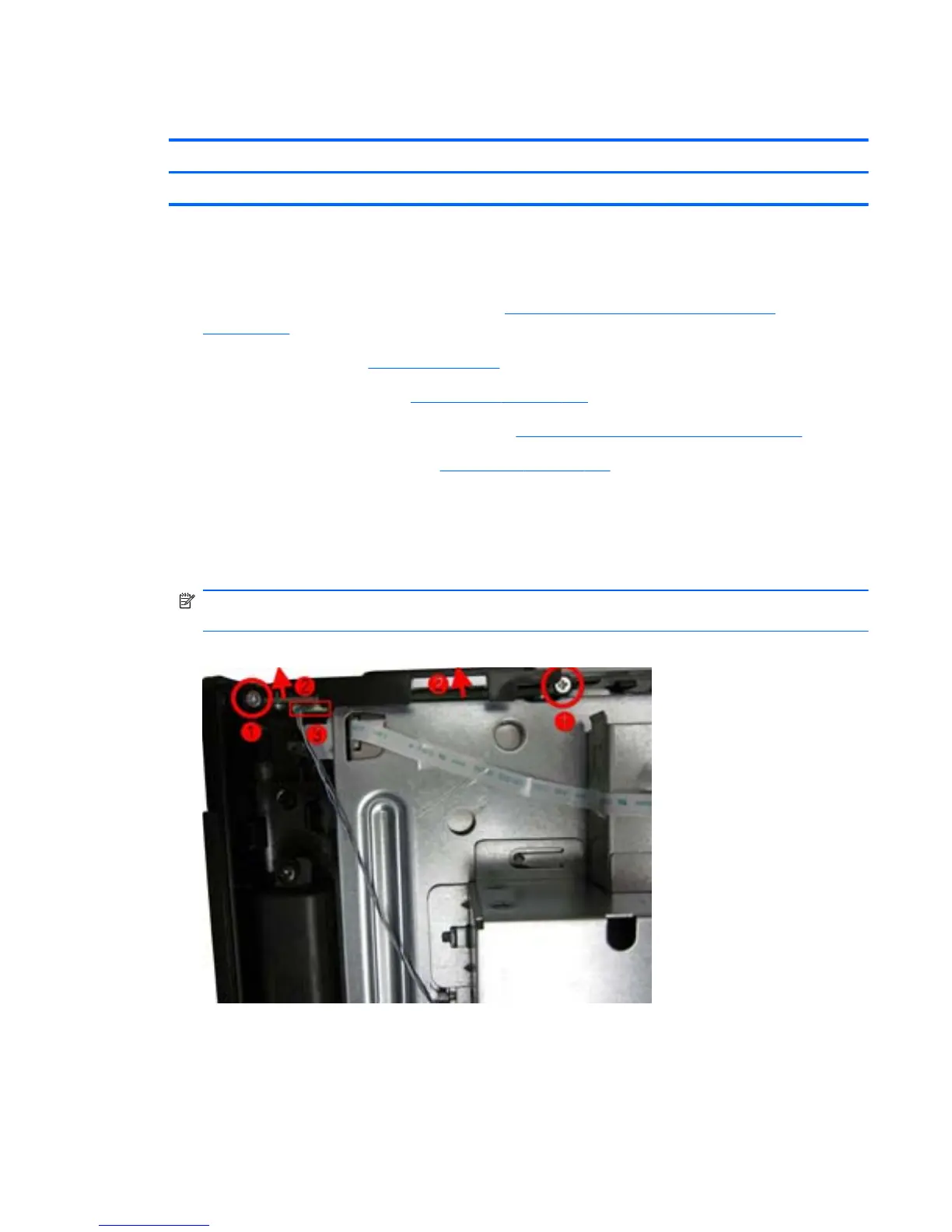

Figure 8-11 Removing the display board
To install the display board, reverse the removal procedures.
