Access Panel
Description Spare part number
Access panel 623386-001
The access panel is held in place with two screws.
1. Prepare the computer for disassembly (
Preparation for Disassembly on page 77).
CAUTION: Before removing the computer access panel, ensure that the computer is turned off
and that the power cord is disconnected from the electrical outlet.
2. Remove the two screws (1) that secure the access panel to the computer chassis.
3. Slide the access panel back about 1.3 cm (1/2 inch) (2), and then lift it off the unit.
NOTE: You may want to lay the computer on its side to install internal parts.

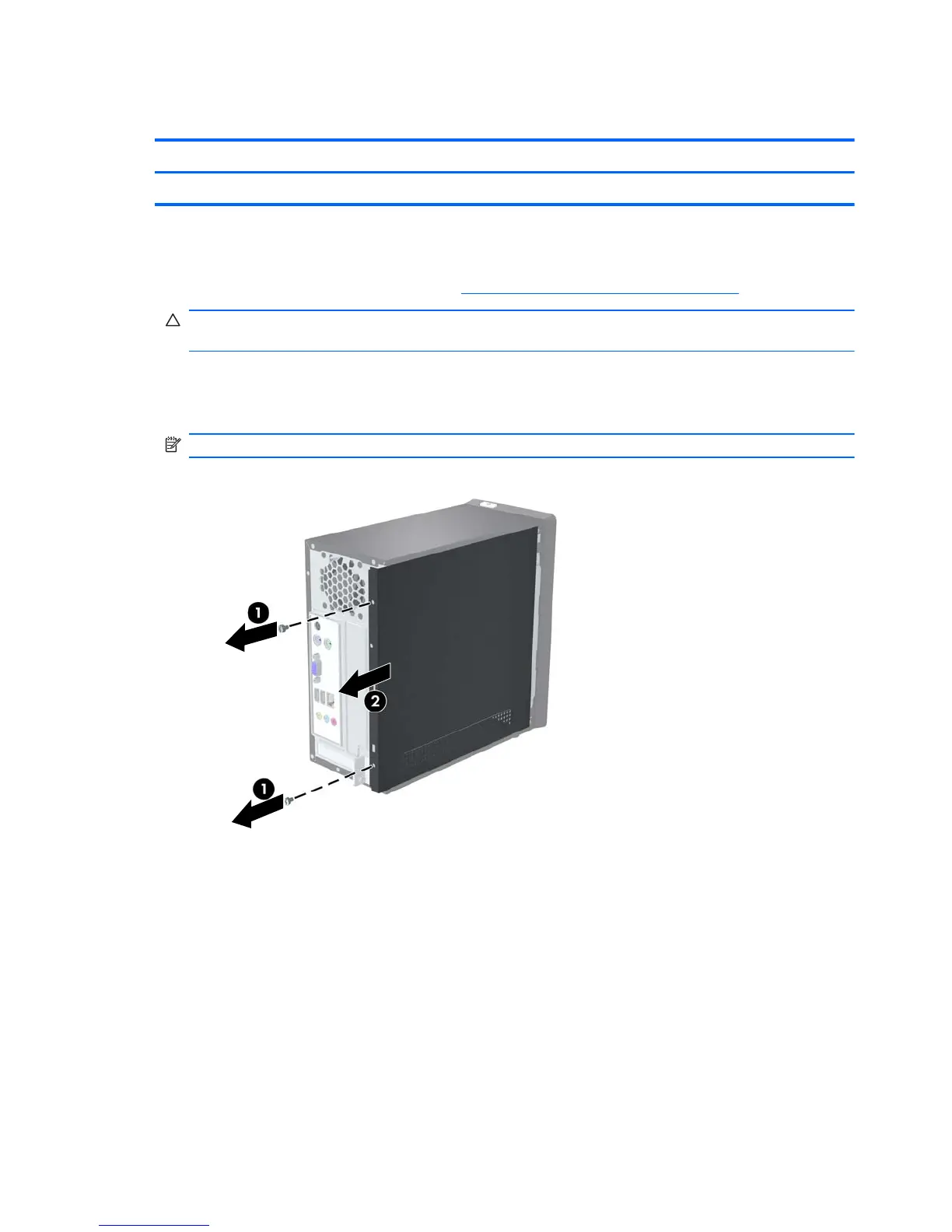

Figure 7-1 Removing the access panel
To install the access panel, reverse the removal procedure.
78 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
