Stand Bracket
Description Spare part number
Stand bracket not spared
The stand bracket is secured to the computer using four screws.
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer
on page 106).
2. Remove the stand (see
Stand on page 111).
3. Remove the hinge cover (see
Hinge Cover on page 112).
4. Remove the memory/optical drive cover (see
Memory/Optical Drive Cover on page 107).
5. Remove the rear cover (see
Rear Cover on page 113).
6. Remove the rear metal cover (see
Rear Metal Cover on page 118).
7. Remove the system board (see
System Board and I/O Board Assembly on page 127).
8. Remove the four silver Torx 3.0x7.0 screws (1) that secure the bracket to the computer, and
then lift the bracket from the computer (2).

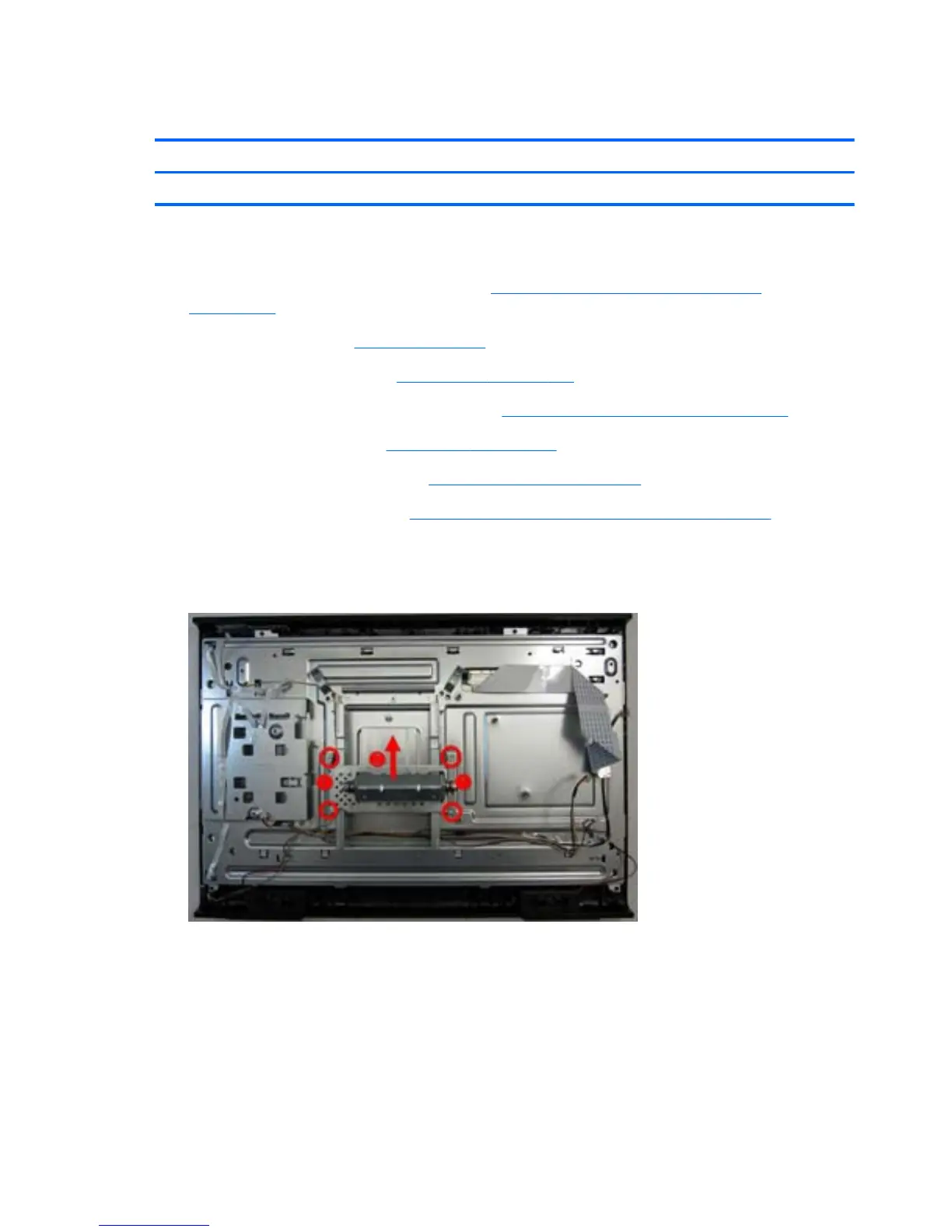

Figure 8-28 Removing the stand bracket
To install a stand bracket, reverse the removal procedures.
