Access Panel
Description Spare part number
Access panel not spared
The access panel is secured with one screw.
1. Prepare the computer for disassembly (
Preparation for Disassembly on page 43).
2. Loosen the screw (1) that secures the access panel to the computer chassis.
3. Slide the access panel back (2) about 1.3 cm (1/2 inch), then lift it off the unit.
NOTE: You may want to lay the computer on its side to install internal parts. Be sure the side
with the access panel is facing up.

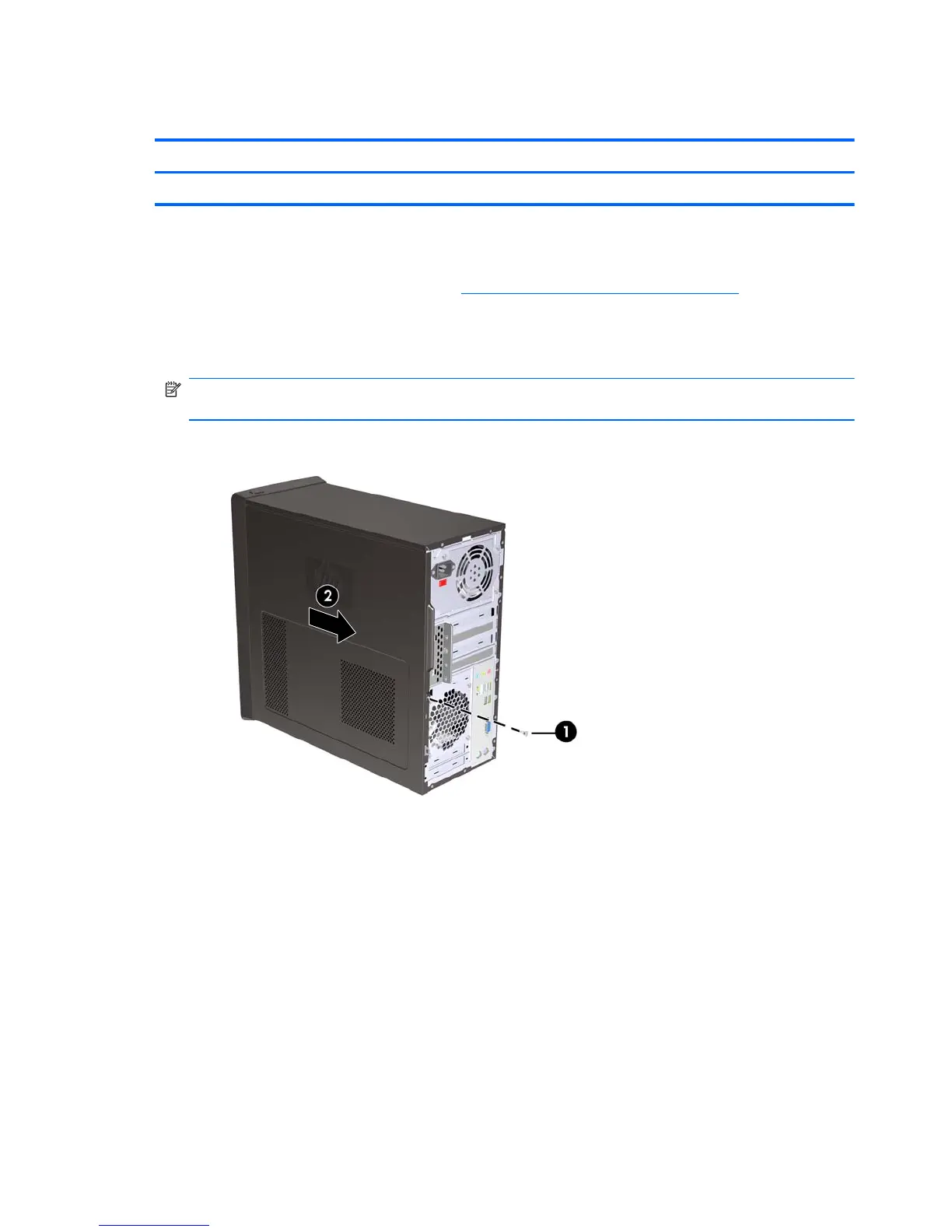

Figure 6-1 Removing the Computer Access Panel
To replace the access panel, reverse the removal steps.
44 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis
