Stand
Description Spare part number
Stand 625595-001
The stand is mounted in a fixed position on the back of the computer. It is secured with two screws.
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer
on page 106).
2. Remove the two Torx screws (1) that secure the stand to the computer, and then lift the stand off
the computer (2).

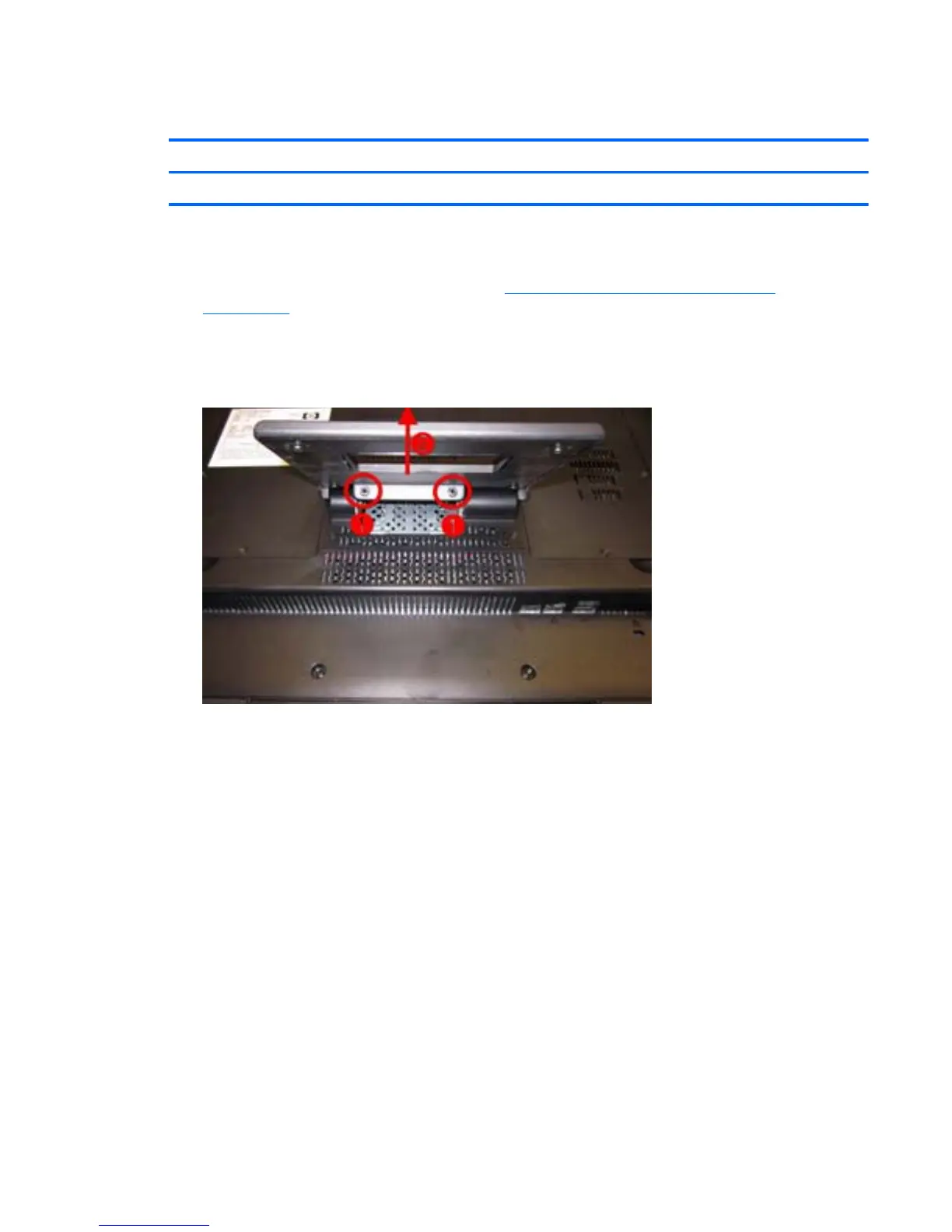

Figure 8-5 Removing the stand
To replace the stand, reverse the removal procedures.
Stand
111
