System Board Drive Connections
Refer to the following illustrations and tables to identify the system board drive connectors.
System Board Drive Connections

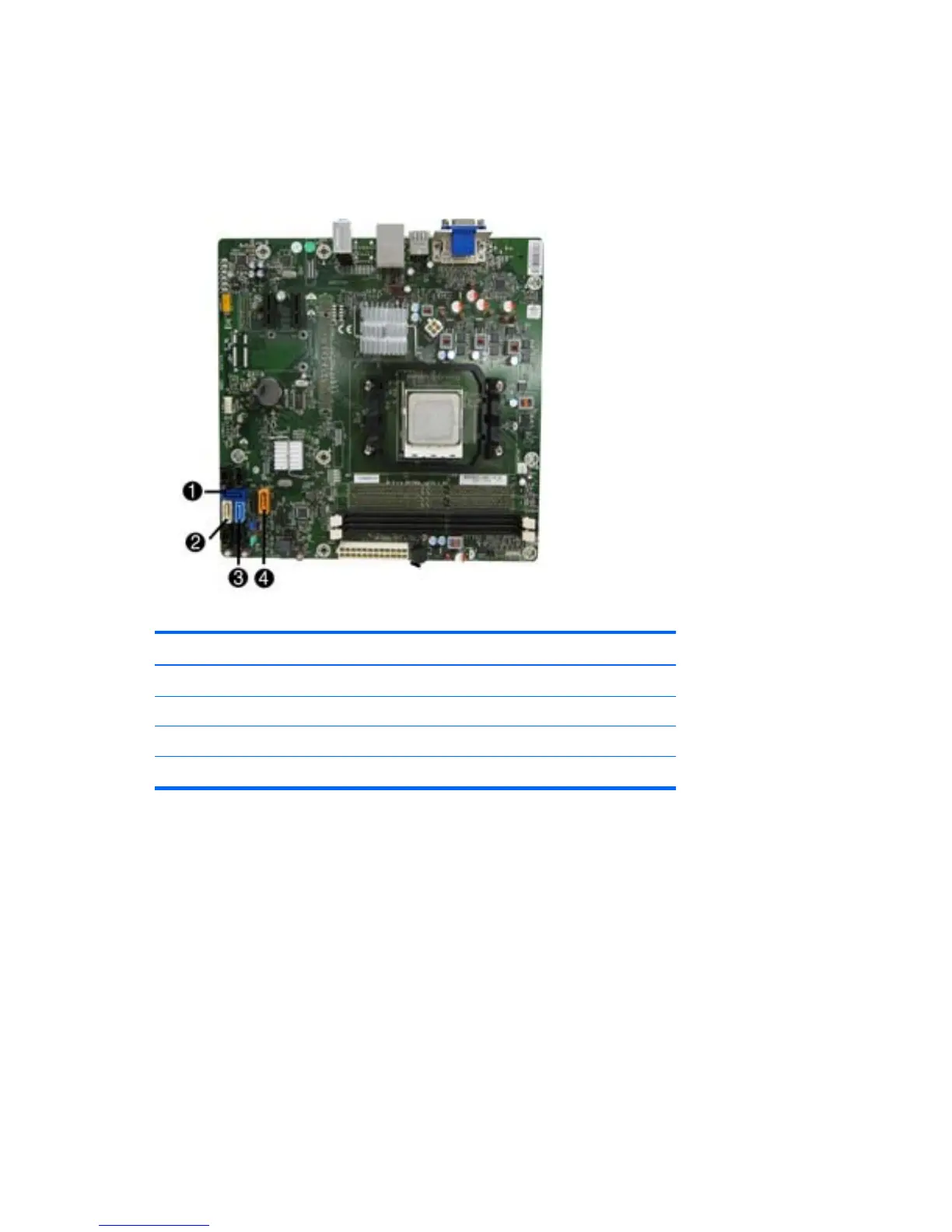

Figure 6-12 System Board Drive Connections
Table 6-3 System Board Drive Connections
No. System Board Connector Drive Color
1 SATA0 Hard drive dark blue
2 SATA1 Optical drive white
3 SATA2 not used light blue
4 SATA3 not used orange
58 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis
