When installing the assembly, insert the bottom tabs into the associated slots in the chassis (1), and
then rotate the assembly upward until the side tabs snap into position (2).

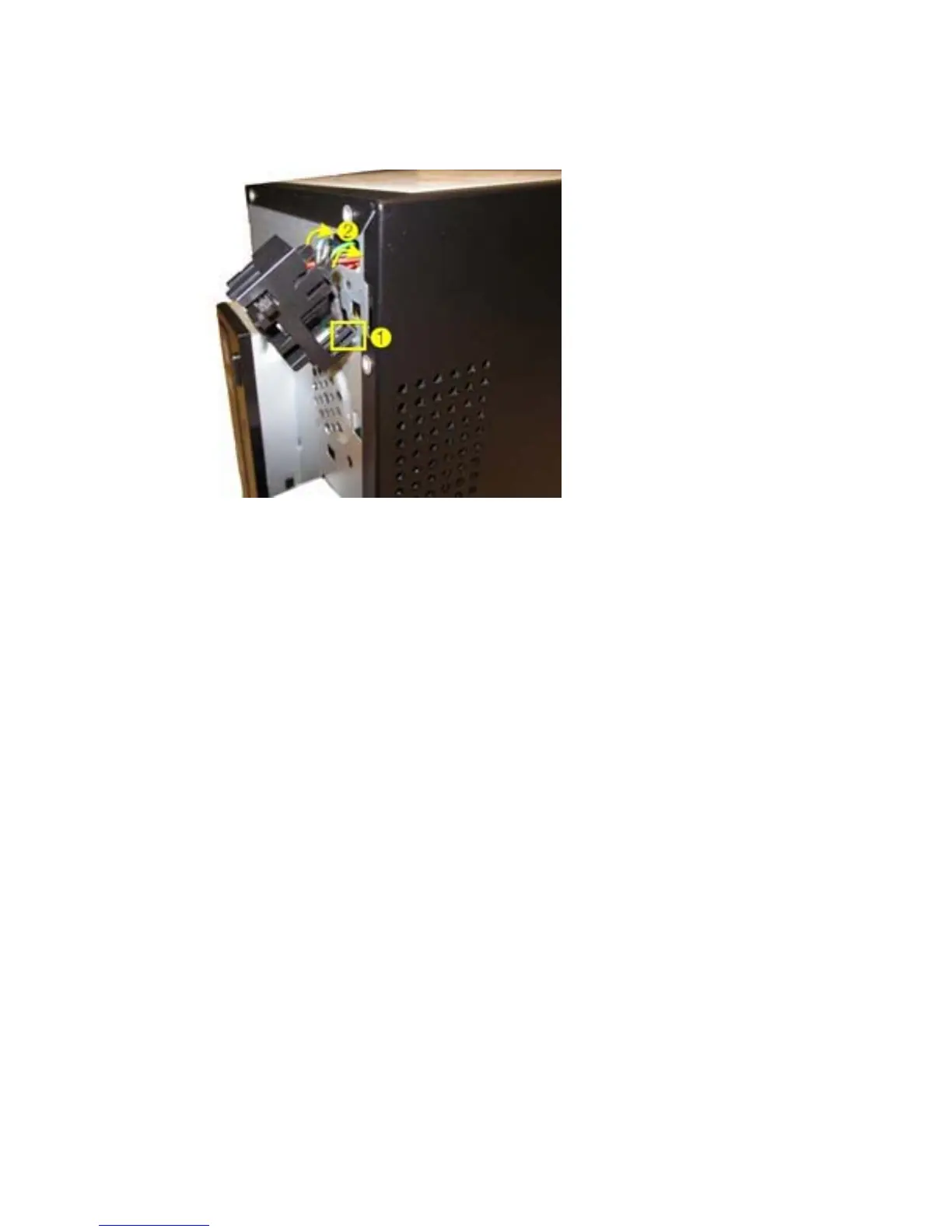

Figure 7-27 Installing the Power Switch/LED Assembly
Power Switch/LED Assembly
101
