7. To remove the power button assembly, perform the following steps simultaneously:
a. Squeeze the tabs on both sides on the assembly (1).
b. While pressing the two tabs, rotate the assembly downward, and then pull the assembly
away from the chassis (2) while guiding the wires through the hole in the front of the
chassis.

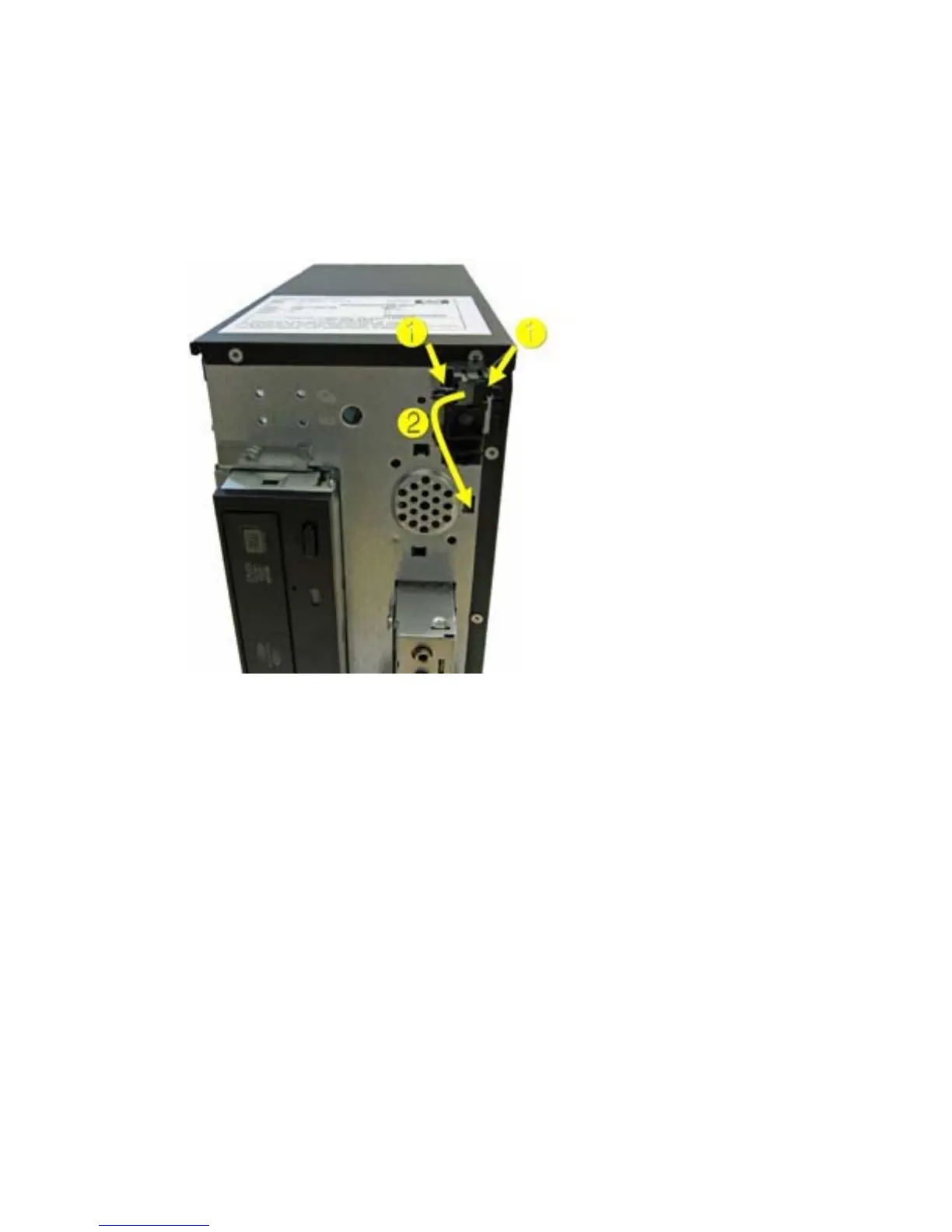

Figure 7-26 Removing the power switch/LED assembly
To reinstall the assembly, reverse the removal procedures.
100 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
