3 on the right side
●
2 on the left side

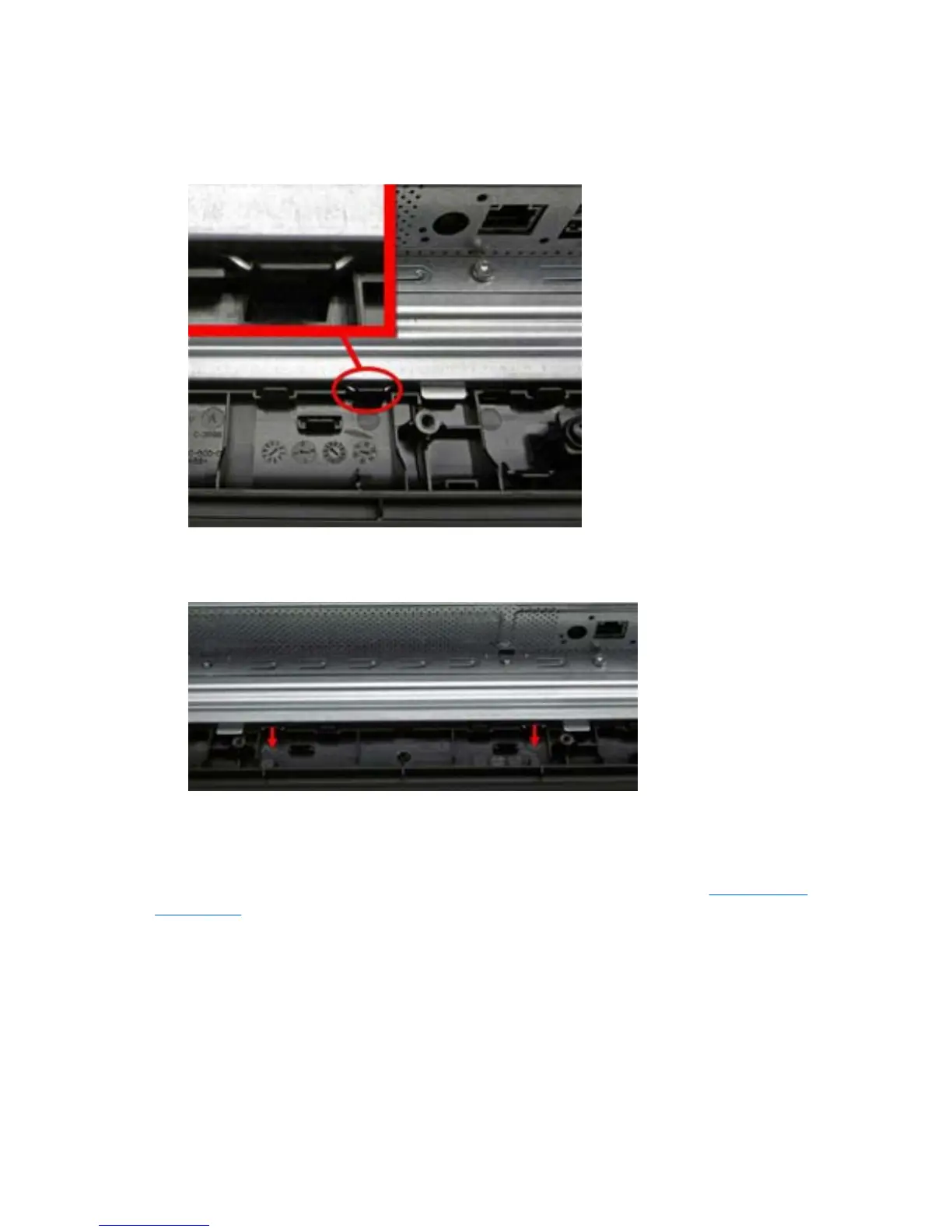

Figure 8-29 Display panel tabs
11. Pull back on each clip to disengage the clip from the display enclosure.
Figure 8-30 Loosening display panel tabs
12. Lift the display panel from the enclosure.
To install a display panel, reverse the removal procedures.
Make sure all cables are correctly routed when reassembling the computer. See
Cable Routing
on page 135 for an image that shows how to correctly route the cables.
134 Chapter 8 Removal and Replacement Procedures All-in One (AIO) Chassis
