Setting Jumpers A-3
A.2
Remove Power from the System
Be sure to remove the AC power cord from either the wall outlet
or the system cabinet. Power remains active in the RMC PIC
processor when the system is powered off using only the control
panel power switch. Also the CPU and memory modules have
parts that operate at high temperatures. Wait 2 minutes after
power is removed before touching any module.

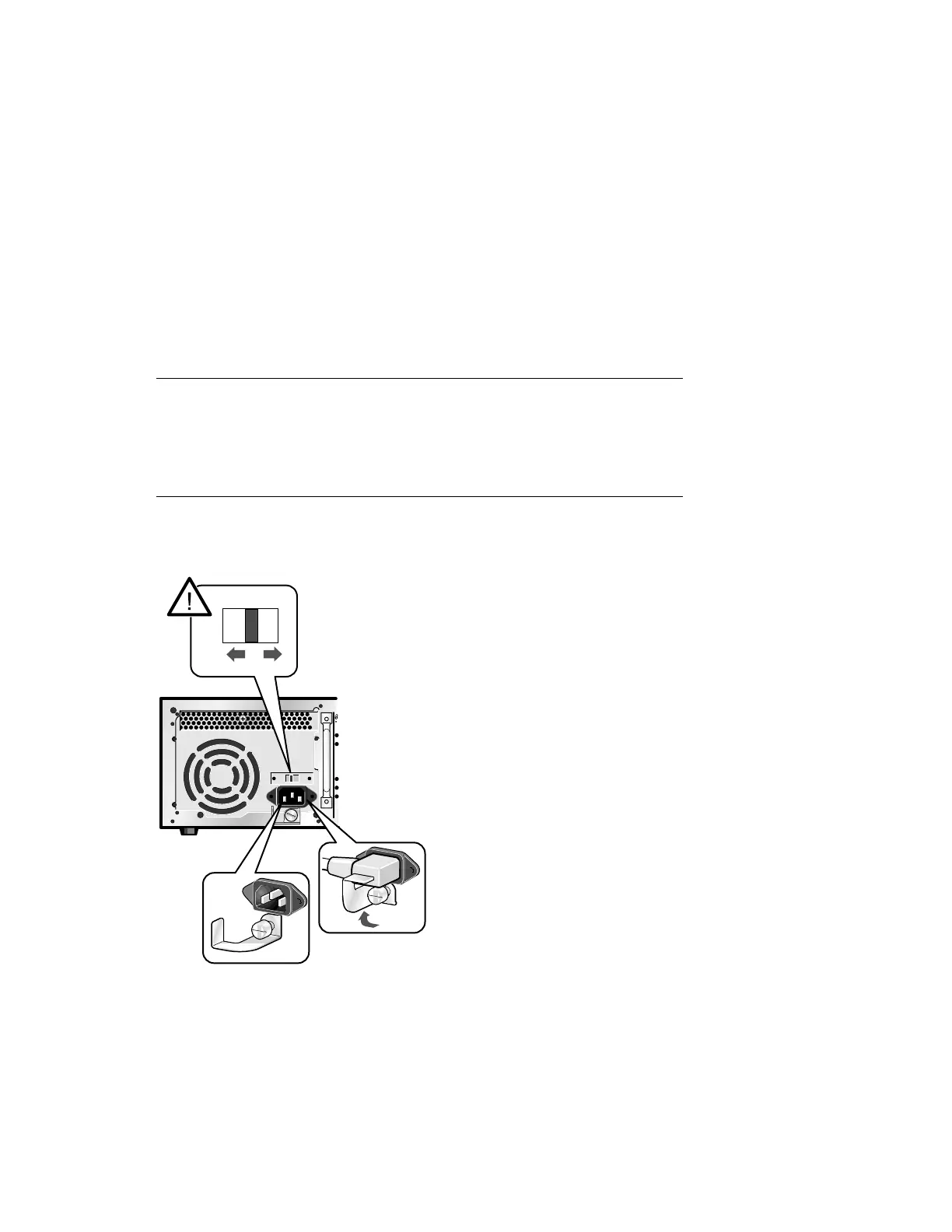

Figure A–1 Removing Power from the System
115V
230V
PK1047a
1.
Turn off the system and all external peripheral devices.
2.
Unplug the system from the wall outlet.
3.
Wait at least 15 seconds, to allow time for the power supply capacitors to
fully discharge.
4. Wait 2 minutes after power is removed before touching any module.
